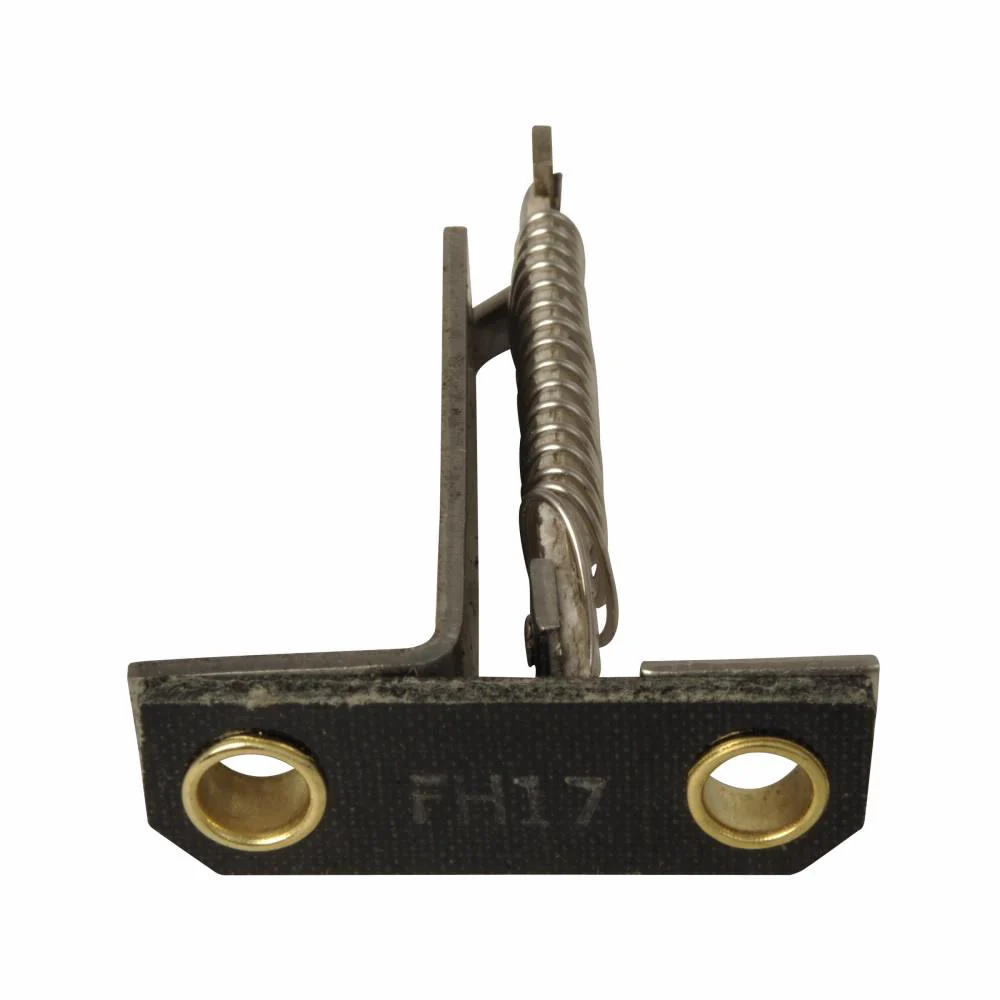

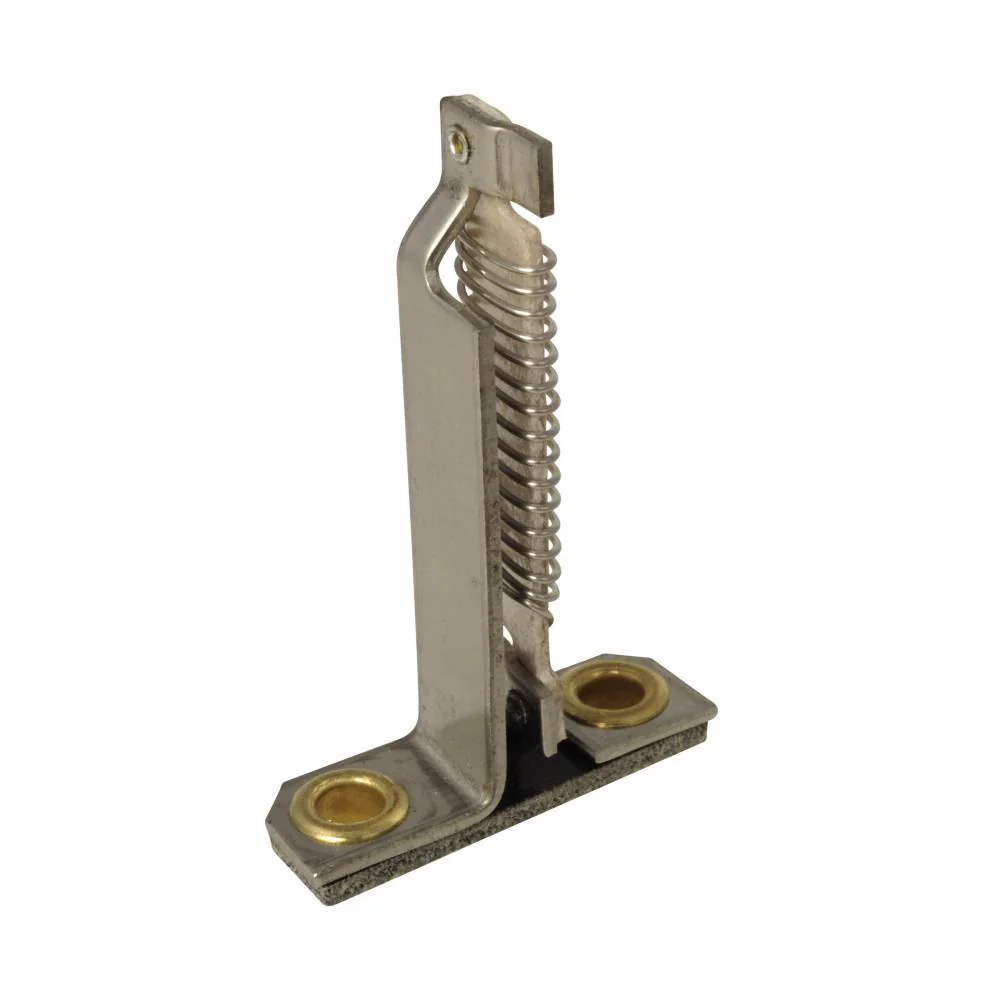

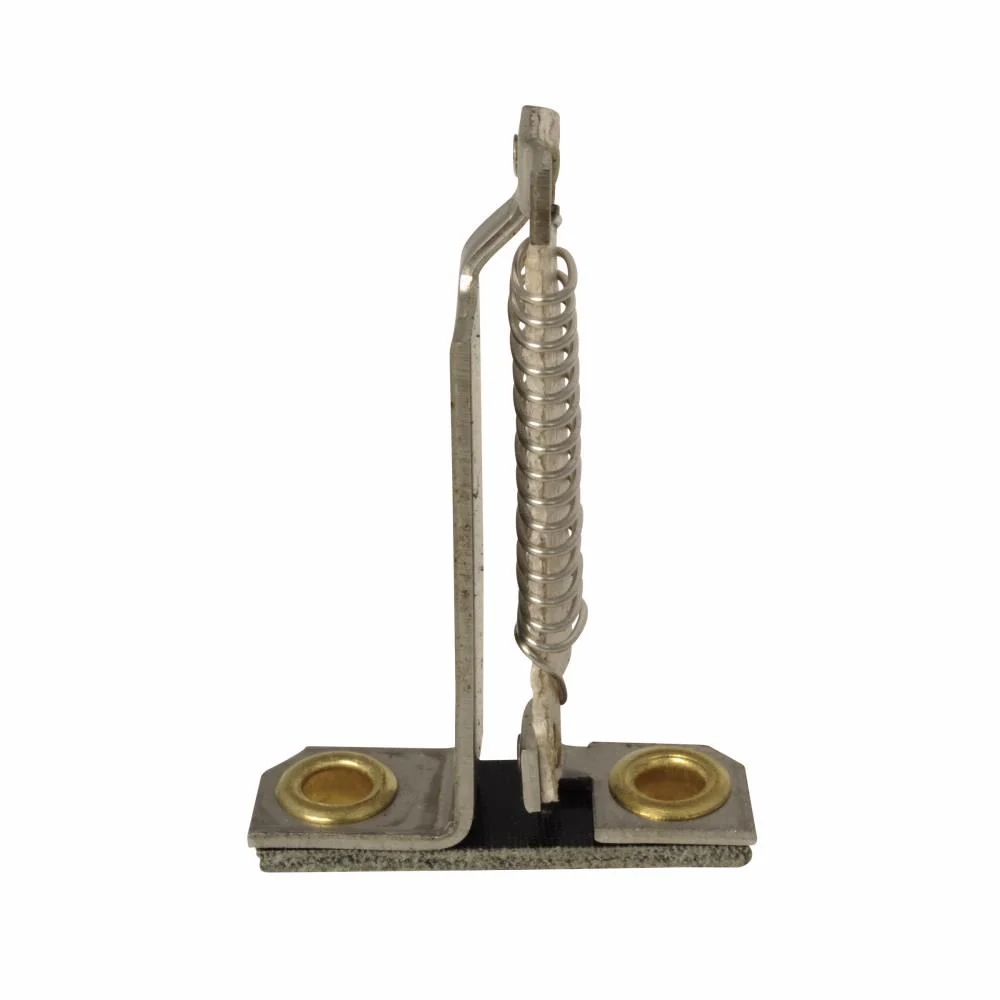

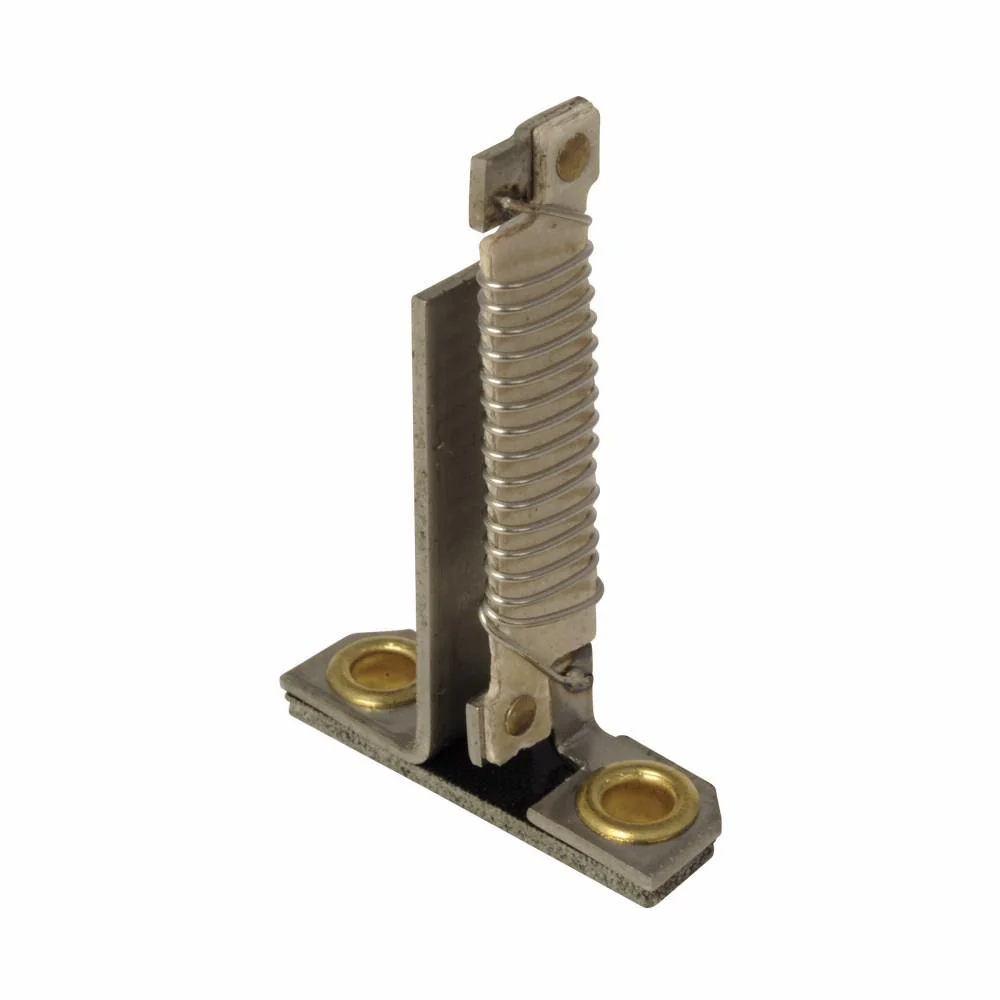

FH17 - Eaton - 1.25 Amp Overload Relay Heater

FH17 - Eaton Cutler-Hammer Overload Relay Heater

Specifications:

• Product Name: A200/B100 Heater
• UPC: 786678629384
• Certifications: CSA Certified, UL Listed
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Design: NEMA
• Full Load Current Range: Ambient 1.01-1.11, 1.17-1.28A, Non-Comp .94-1.03, 1.14-1.25A
• Overload Relay: Type A and B
• Special Features: Used with Starter Sizes 0,1, and 2
• Type: A200/B100 Heater
• Used With: Used with Starter Sizes 0,1, and 2
• Trip Type: Thermal and Fast Trip
• Authentic Eaton/Cutler-Hammer Product
