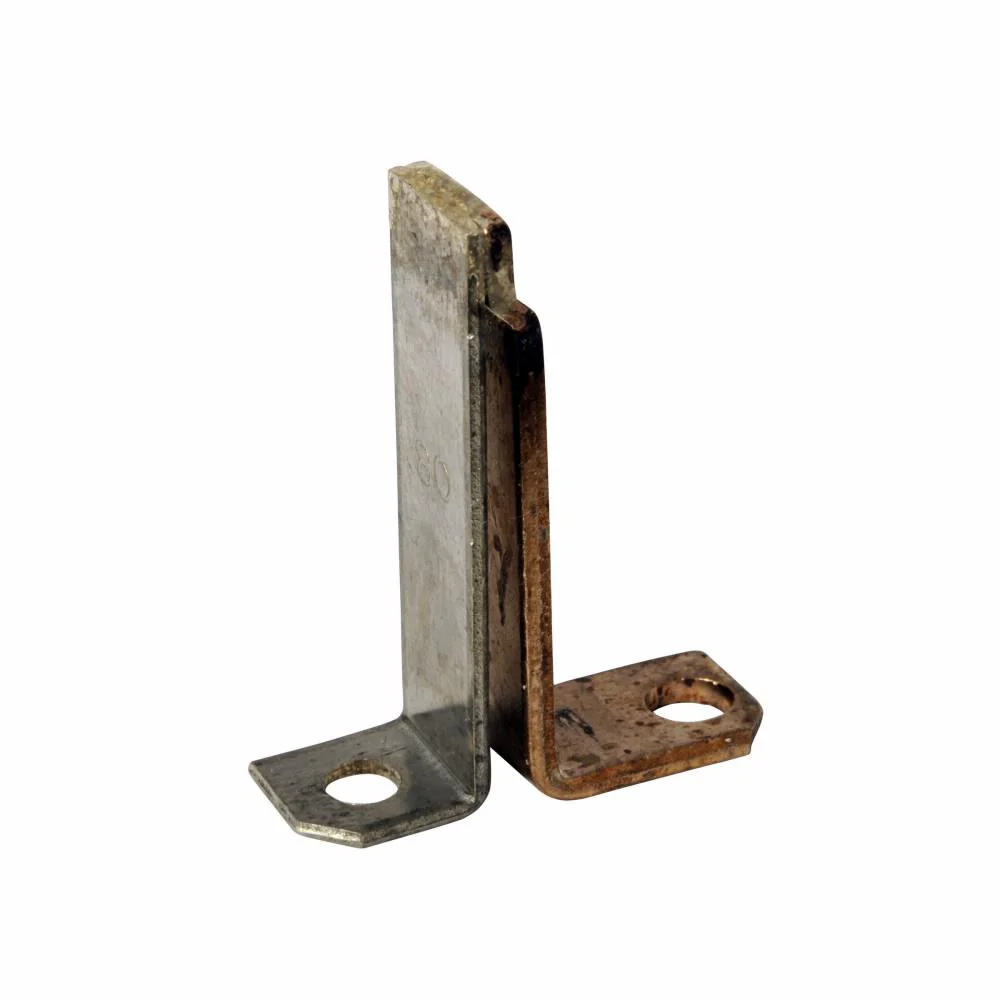

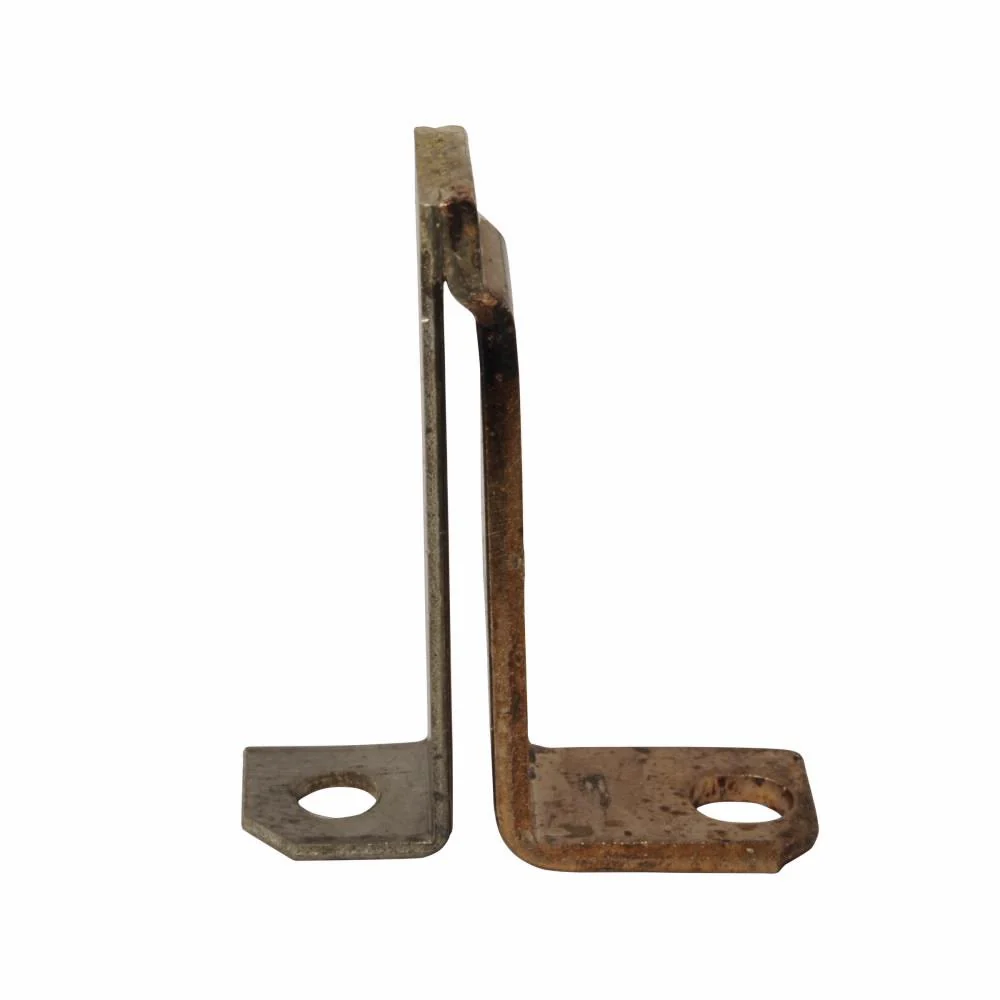

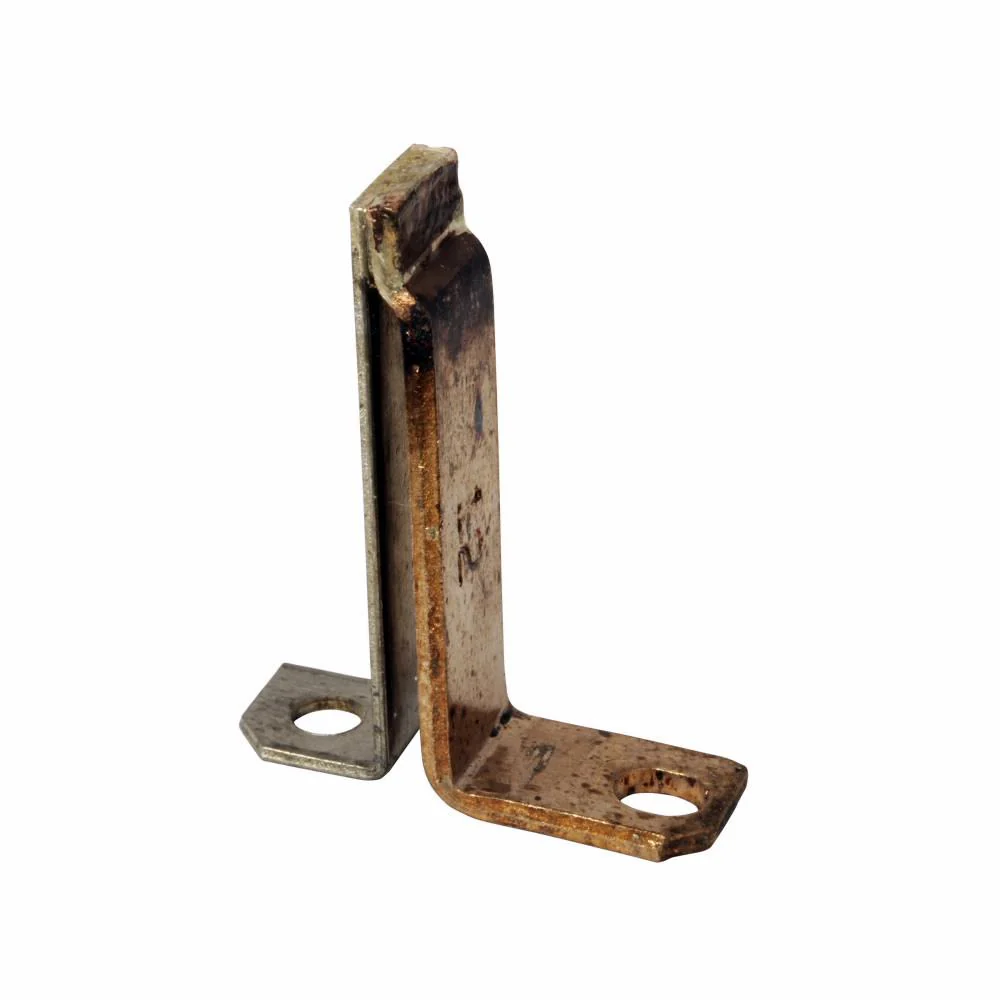

FH53 - Eaton - 28.5 Amp Overload Relay Heater

FH53 - Eaton Cutler-Hammer Overload Relay Heater

Cutler Hammer Thermal and fast trip heater element is compatible with safety and emergency exit devices. It has a current rating of 26.5 To 28.5 Ampere Ambient 28.8-31.4 33.4-36.4A Non-Comp 26.7-29.1 31.5-34.5A overload non-compensating enclosed starters.

Specifications:

• Product Name: A200/B100 Heater
• UPC: 786678670454
• Certifications: CSA Certified, UL Listed
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Design: NEMA
• Full Load Current Range: Ambient 28.8-31.4, 33.4-36.4A, Non-Comp 26.7-29.1, 31.5-34.5A
• Overload Relay: Type A and B
• Special Features: Used with Starter Size 2
• Type: A200/B100 Heater
• Used With: Used with Starter Size 2
• Trip Type: Thermal and Fast Trip
• Authentic Eaton/Cutler-Hammer Product
