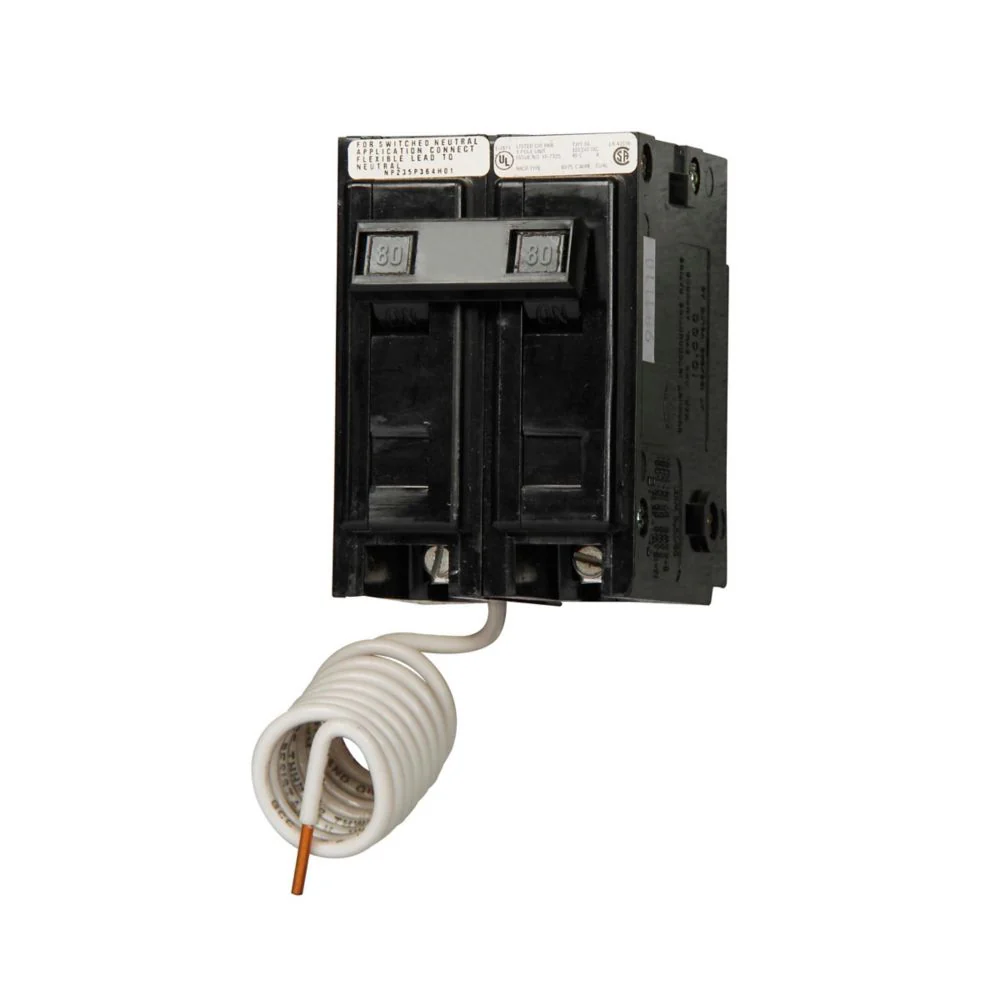

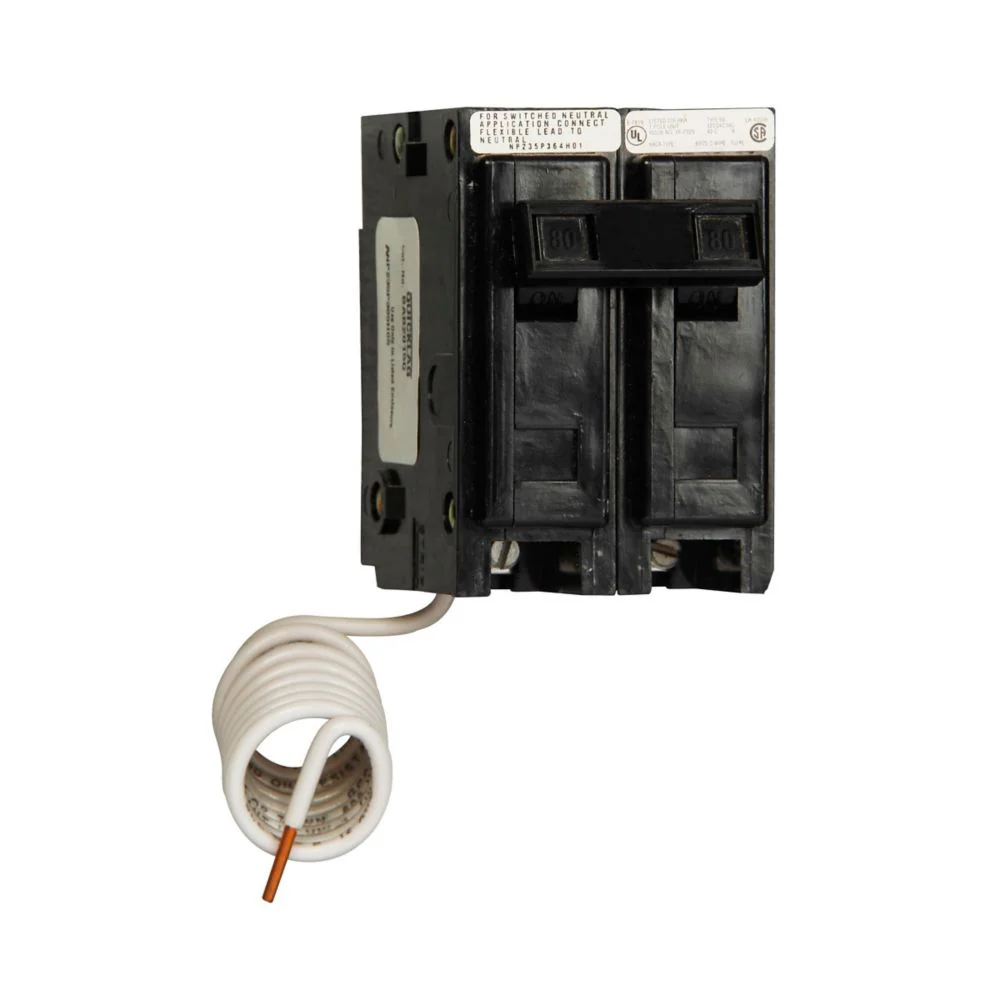

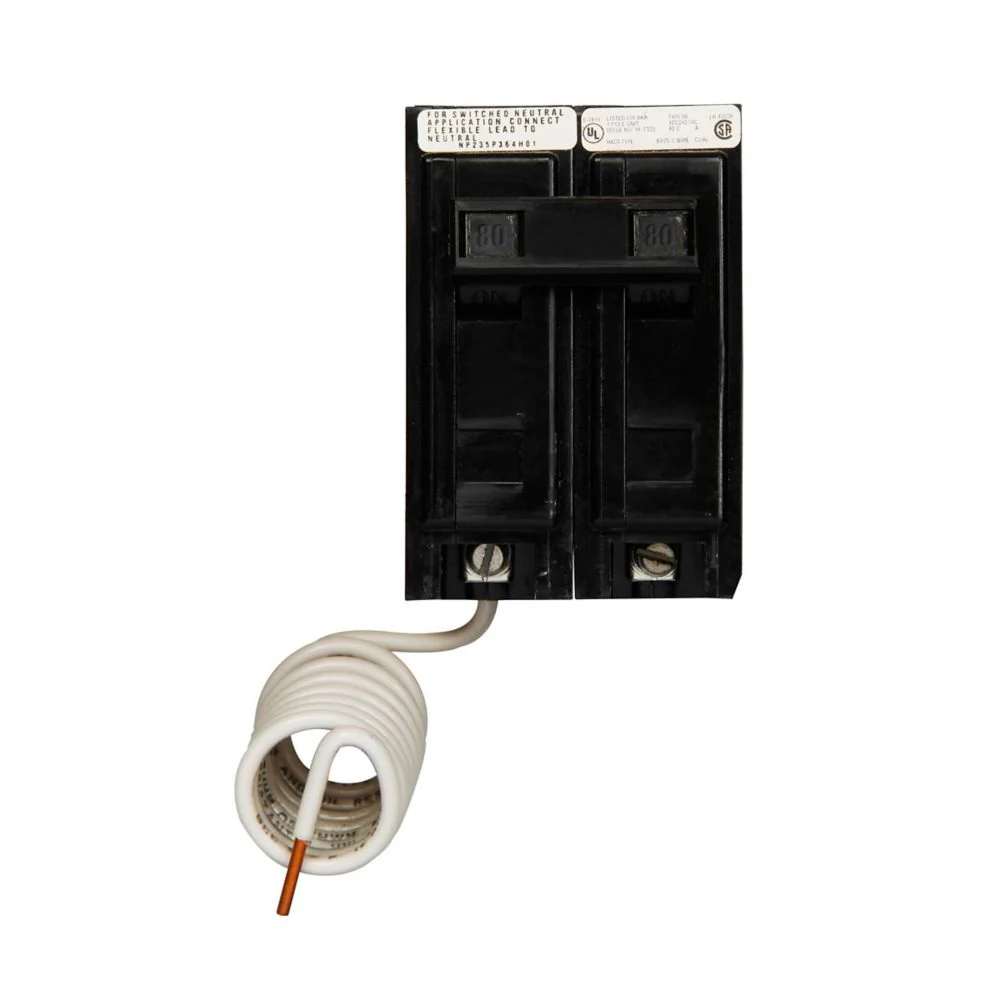

BAB2080S - Eaton - 80 Amp Shunt Trip Circuit Breaker

BAB2080S - Cutler-Hammer Bolt-On Molded Case Circuit Breaker

This Eaton Cutler-Hammer Shunt Trip Breaker is a compact BAB-type double-pole thermomagnetic circuit breaker rated at 80 amps at 40 degrees and 240 Vac with a tripping current of 10,000 kiloamps. 240 Vac 5,000 Amps 24 to 48 Vdc 3,800 Amps 62.5 Vdc 120/208/240 Vac with Shunt Switch.

Specifications:

• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Product Length: 3.9 in
• Product Height: 4.8 in
• Product Width: 2.2 in
• Product Weight: 1 lb
• Certifications: UL Listed , CSA Certified
• Mounting: Bolt-on
• Interrupt Rating: 10 kAIC
• Shunt Trip: 120-240V
• Voltage Rating: 240V
• Amperage Rating: 80A
• Trip Type: Non-interchangeable
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 4.8" x 2.2" x 3.9"
