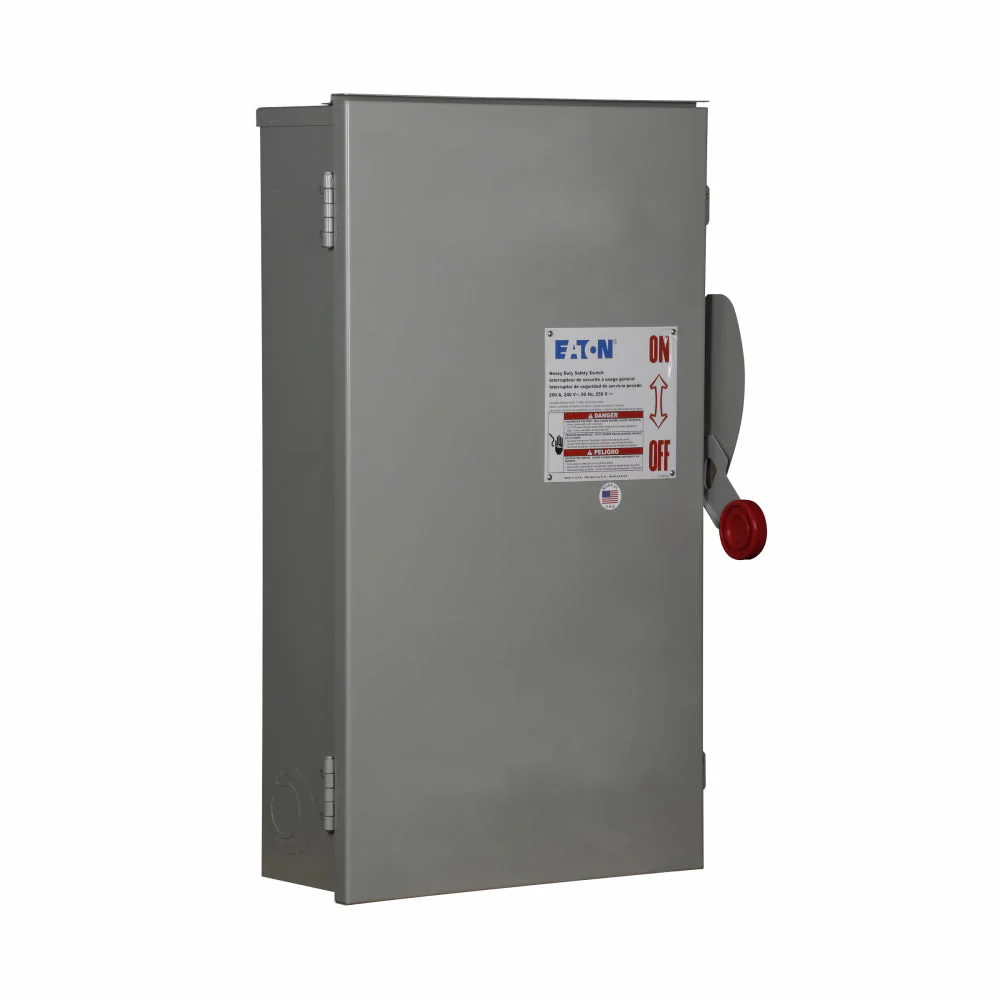

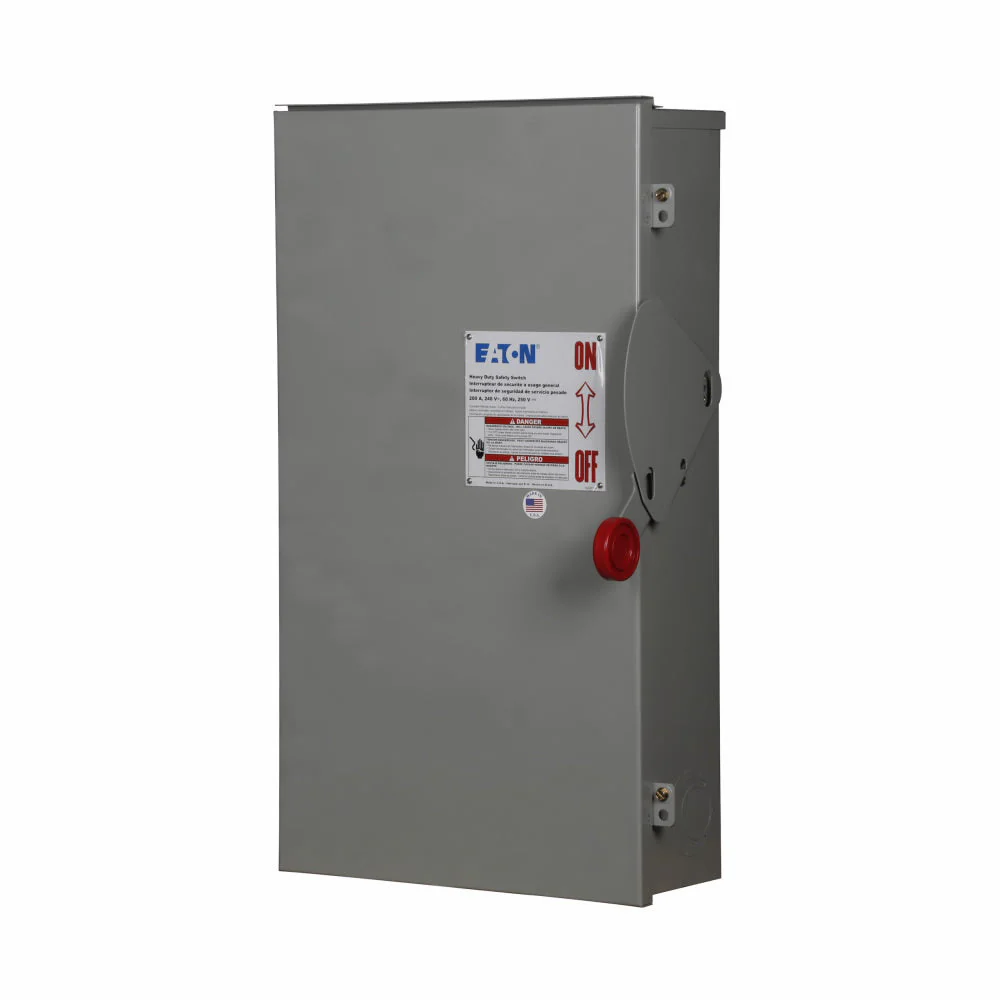

DH224NRK - Eaton - Disconnect and Safety Switch
Overview
Product Specifications - DH224NRK - Eaton Disconnect and Safety Switch
-
Part Number:
DH224NRK -
Manufacturer:
-
Family:
DH Series -
Pole:
2 -
Amp
100 -
Volt:
240 -
Phase:
1
-
Category:
-
Type:
DH -
AIC Ratings:
100kA@240V -
Configuration:
Single -
Nema Rating:
3R -
Switch Style:
Fusible -
Suit Fuse:
R
Dimensions
-
Dimensions (HxWxD):
6.14" x 15.91" x 27.6"
-
Weight:
37 lbs
Standards
Product Description - DH224NRK - Eaton Disconnect and Safety Switch
Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, line/load labels, 2 blade, 200 A, NEMA 3R, Cartridge, Three-wire, 240 V, Max Hp: 15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc), #6-250 kcmil Cu/Al.
Documentation
Select Condition
From $126.90
Original: $422.99
-70%DH224NRK - Eaton - Disconnect and Safety Switch—
$422.99
$126.90Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - DH224NRK - Eaton Disconnect and Safety Switch
-
Part Number:
DH224NRK -
Manufacturer:
-
Family:
DH Series -
Pole:
2 -
Amp
100 -
Volt:
240 -
Phase:
1
-
Category:
-
Type:
DH -
AIC Ratings:
100kA@240V -
Configuration:
Single -
Nema Rating:
3R -
Switch Style:
Fusible -
Suit Fuse:
R
Dimensions
-
Dimensions (HxWxD):
6.14" x 15.91" x 27.6"
-
Weight:
37 lbs
Standards
Product Description - DH224NRK - Eaton Disconnect and Safety Switch
Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, line/load labels, 2 blade, 200 A, NEMA 3R, Cartridge, Three-wire, 240 V, Max Hp: 15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc), #6-250 kcmil Cu/Al.
