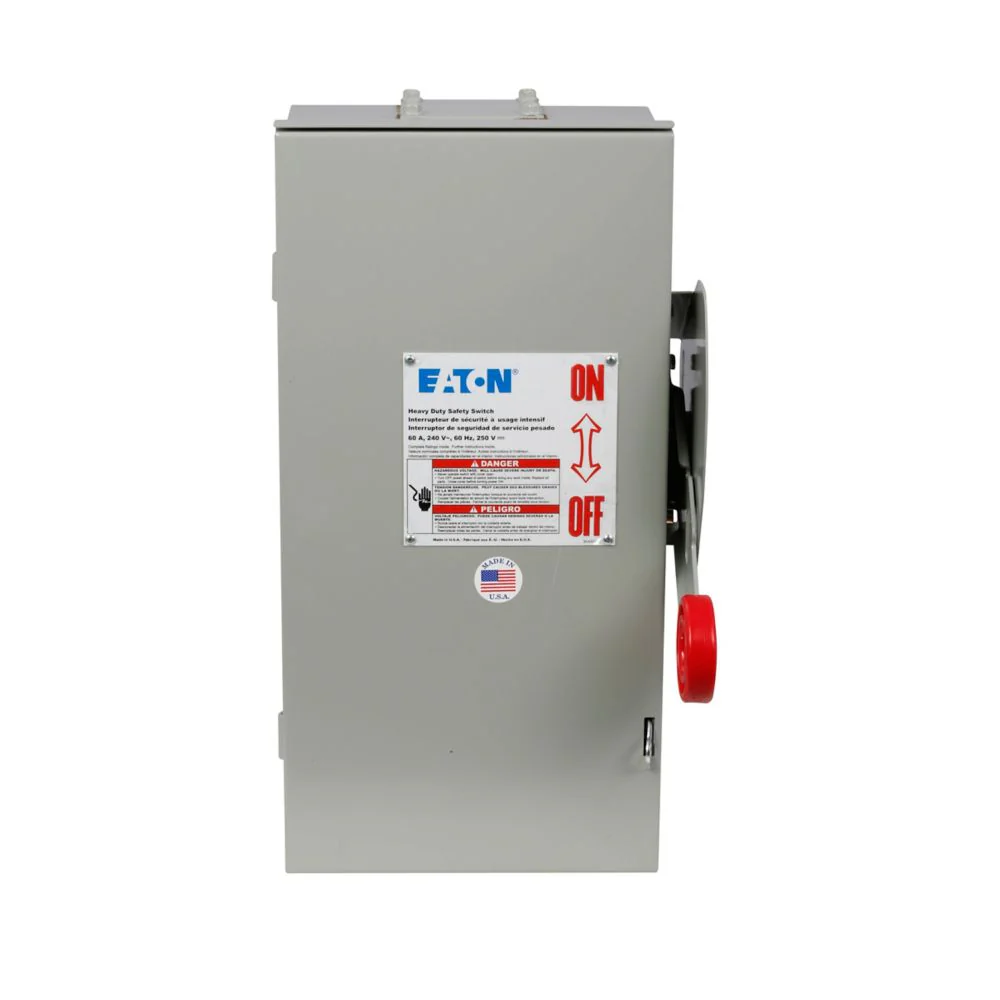

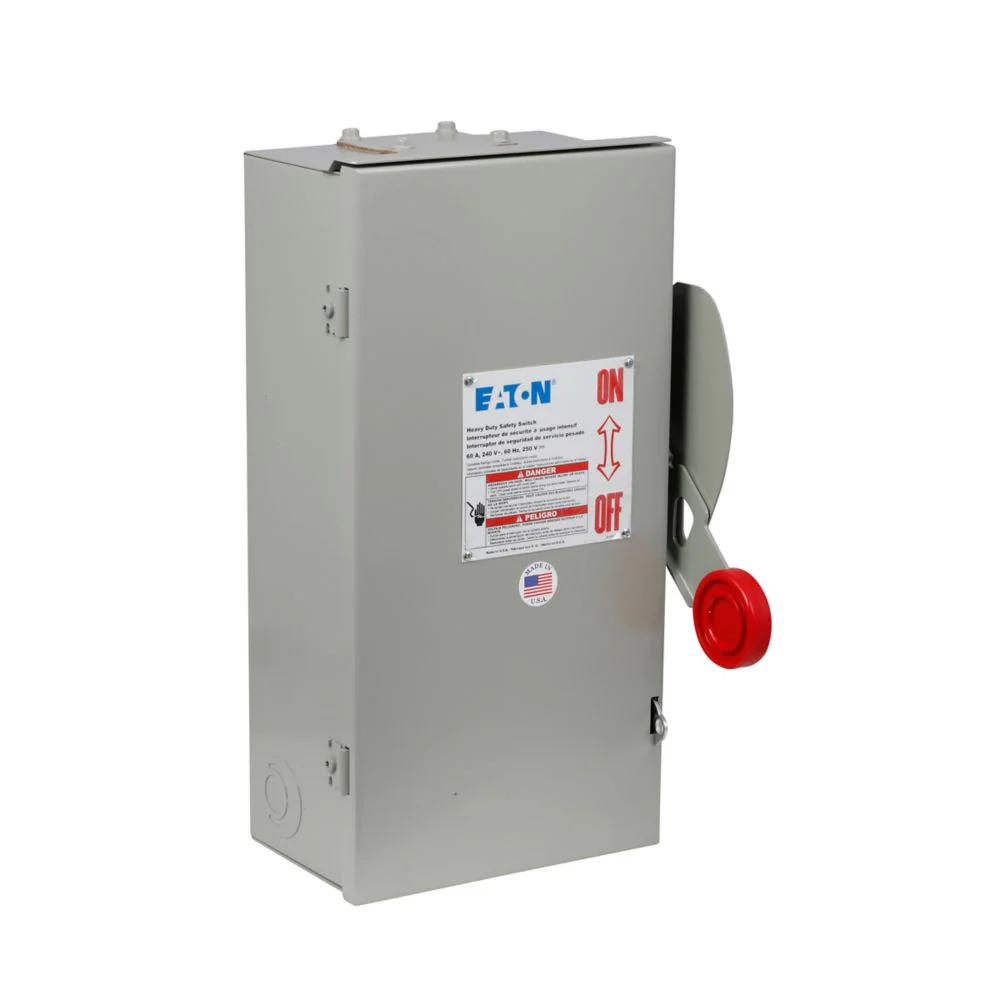

DH222NRK - Eaton - Disconnect
Overview
Product Specifications - DH222NRK - Eaton Disconnect
-
Part Number:
DH222NRK -
Manufacturer:
-
Family:
DH Series -
Pole:
2 -
Amp
60 -
Volt:
3 -
Phase:
1
-
Category:
-
Type:
DH -
AIC Ratings:
100kA@240V
Dimensions
-
Dimensions (HxWxD):
16.5 x 8.31 x 9.12 -
Weight:
19 lb
Standards
Product Description - DH222NRK - Eaton Disconnect
Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 3R, Painted galvanized steel, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#2 Cu/Al
