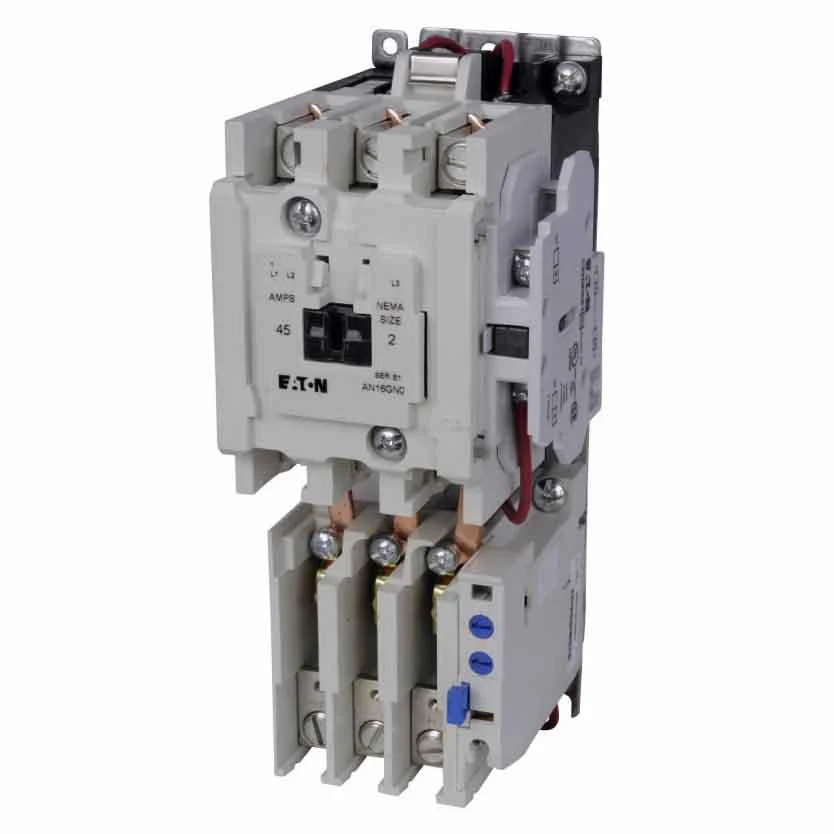

AN16GN0CB - Eaton - Electric Motor Starter
Overview
Product Specifications - AN16GN0CB - Eaton Electric Motor Starter
-
Part Number:
AN16GN0CB -
Manufacturer:
-
Family:
Freedom Series -
Pole:
3 -
Amp
45 -
Volt:
600 -
Coil Voltage Min:
440 -
Coil Voltage Max:
480 -
Phase:
3
-
Category:
-
Type:
AN16 -
Nema Rating:
2
Dimensions
-
Dimensions (HxWxD):
3.31" x 4.38" x 4.94" -
Weight:
4.35 lbs
Standards
Product Description - AN16GN0CB - Eaton Electric Motor Starter
Eaton Freedom NEMA motor control starter, Non-Reversing Reset Overload Relay Starter, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 480V/60 Hz or 440V/50 Hz coil voltage, 45A, Size 2.
