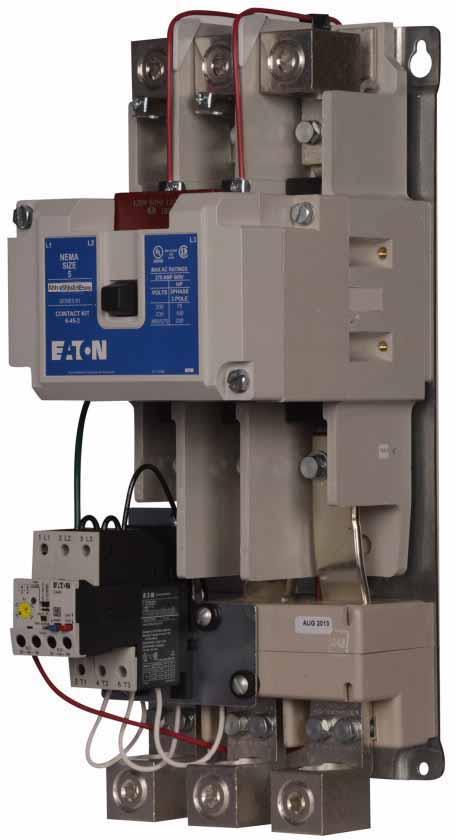

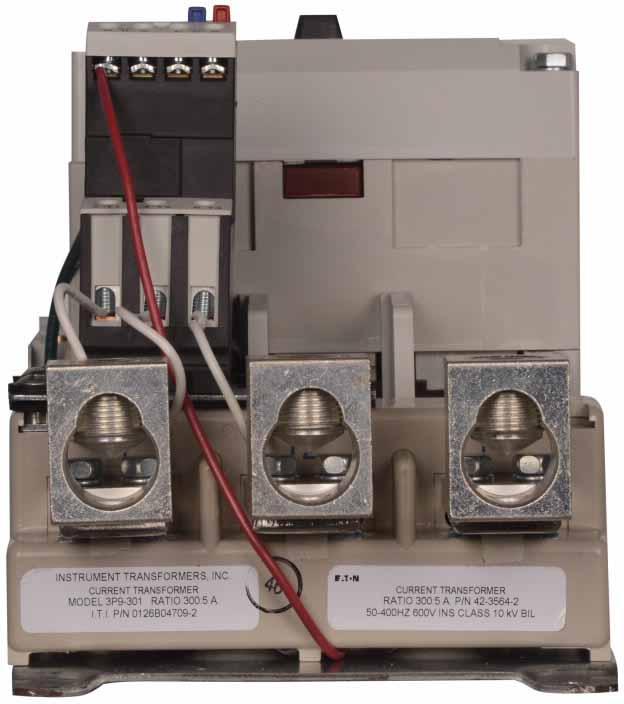

AN19SN0A5E300 - Eaton - Electric Motor Starter
Overview
Product Specifications - AN19SN0A5E300 - Eaton Electric Motor Starter
-
Part Number:
AN19SN0A5E300 -
Manufacturer:
-
Family:
Freedom Series -
Pole:
3 -
Amp
270 -
Volt:
600 -
Coil Voltage Min:
120 -
Coil Voltage Max:
120 -
Phase:
3
-
Category:
-
Type:
AN19 -
Nema Rating:
5
Dimensions
-
Dimensions (HxWxD):
17.81" x 7" x 8.08"
-
Weight:
34.3 lbs
Standards
Product Description - AN19SN0A5E300 - Eaton Electric Motor Starter
Eaton Freedom NEMA motor control starter,NEMA Non-reversing Freedom Series starter,With C440 EOLR Std Feature set,SEL Reset,SEL Class (10A,10,20,30),120V/60 Hz or 110V/50 Hz coil voltage,Horizontal mount,270A,60-300A fla range,Size 5.
Documentation
Select Condition
From $3,124.99
AN19SN0A5E300 - Eaton - Electric Motor Starter—
$3,124.99
