HMCPE070M2W - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - HMCPE070M2W - Eaton Molded Case Circuit Breakers
-
Part Number:
HMCPE070M2W -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
70 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HMCPE -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
15kA@400V
Dimensions
-
Dimensions (HxWxD):
5.5" x 3.0" x 2.99"
-
Weight:
3 lbs
Standards
Product Description - HMCPE070M2W - Eaton Molded Case Circuit Breakers

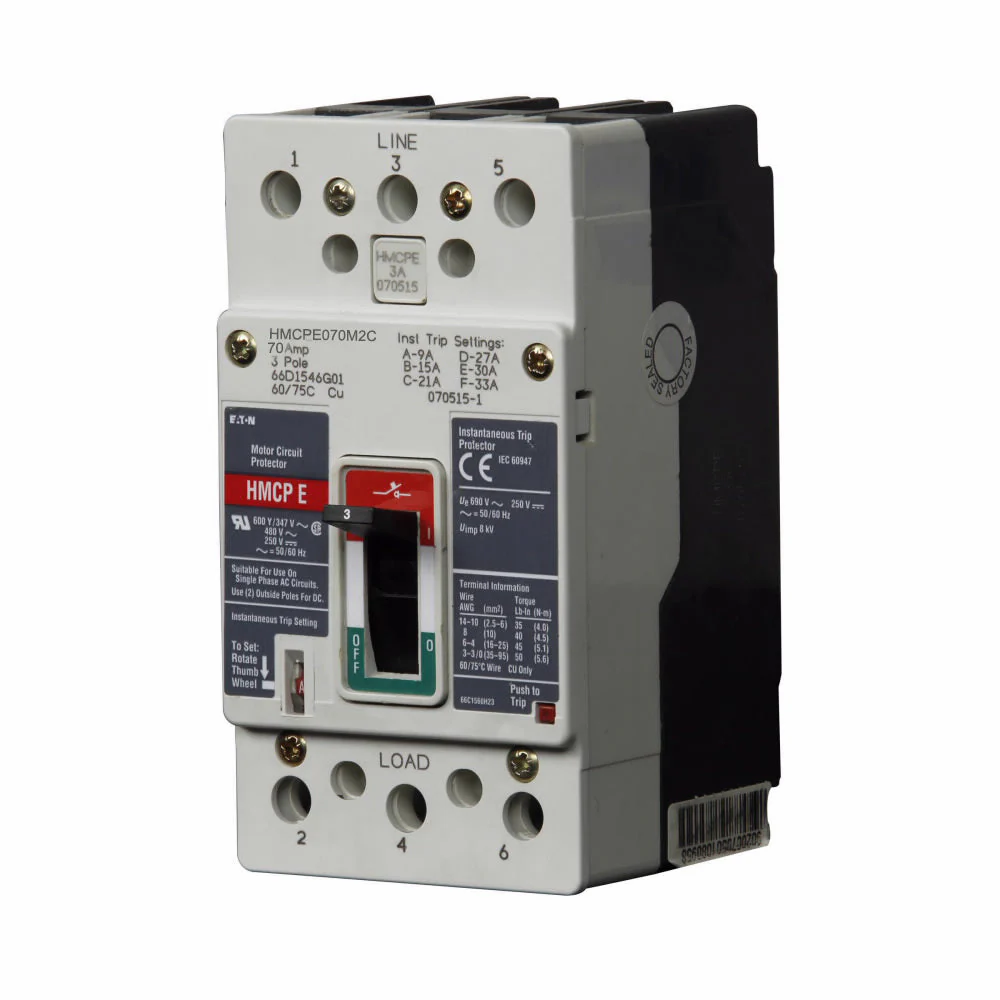

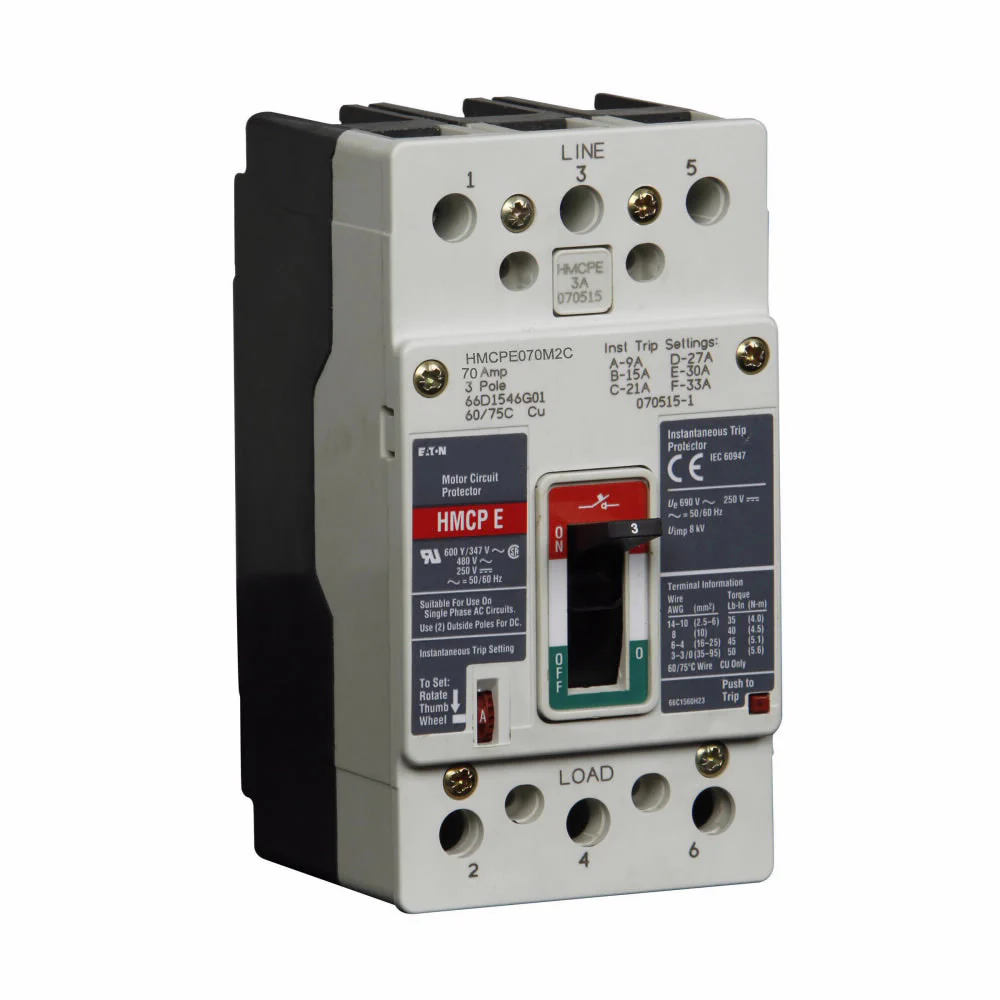

Cutler Hammer, Series G, type HMCPE, EG Frame, 3P, 3PH, 70A, 480V, 600Y/347Vac, 40CB0C, feed-thru, complete with non-interchangeable trip with I - Instantaneous protection only, non-aluminum line & load side lug terminals, MCP, motor circuit protector, magnetic range 210-770A, motor FLA 16.1-60.9A, magnetic only.
