JDB3250 - Eaton - Molded Case Circuit Breaker

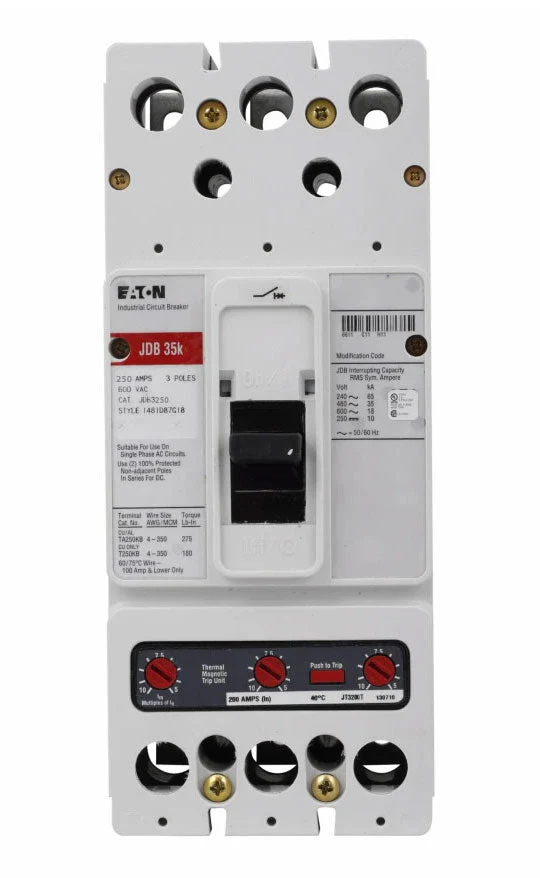

Product image 1
Product image 2

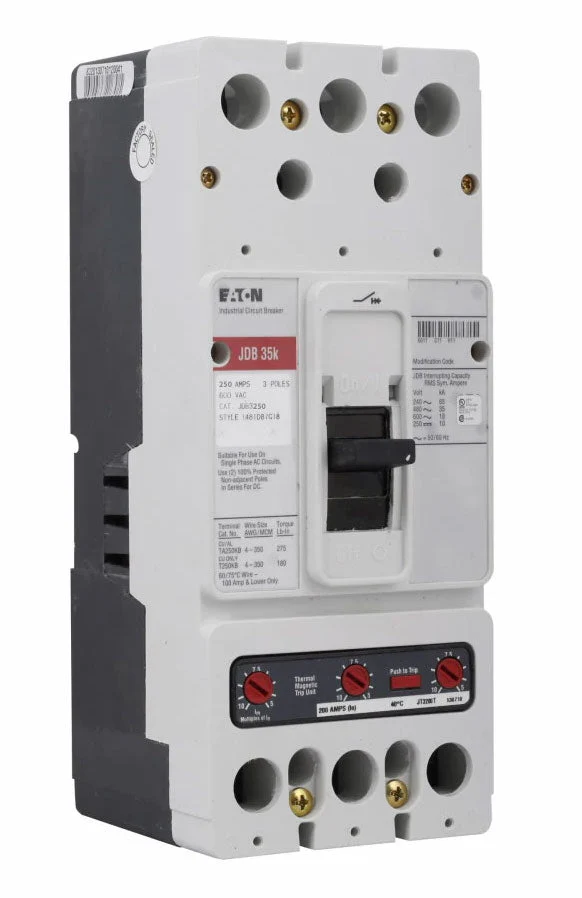

Product image 3

JDB3250 - Eaton - Molded Case Circuit Breaker

Overview

Product Specifications - JDB3250 - Eaton Molded Case Circuit Breakers

  • Part Number:

    JDB3250

  • Manufacturer:

    Eaton Cutler-Hammer

  • Family:

    Series C

  • Pole:

    3

  • Amp

    250

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    JDB

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

  • Frame Type:

    J Frame

Dimensions

  • Dimensions (HxWxD):

    4.13" x 4.13" x 4.06"

  • Weight:

    9.22 lbs

Standards

CSA Approved logo

Product Description - JDB3250 - Eaton Molded Case Circuit Breakers

Eaton Cutler Hammer, Series C, type JDB, 3P, 3PH, 250A, 600V, 35kA@480V, standard interrupting capacity, 40 degree C, feed-thru, suitable for reverse fed applications, complete with non-interchangeable, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications

PDF Icon Data Sheet

B

Select Condition
From $339.30

Original: $1,130.99

-70%
JDB3250 - Eaton - Molded Case Circuit Breaker—

$1,130.99

$339.30
