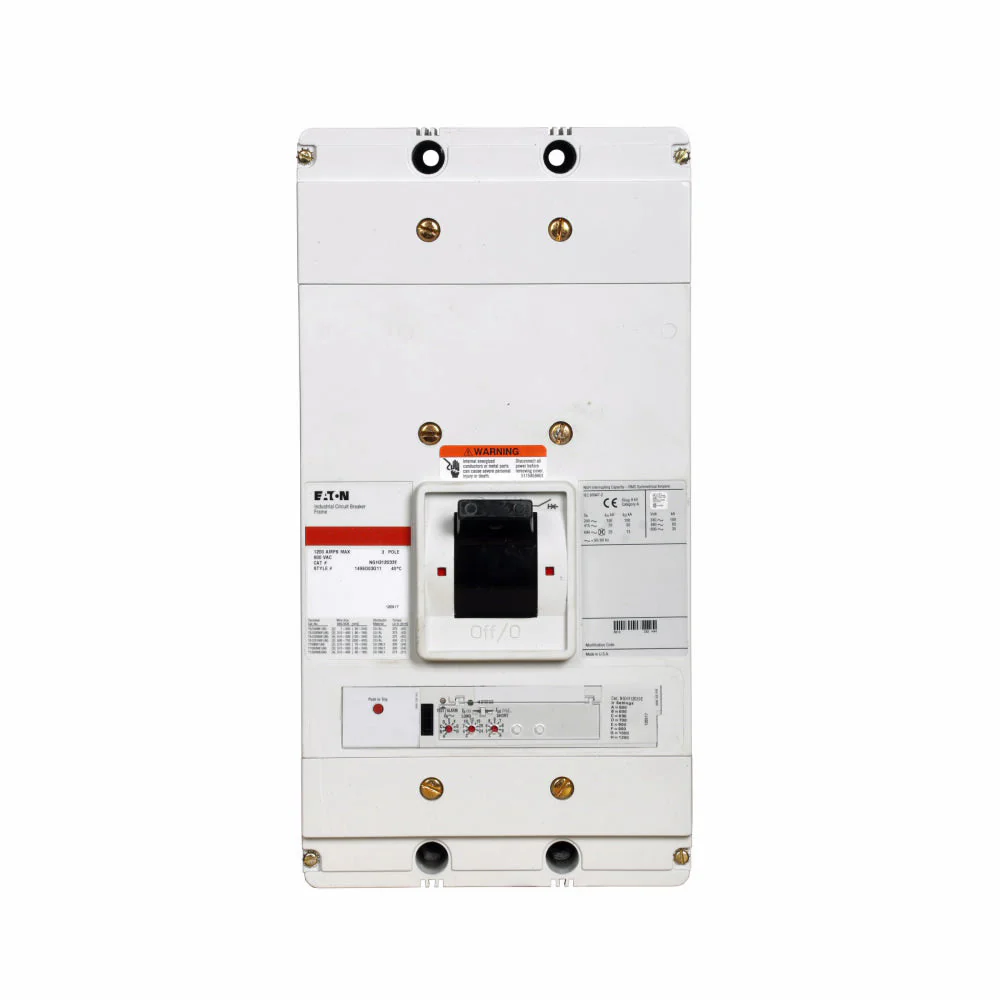

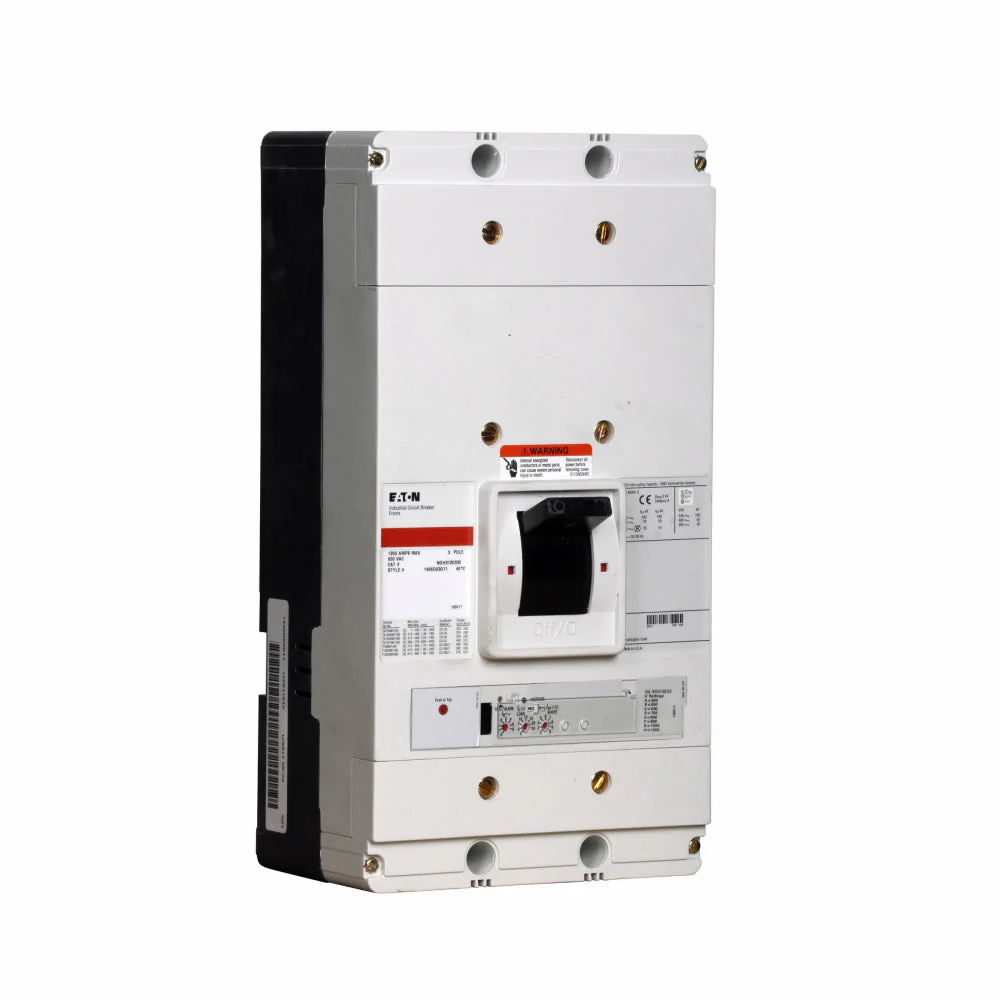

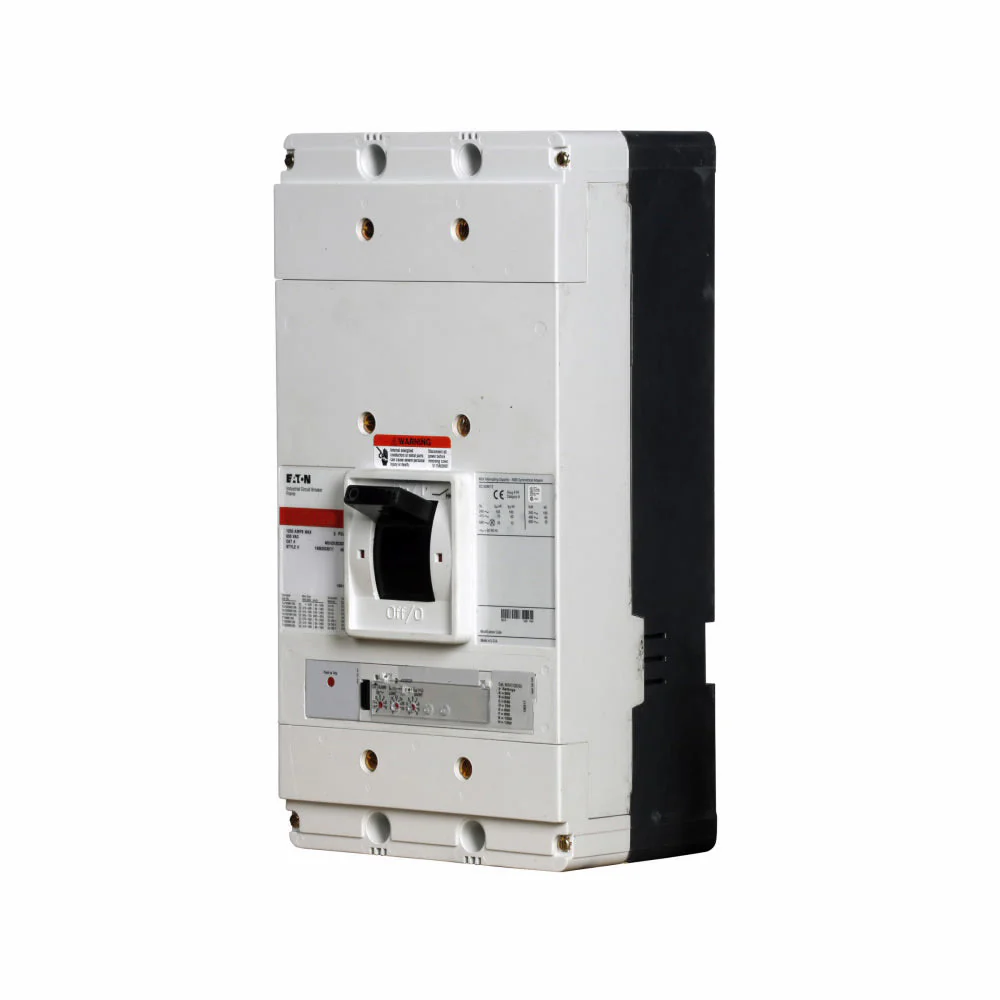

NGH312032EC - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - NGH312032EC - Eaton Molded Case Circuit Breakers
-
Part Number:
NGH312032EC -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp
1200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
NGH -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
9.0" x 48.0" x 6.0"
-
Weight:
48 lbs
Standards
Product Description - NGH312032EC - Eaton Molded Case Circuit Breakers
Cutler Hammer, Series G, type NGH, 3P, 3PH, 1200A, 600V, 100% rated, 65kA@480V, high interrupting capacity, bolt-on, complete with Digitrip RMS 310+ trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and imperial tapped line/load conductors, lugs not included, solid state electronic.
Documentation
Select Condition
From $2,293.20
Original: $7,643.99
-70%NGH312032EC - Eaton - Molded Case Circuit Breaker—
$7,643.99
$2,293.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - NGH312032EC - Eaton Molded Case Circuit Breakers
-
Part Number:
NGH312032EC -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp
1200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
NGH -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
9.0" x 48.0" x 6.0"
-
Weight:
48 lbs
Standards
Product Description - NGH312032EC - Eaton Molded Case Circuit Breakers
Cutler Hammer, Series G, type NGH, 3P, 3PH, 1200A, 600V, 100% rated, 65kA@480V, high interrupting capacity, bolt-on, complete with Digitrip RMS 310+ trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and imperial tapped line/load conductors, lugs not included, solid state electronic.
