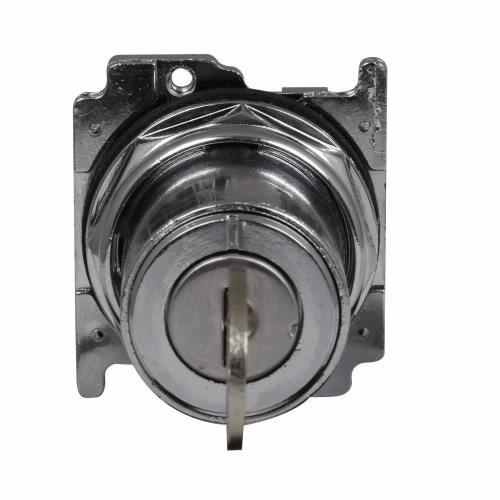

10250T15234 - Eaton - Selector Switch Operator

10250T15234 - Eaton Cutler-Hammer Selector Switch Operator

Eaton Push Button Operator compact easy to install The 10250T 30.5 mm Key remove center line features a zinc die cast construction with chrome-plated housing and mounting nut.

Specifications:

• Product Name: 30.5 mm, Heavy-Duty Selector Switch Operator
• UPC: 782113227559
• Product Length/Depth: 1.9 IN
• Product Height: 2.2 IN
• Product Width: 1.9 IN
• Product Weight: .4 LB
• Compliances: CE Marked
• Certifications: CSA Certified, UL Listed
• Product Category: Selector switch
• Throw Type: 60 Degree
• Number Of Positions: Three-position
• Series: 10250T
• Type: 30.5 mm, Heavy-Duty
• Rating: NEMA 3, 3R, 4, 4X, 12, 13
• Illumination: Non-illuminated
• Cam Code: Cam 3
• Key Removal Position: Center only
• Actuator: Key
• Authentic Eaton / Cutler Hammer Product
• Dimensions (H x W x L): 2.2" x 1.9" x 1.9"
