THQB2140ST1 - GE - 40 Amp Shunt Trip Circuit Breaker

THQB2140ST1 - GE Molded Case Circuit Breaker

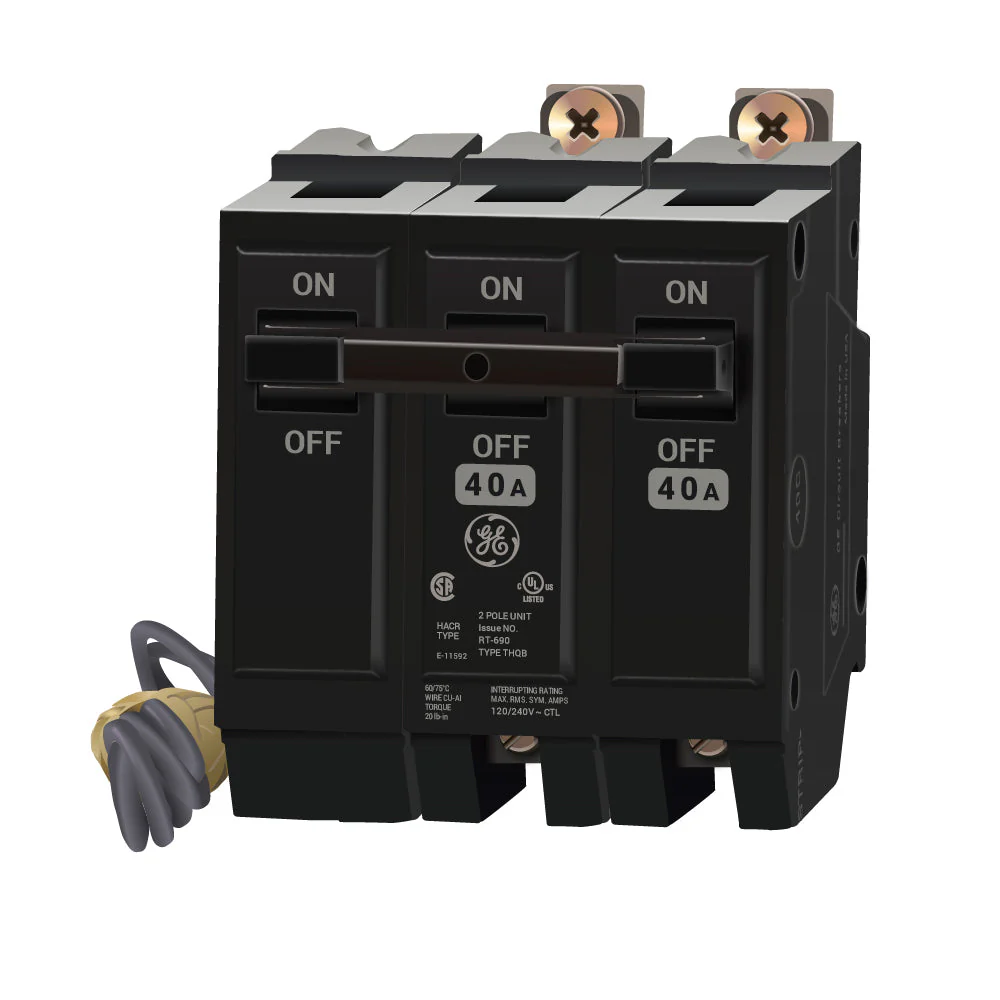

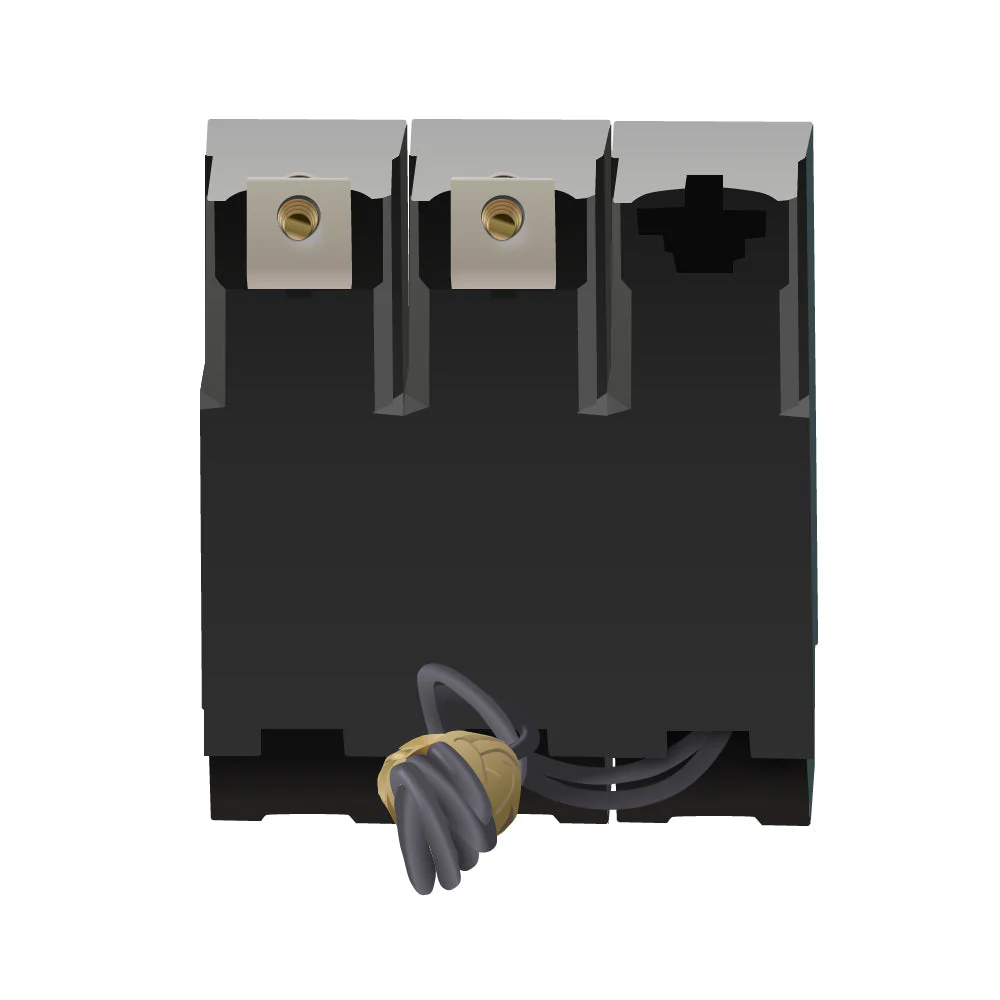

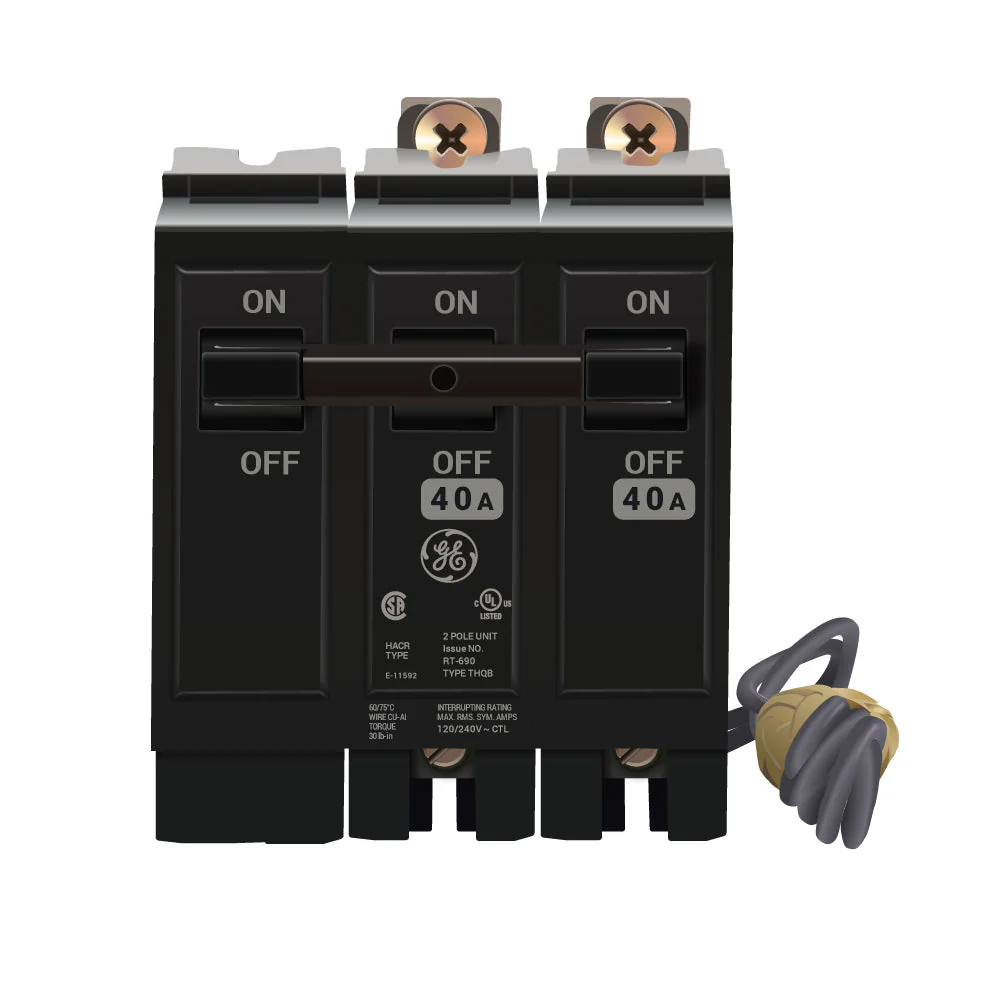

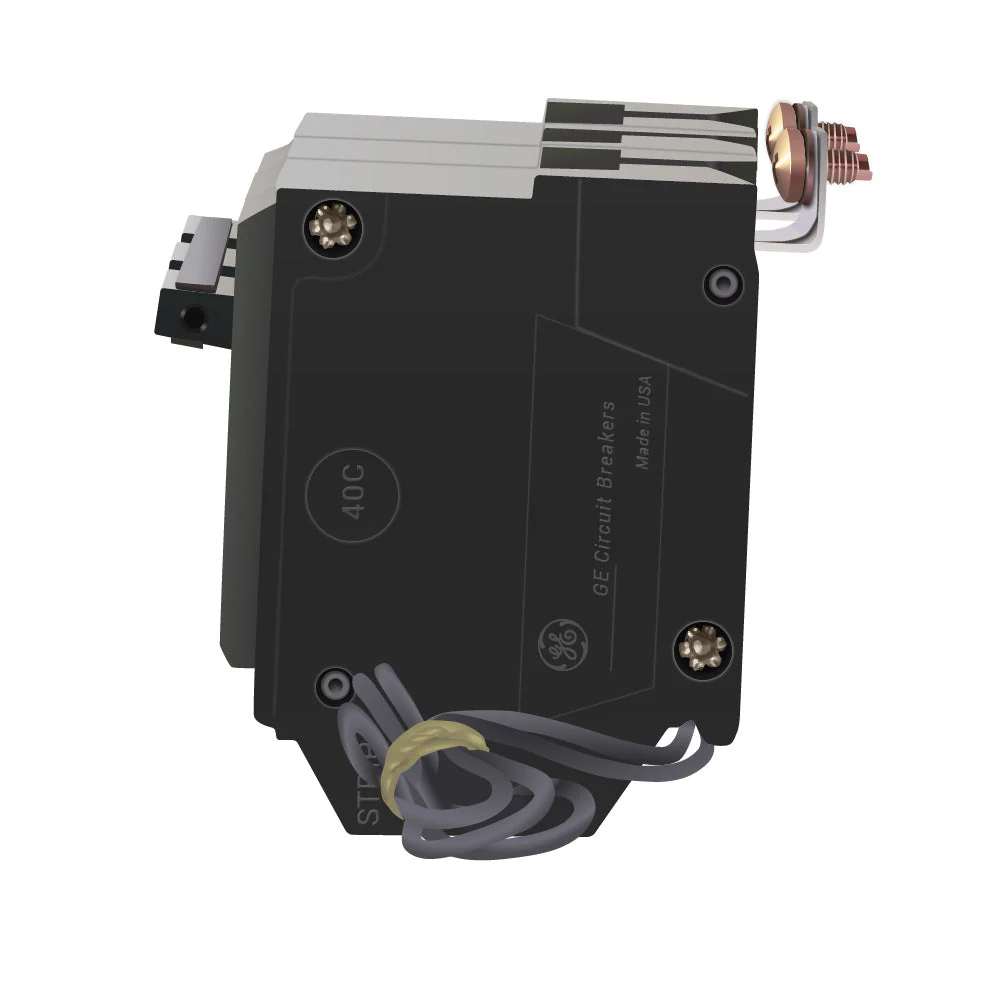

This General Electric (GE) THQB series double pole 40 ampere bolt-on molded case circuit breaker with shunt trip. It has a maximum voltage rating of 240V, trip type thermal magnetic common trip and standard interrupting rating of 10 kiloampere at 240V. It features an internal common trip with factory installed 120Vac shunt trip thermal magnetic (LI) Long-Time and Instantaneous trip functions and load side lug terminals.

Specifications:

• Manufacturer: General Electric
• Product Type: Circuit Breaker Shunt Trip
• Type: THQB
• No. of Poles: 2-Pole
• Phase: 1-Phase
• Voltage Rating: 240 Vac
• Amperage: 40 Ampere
• Interrupting Rating: 10 Kiloampere
• Wire Size: 14 To 8 Awg (Copper) 12 To 8 Awg (Aluminum)
• Application Heating Air Conditioning And Refrigeration
• With 120-240Vac Shunt Trip Common Trip
• Size: 2 Inch W X 2 3/8 Inch D X 3 9/32 Inch H
• Approval: Ul Listed
• Used On Al/Aq/Alc/Aqc/Spectra Series Panelboard
• Authentic General Electric Product
