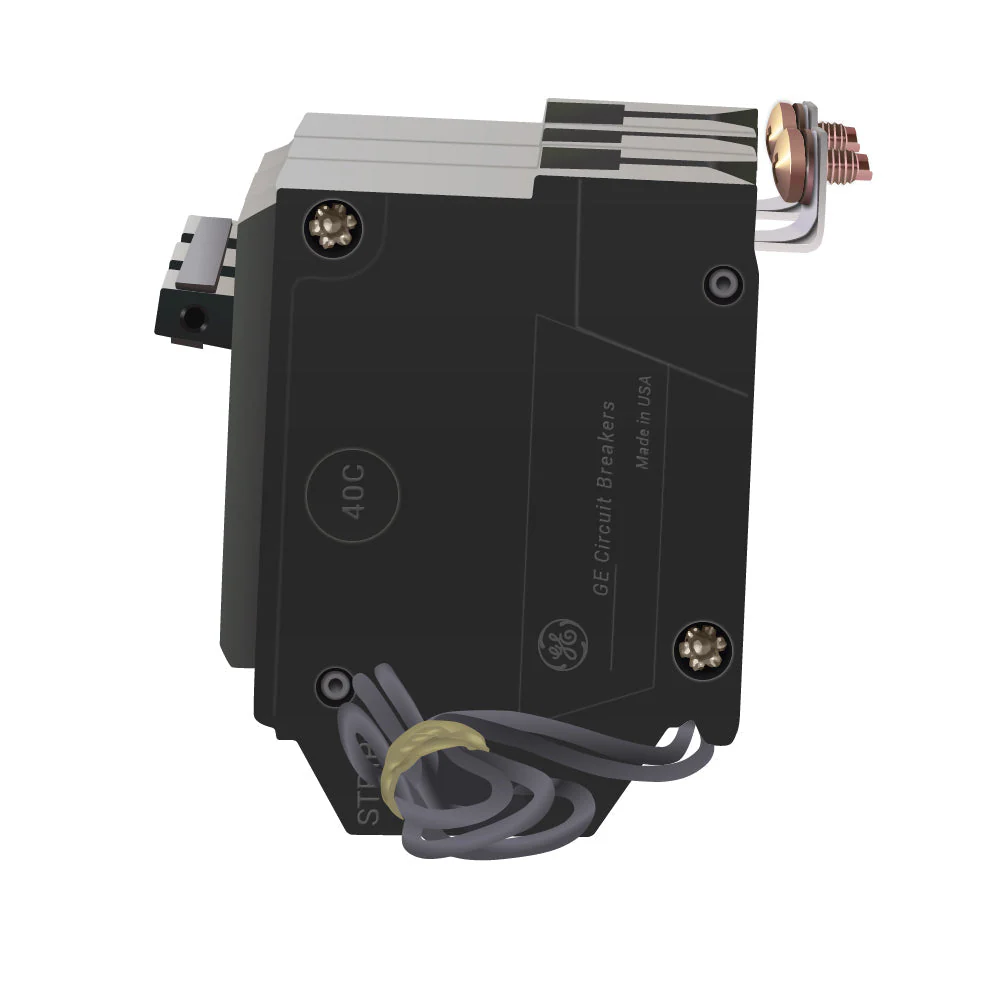

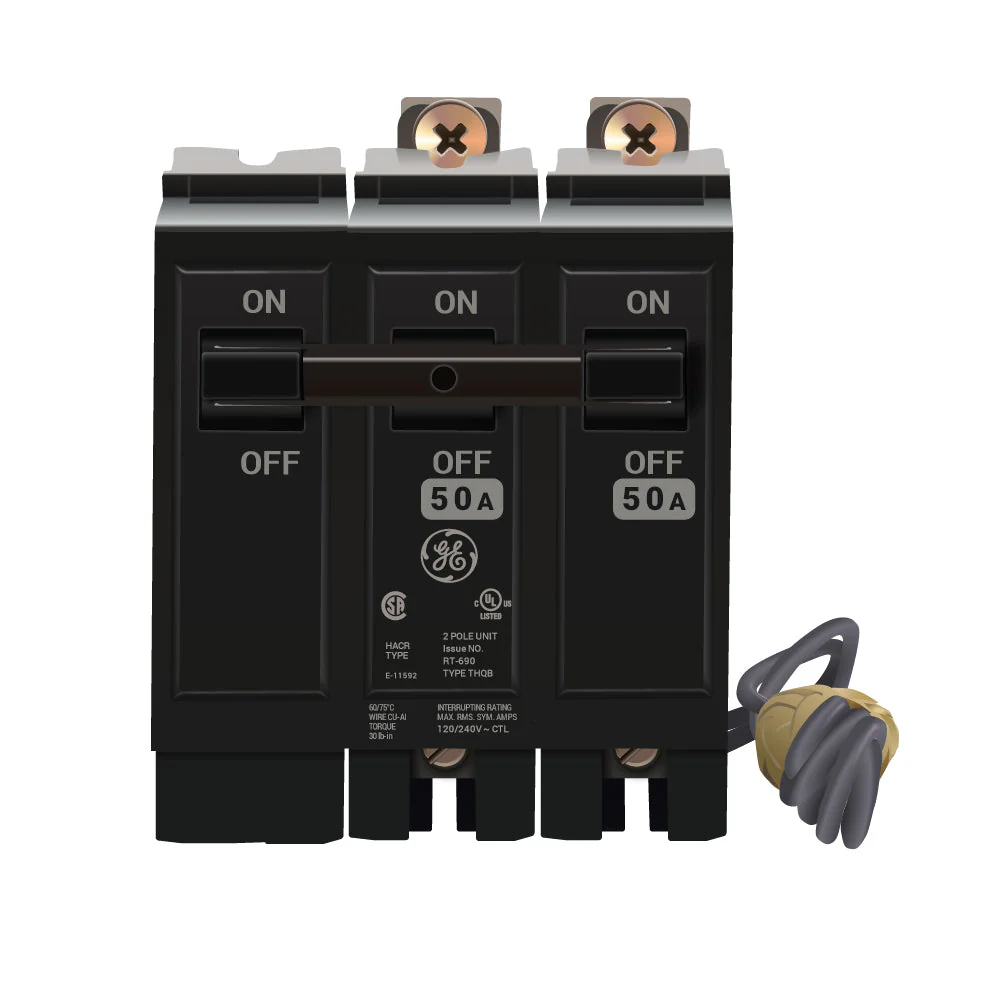

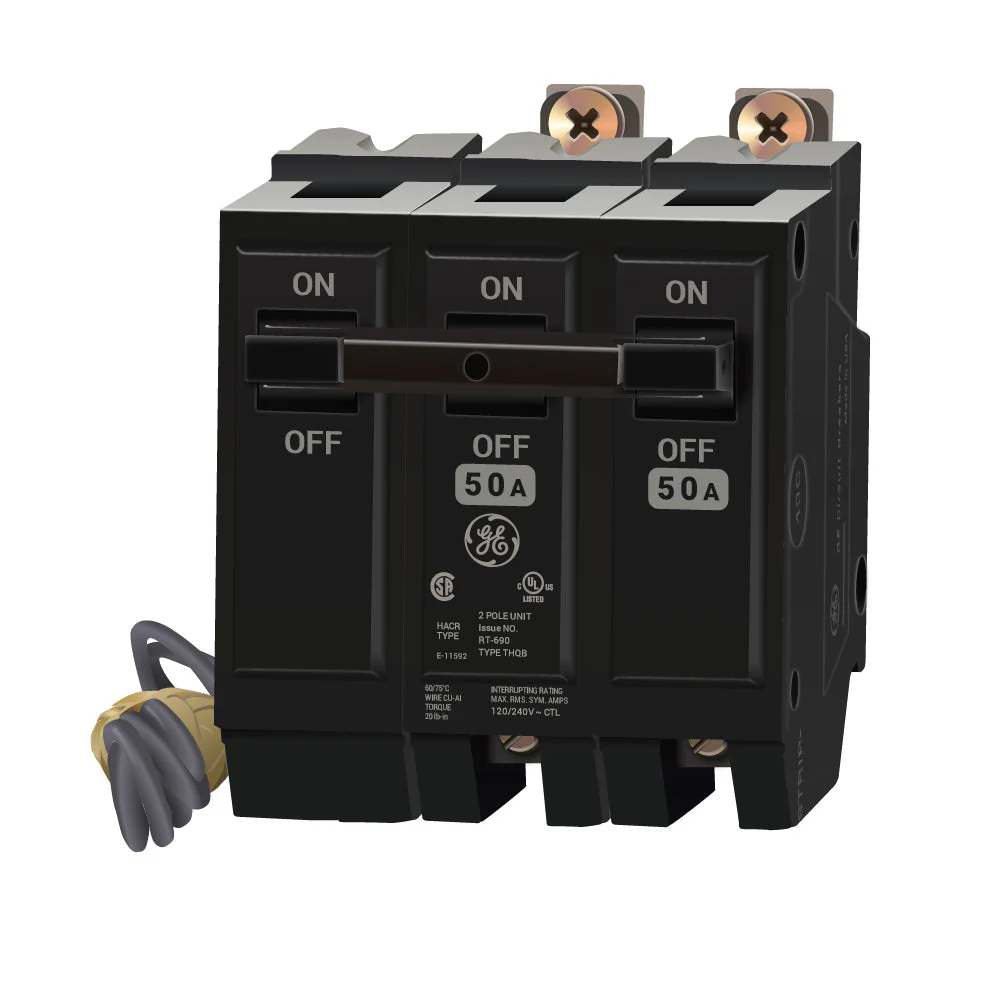

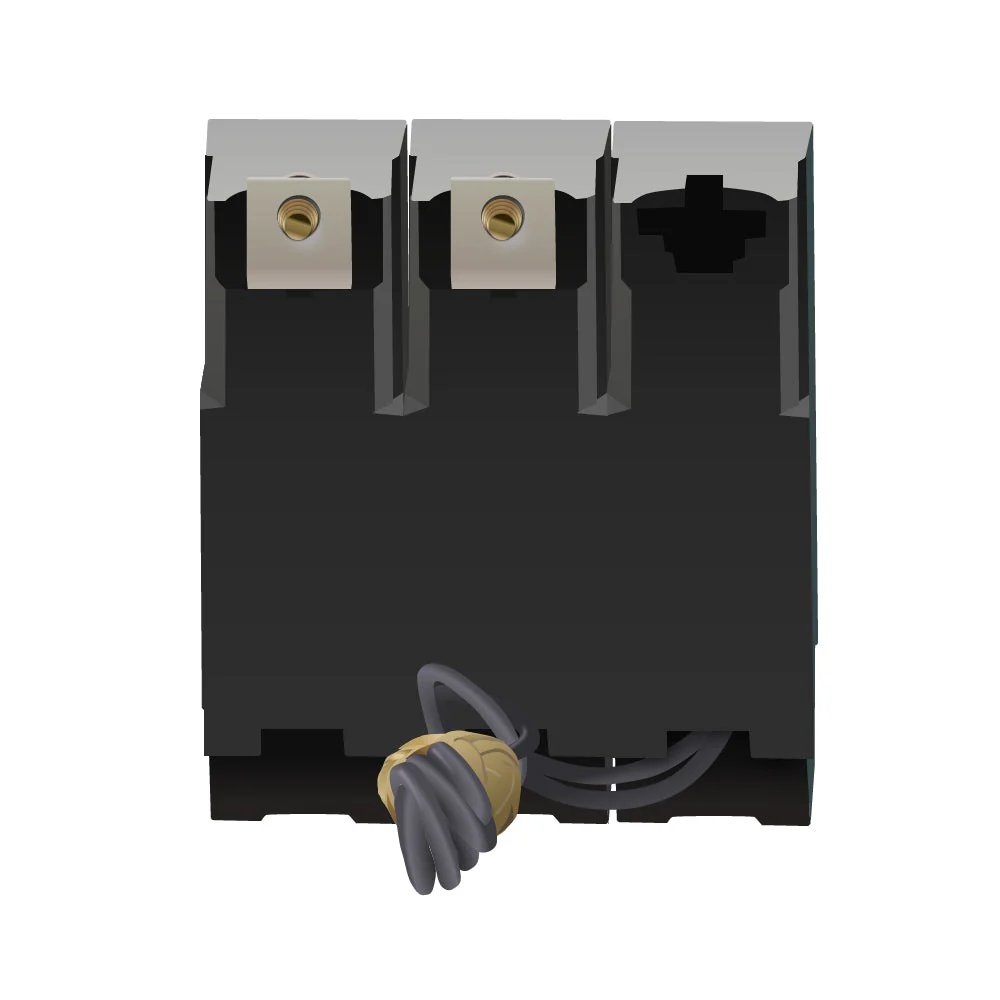

THQB2150ST1 - GE - 50 Amp Shunt Trip Circuit Breaker

THQB2150ST1 - GE Molded Case Circuit Breaker

This General Electric (GE) THQB series double pole 50 ampere bolt-on molded case circuit breaker with shunt trip. It has a maximum voltage rating of 240V, trip type thermal magnetic common trip and standard interrupting rating of 10 kiloampere at 240V. It features an internal common trip with factory installed 120Vac shunt trip thermal magnetic (LI) Long-Time and Instantaneous trip functions and load side lug terminals.

Specifications:

• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 50 A
• System Voltage: 120 Vac, 120/240 Vac
• Poles: 2
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Protective Relays: No
• Current Metering: No
• Special Markings: HACR
• GSA Compliance: No
• Authentic General Electric Product
