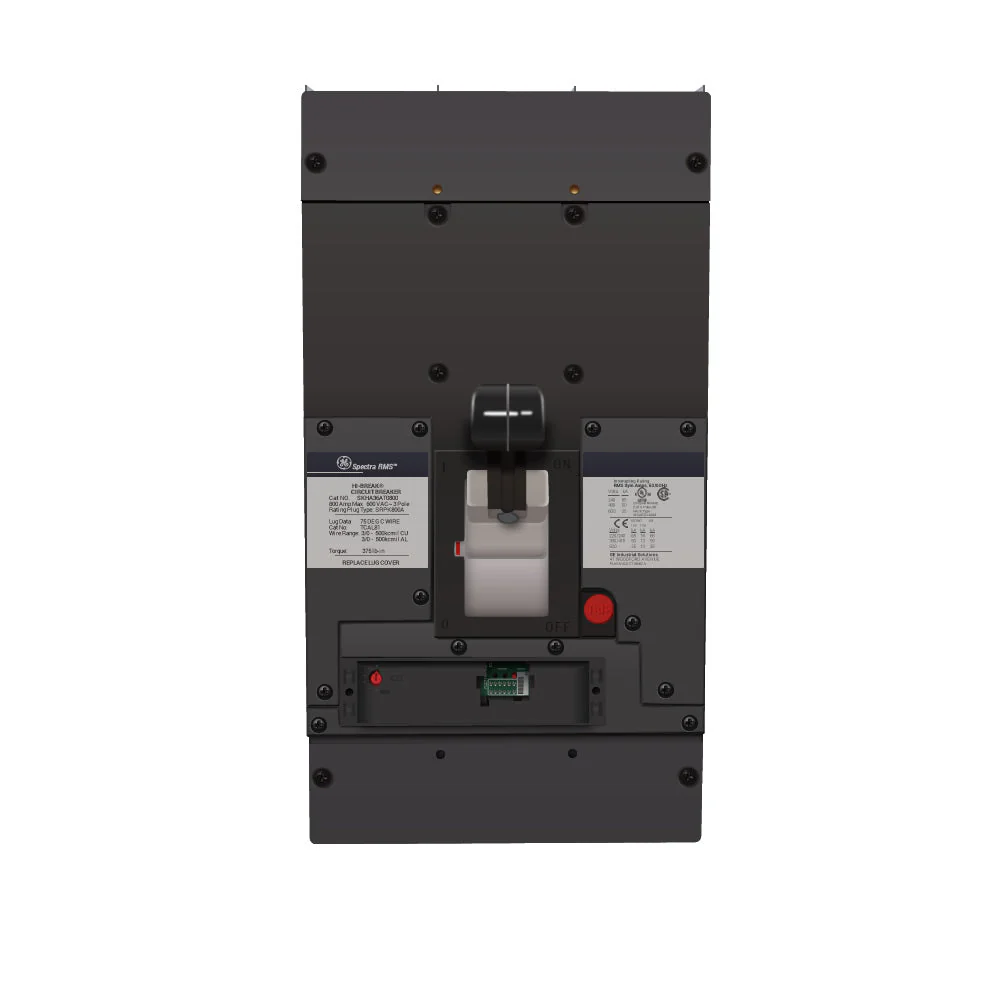

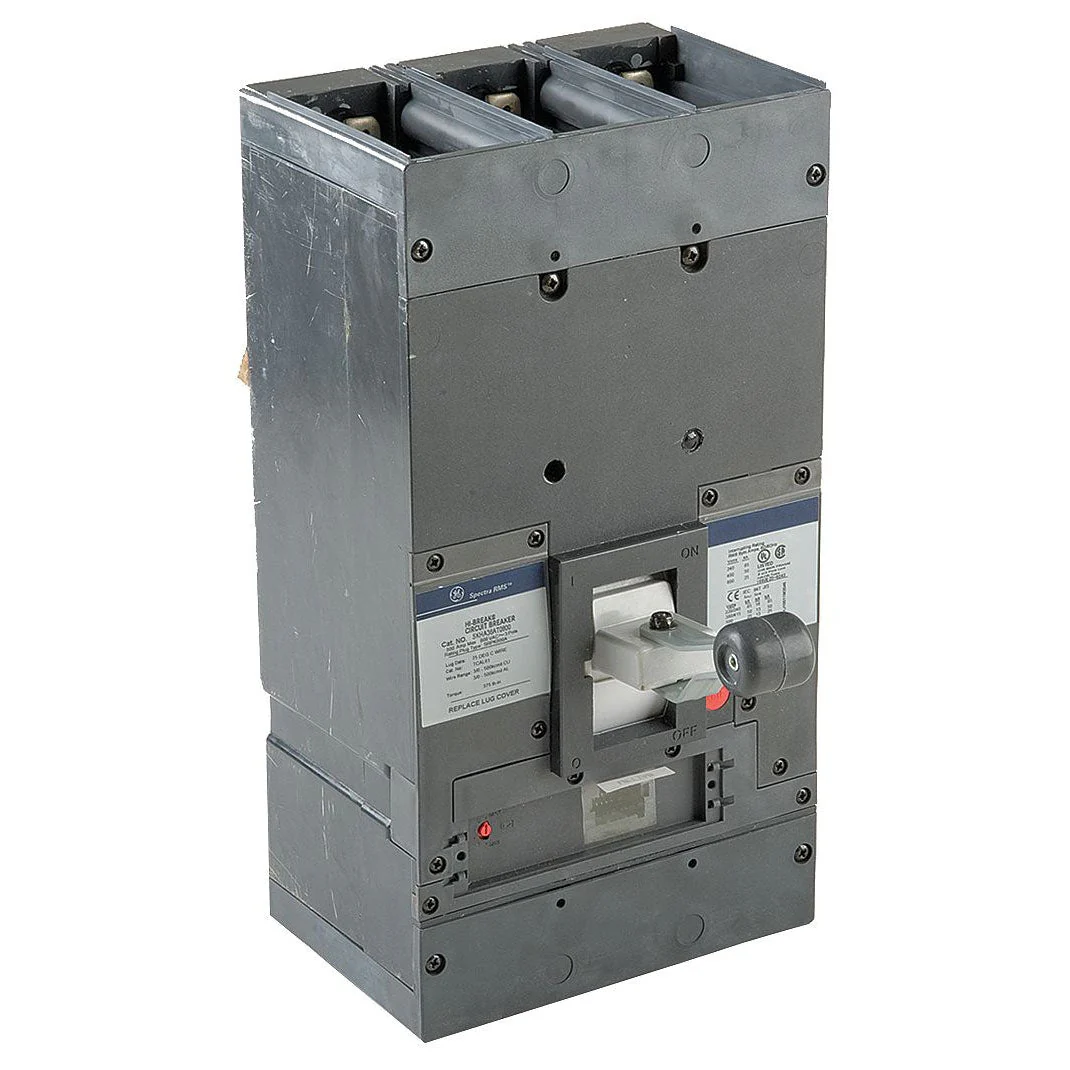

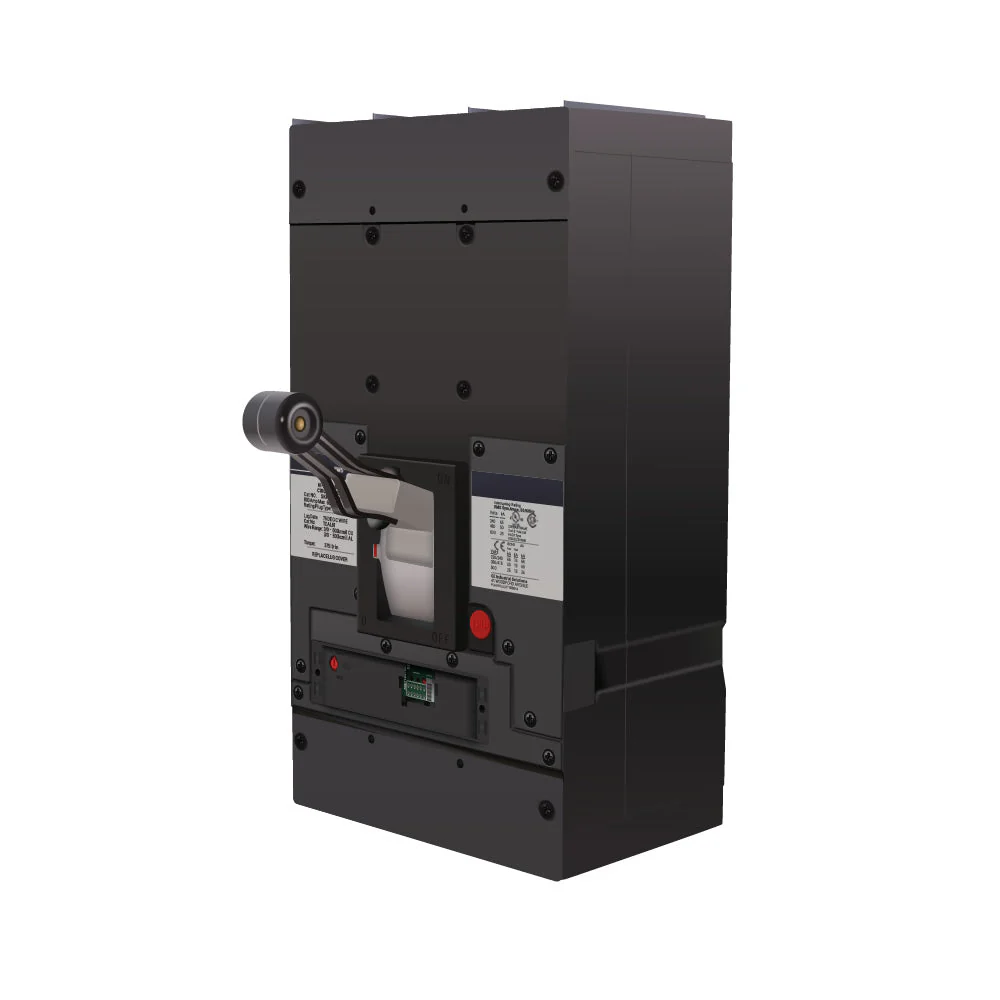

SKHA36AT0800 - GE - Molded Case Circuit Breaker
Overview
Product Specifications - SKHA36AT0800 - GE Molded Case Circuit Breaker
-
Part Number:
SKHA36AT0800 -
Manufacturer:
-
Family:
Spectra Series -
Pole:
3 -
Amp
800 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
SKHA -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
50kA@480V
Dimensions
-
Dimensions (HxWxD):
15.5" x 8.25" x 5.5"
-
Weight:
40.05 lbs
Standards
Product Description - SKHA36AT0800 - GE Molded Case Circuit Breaker
Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.
