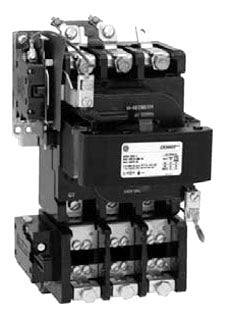

CR306E002 - GE - Starter, CR306 Series



GE's full voltage (600"‘Volt maximum) magnetic motor starter has an encapsulated coil and a 3"‘leg overload relay to protect against overloads in all phases.

Specifications

Item Number CR306E002
Manufacturer GE - General Electric
Product Series CR306
Family Series GE - General Electric Starters, CR306 Series
Style Open
Industry Standard NEMA
Poles 3
Coil Voltage 120 VAC
Nominal Coil Voltage 120 VAC
Continuous Amps Rating 90 Amps
Max HP 120V 1PH 7.5 Horsepower
Max HP 230/240V 1PH 15 Horsepower
Max HP 200/208V 3PH 25 Horsepower
Max HP 230/240V 3PH 30 Horsepower
Max HP 460/480V 3PH 50 Horsepower
Max HP 575/600V 3PH 50 Horsepower
Coil Type Magnetic
Overload Type Thermal
Termination Screw
NEMA Frame Size 3
Mounting Surface
Net Weight 17.26 lbs
Gross Weight 18.57 lbs
