CR123F848B - General Electrics - Heater Element

Overview

Product Specifications - CR123F848B - General Electrics Heater Element

Dimensions

Standards

Product Description - CR123F848B - General Electrics Heater Element

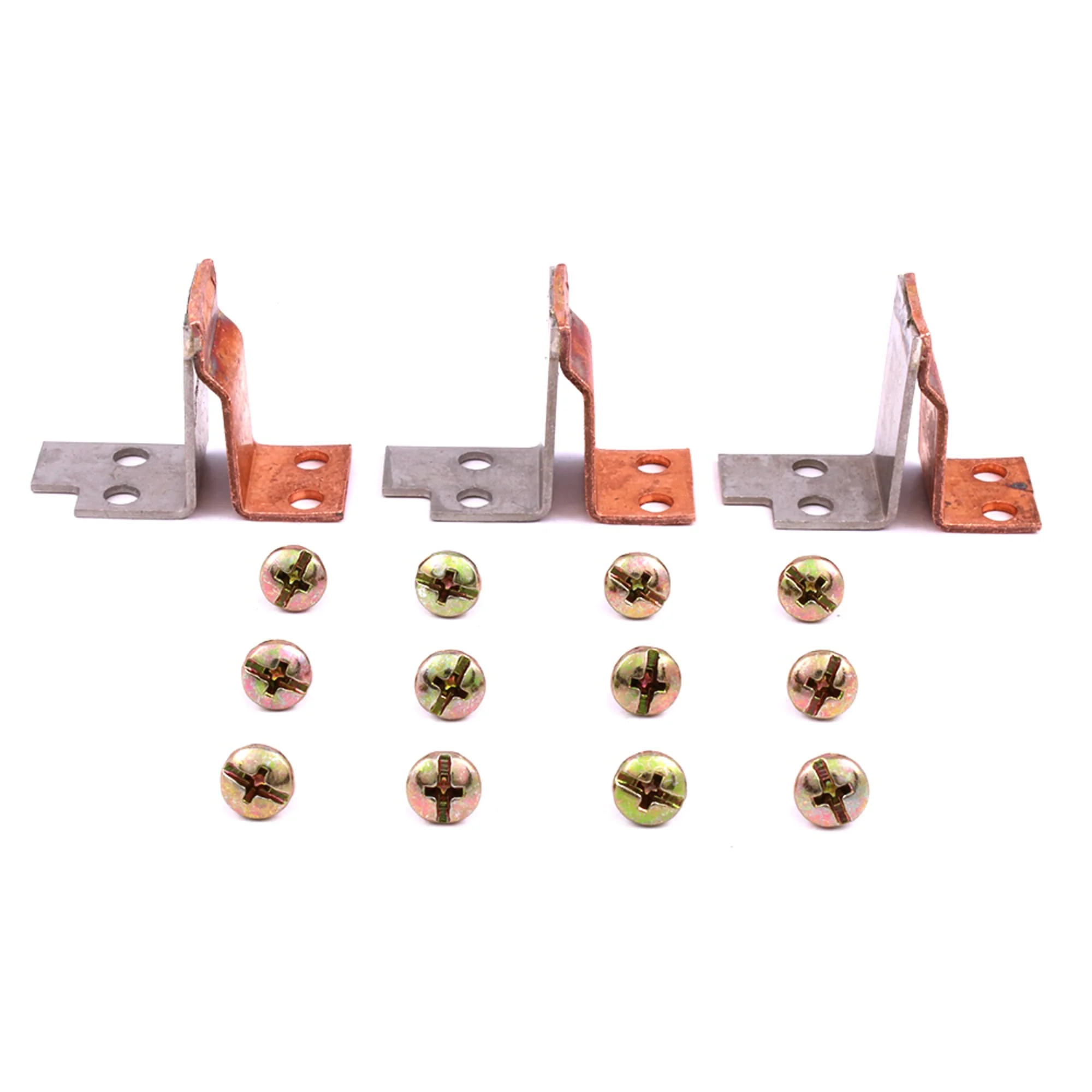

CR123F848B, General Electric, part of the CR123F Series, is a thermal overload ambient-compensated heater element of type CR123F. It is designed for a current range of 66.1-353 amps, with a maximum fuse rating of 150 amps. It is open-rated for 71.50-71.70 amps and enclosed-rated for 66.10-70.60 amps. NEMA size 3 is rated for 66.10-79.60 amps, NEMA size 4 for 68.60-83.60 amps, and NEMA size 5 for 162.00-176.00 amps. Additionally, it is suitable for use with thermal overload relays, magnetic motor starters, and motor controls.
