FBN36TE090RV - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - FBN36TE090RV - General Electrics Molded Case Circuit Breakers
-
Part Number:
FBN36TE090RV -
Manufacturer:
-
Family:
Record Plus -
Pole:
3 -
Amp
90 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
FBN -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
4.25 x 1.25 x 6.5 -
Weight:
7 lb
Standards
Product Description - FBN36TE090RV - General Electrics Molded Case Circuit Breakers

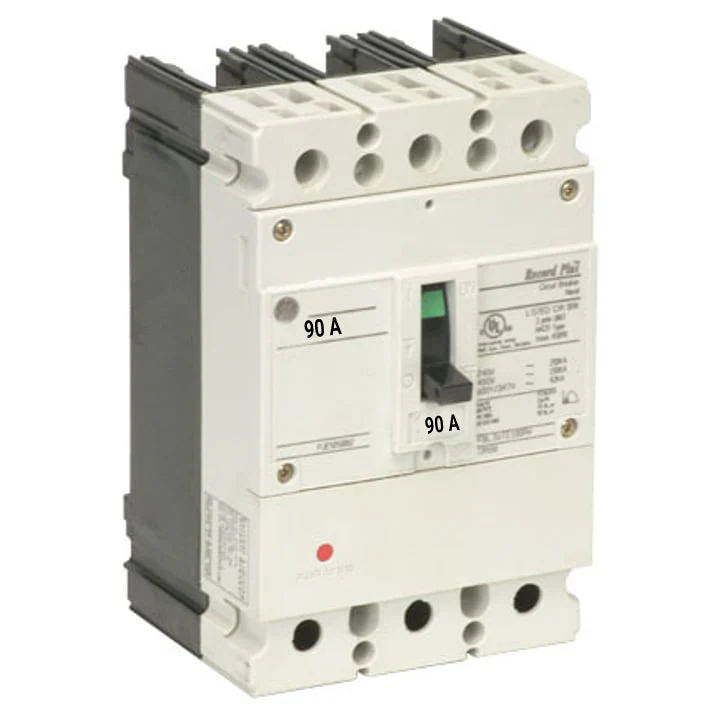

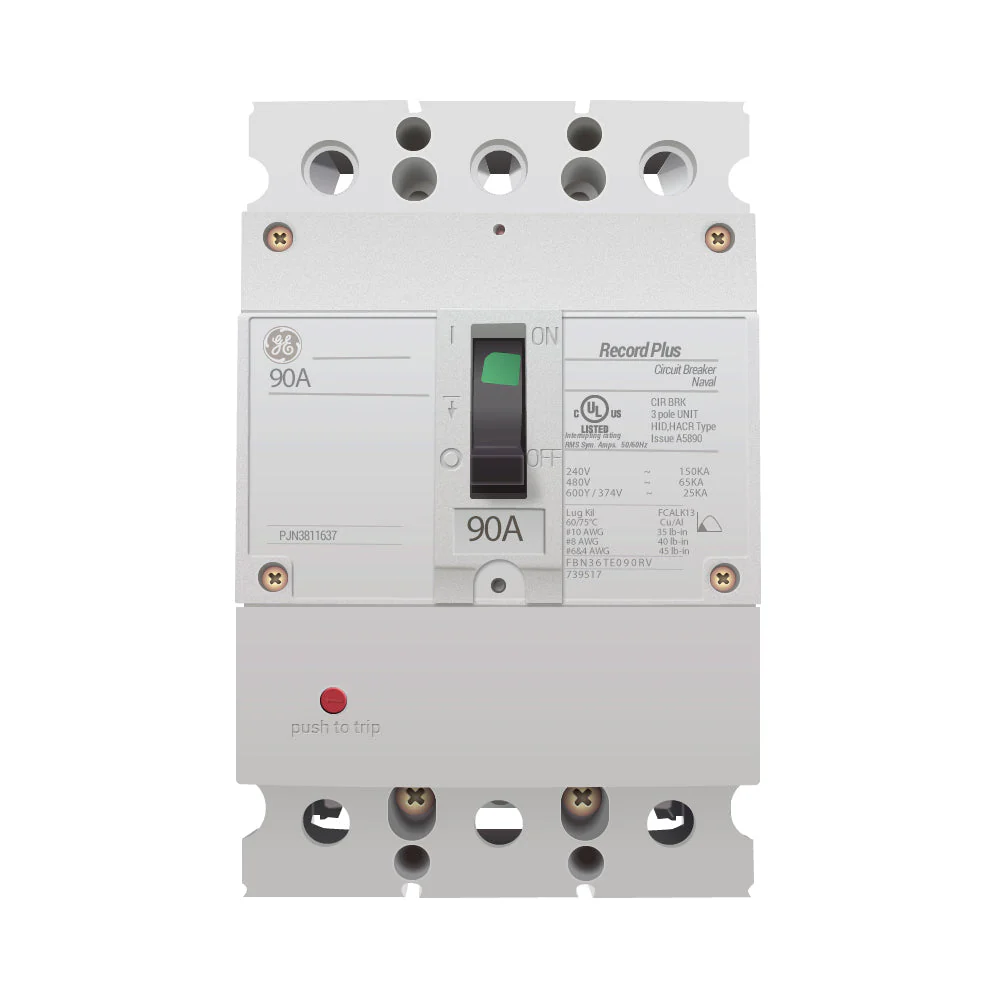

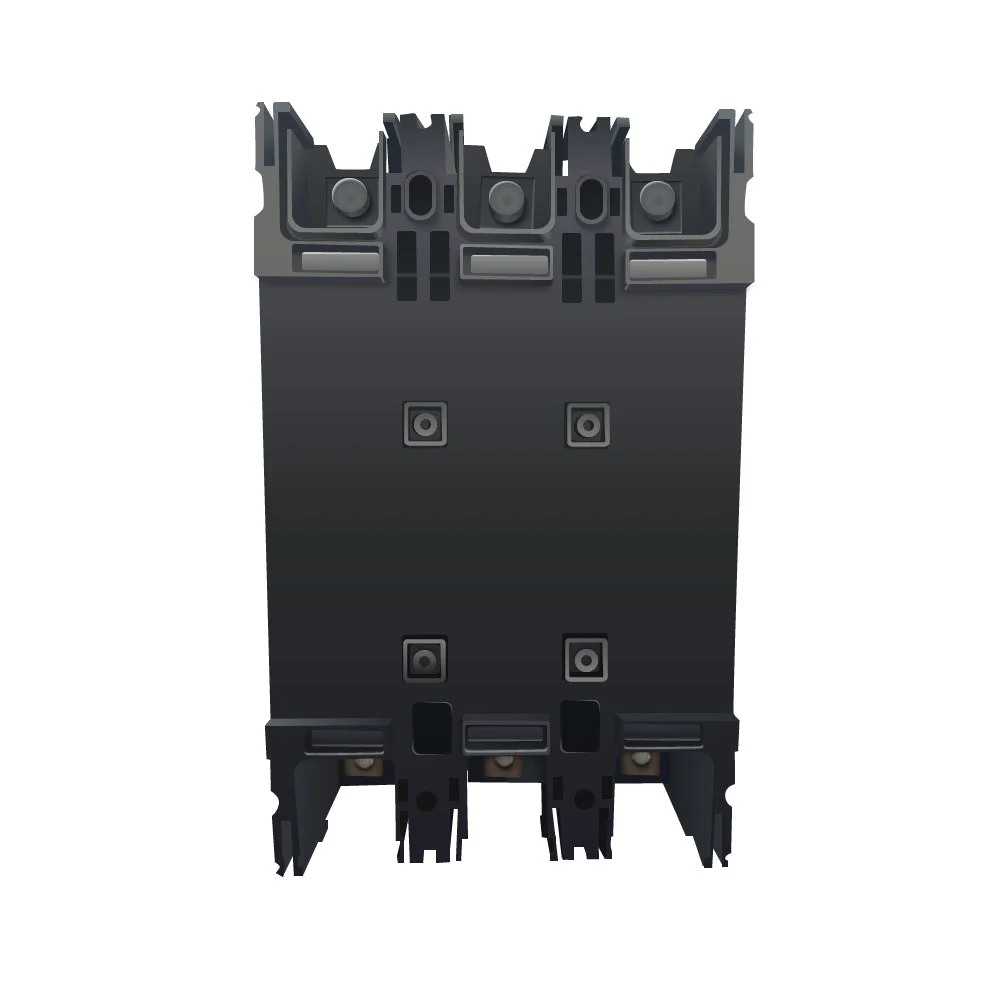

FBN36TE090RV, this molded case circuit breaker from General Electric's Record Plus series follows the type FBN and FB100 frame specifications. With a 3P (3-phase) configuration, 90A current capacity, and a high interrupting capacity of 65kA@480V, it provides a robust solution for your electrical needs. The Bolt-On design facilitates convenient installation, and it comes complete with Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features.
Original: $622.99
-70%$622.99
$186.90Product Information
