SGHB36BA0400 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - SGHB36BA0400 - General Electrics Molded Case Circuit Breakers
-
Part Number:
SGHB36BA0400 -
Manufacturer:
-
Family:
Spectra Series -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
SGHB -
Functions:
LIT - Long-Time, Instantaneous and Targets -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3.81 x 5.5 x 10.09 -
Weight:
8 lb
Standards
Product Description - SGHB36BA0400 - General Electrics Molded Case Circuit Breakers

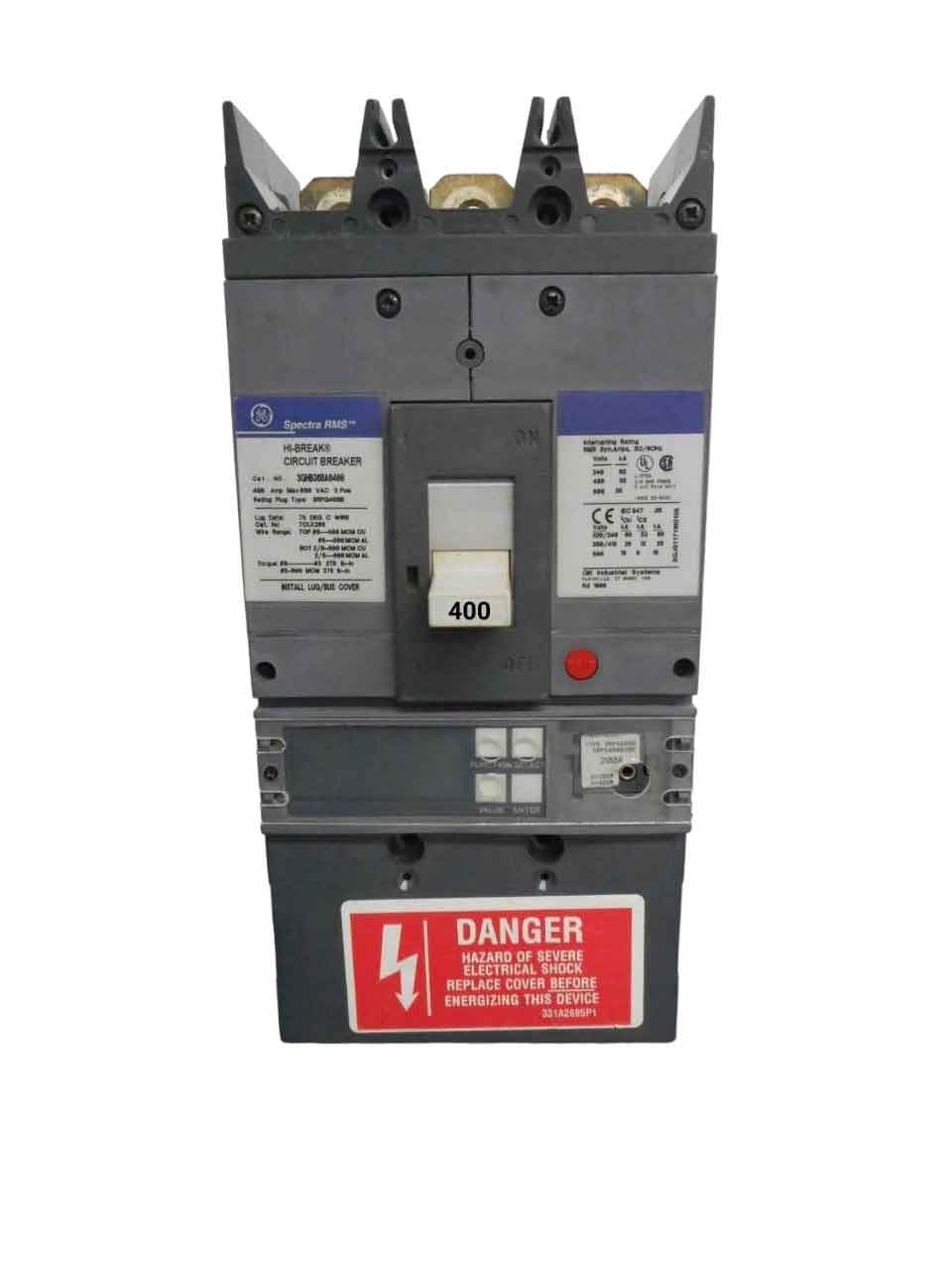

SGHB36BA0400 is a Spectra Series molded case circuit breaker by General Electric. It belongs to the type SGHB category and is designed for three-phase (3P) applications. With a current rating of 400A and a voltage rating of 600V, this Bolt-On breaker has a standard interrupting capacity of 35kA@480V. It is suitable for reverse fed applications, UL listed, and comes complete with an interchangeable MVT, MicroVersaTrip, Plus trip unit featuring Long-Time, Instantaneous, and Targets trip functions. Lugs are not included.
Original: $1,780.99
-70%$1,780.99
$534.30Product Information
