SGHB36BC0600 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - SGHB36BC0600 - General Electrics Molded Case Circuit Breakers
-
Part Number:
SGHB36BC0600 -
Manufacturer:
-
Family:
Spectra Series -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
SGHB -
Functions:
LIGT - Long-Time, Instantaneous, Ground Fault and Targets -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3.81 x 5.5 x 10.09 -
Weight:
8 lb
Standards
Product Description - SGHB36BC0600 - General Electrics Molded Case Circuit Breakers

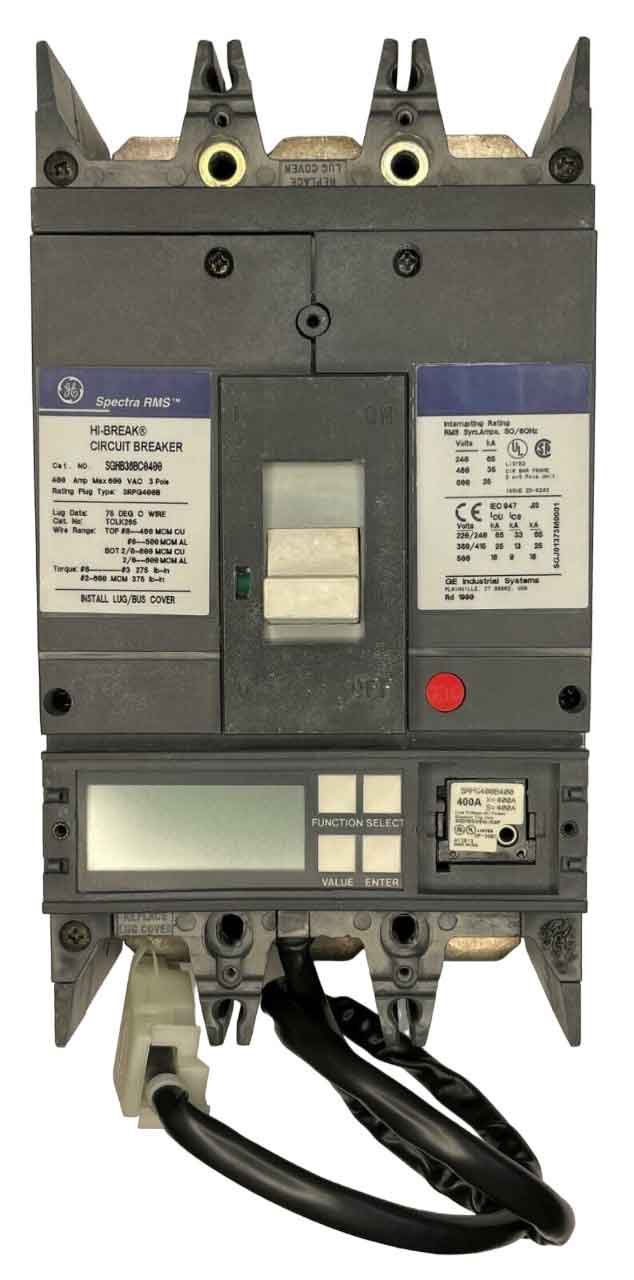

SGHB36BC0600 is a Spectra Series molded case circuit breaker from General Electric. Like its counterpart, it belongs to the type SGHB category and is designed for three-phase (3P) applications. It features a higher current rating of 600A with a voltage rating of 600V and a standard interrupting capacity of 35kA@480V. This Bolt-On breaker is suitable for reverse fed applications, UL listed, and includes an interchangeable MVT, MicroVersaTrip, Plus trip unit with Long-Time, Instantaneous, Ground Fault, and Targets trip functions. Lugs are not included.
