SGLL36BB0400 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - SGLL36BB0400 - General Electrics Molded Case Circuit Breakers
-
Part Number:
SGLL36BB0400 -
Manufacturer:
-
Family:
Spectra Series -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
SGLL -
Functions:
LSIT - Long-Time, Short-Time, Instantaneous and Targets -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
11.5 x 5.5 x 5.5 -
Weight:
8 lb
Standards
Product Description - SGLL36BB0400 - General Electrics Molded Case Circuit Breakers

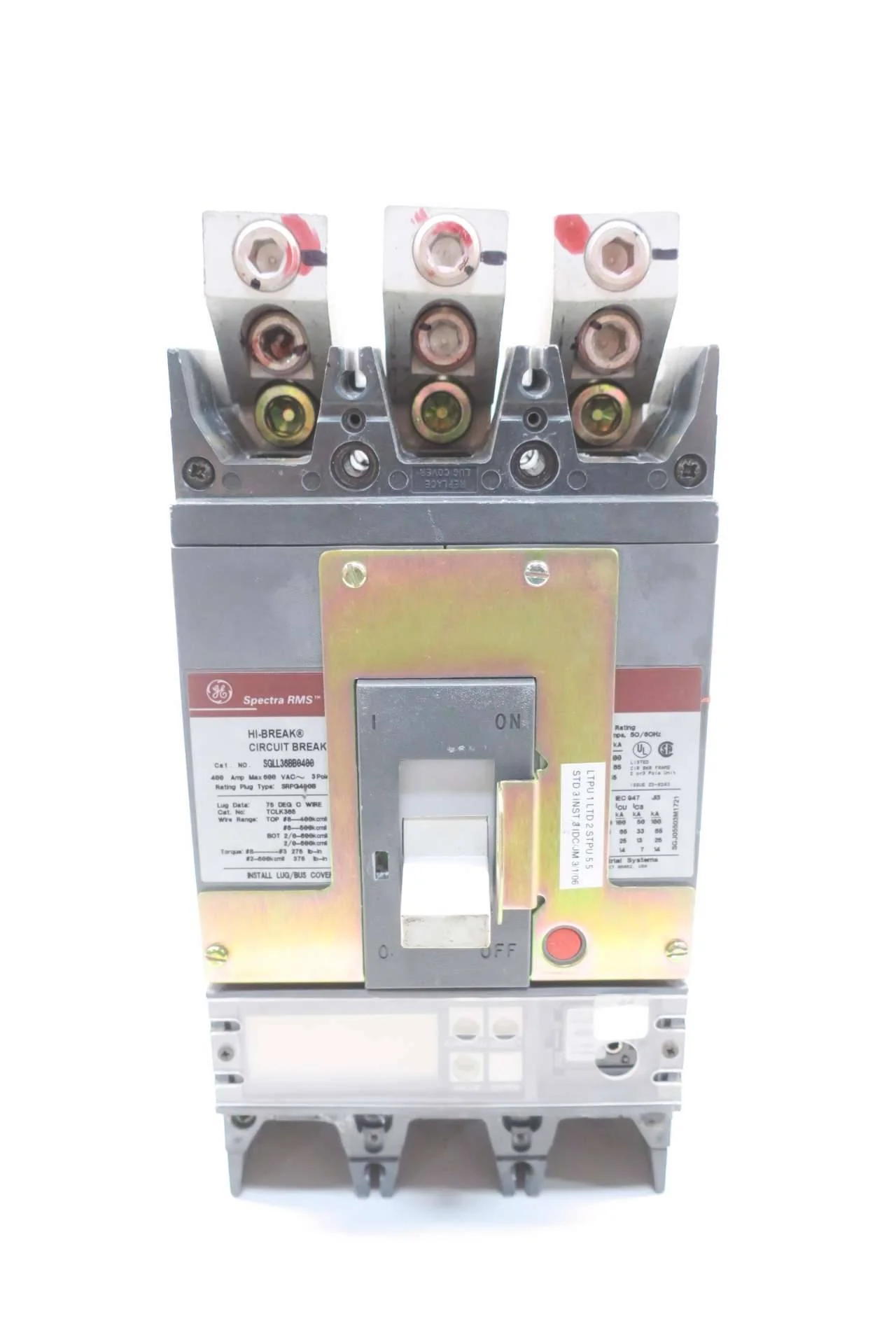

SGLL36BB0400 is a high-interrupting capacity molded case circuit breaker from General Electric's Spectra Series. It belongs to the SGLL type, designed for three-phase (3P) applications with a current rating of 400A and a voltage rating of 600V. With an impressive interrupting capacity of 65kA@480V, this current-limiting, 100% rated Bolt-On breaker is suitable for reverse fed applications. It is UL listed and comes complete with an interchangeable MVT, MicroVersaTrip, Plus trip unit featuring LSIT - Long-Time, Short-Time, Instantaneous, and Targets trip functions. Lugs are not included, and it incorporates solid-state electronic components.
Original: $13,671.99
-70%$13,671.99
$4,101.60Product Information
