TEYD3110B - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TEYD3110B - General Electrics Molded Case Circuit Breakers
-
Part Number:
TEYD3110B -
Manufacturer:
-
Family:
TEYD Series -
Pole:
3 -
Amp
110 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
TEYD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@480V
Dimensions
-
Dimensions (HxWxD):
5.38 x 3 x 3.5 -
Weight:
1.6 lb
Standards
Product Description - TEYD3110B - General Electrics Molded Case Circuit Breakers

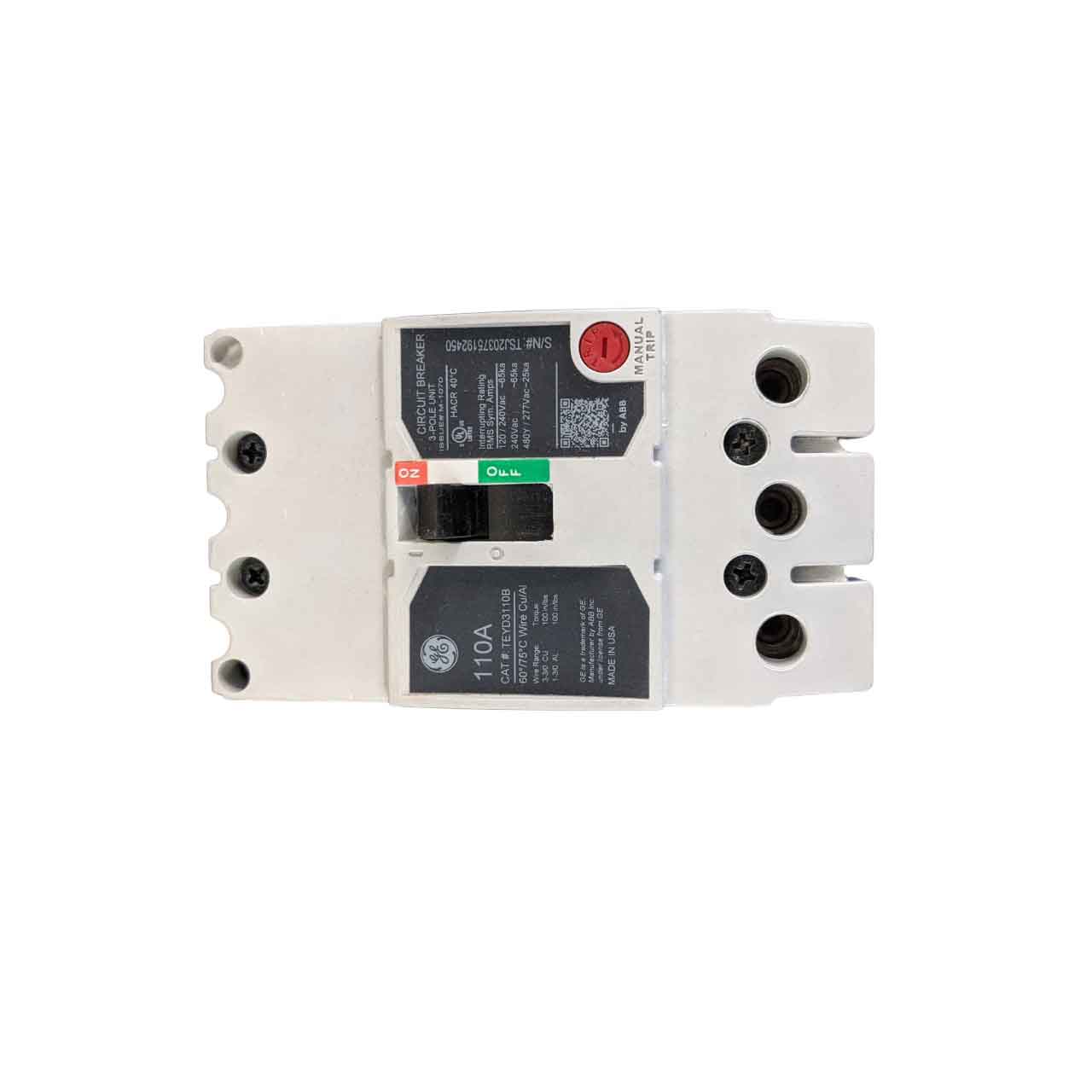

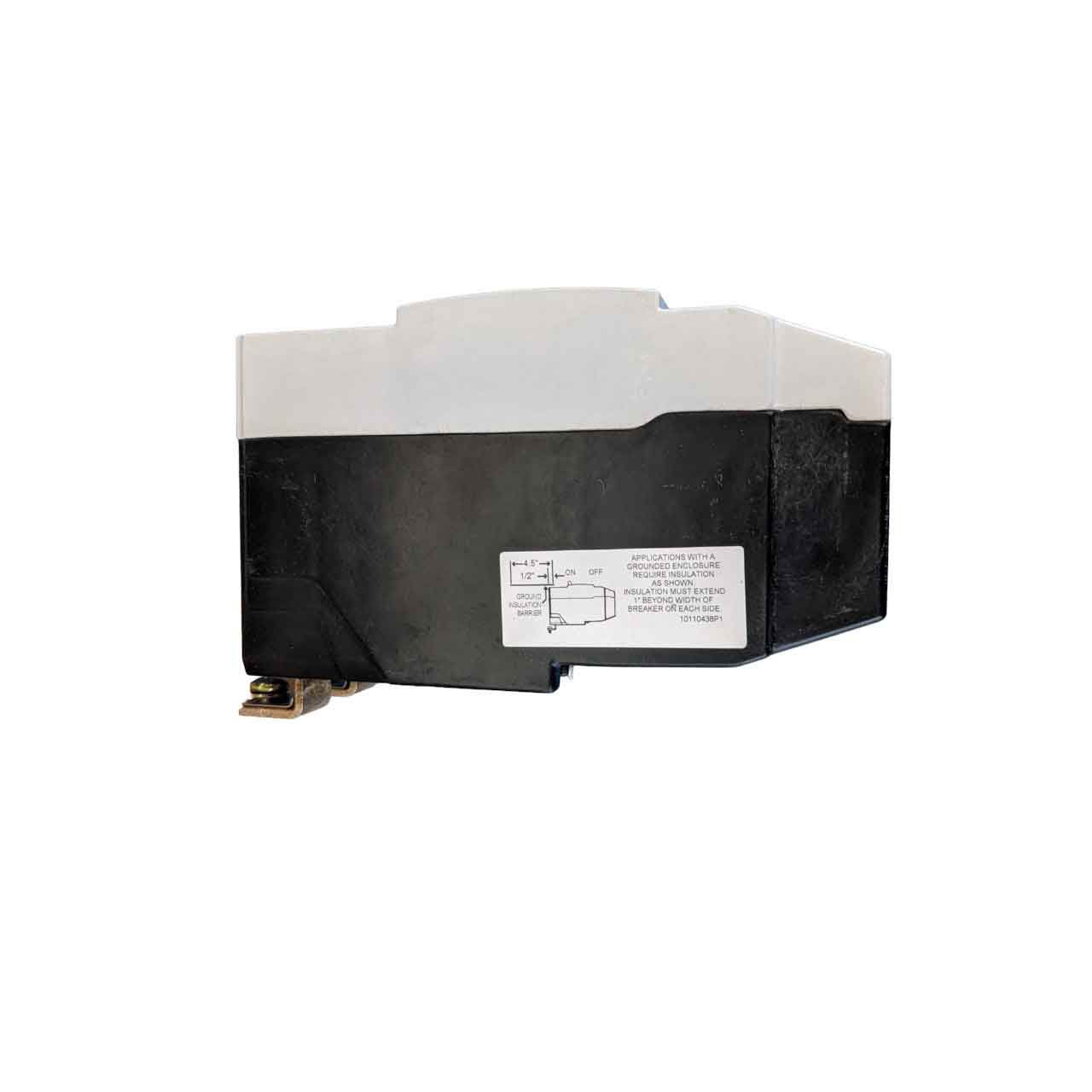

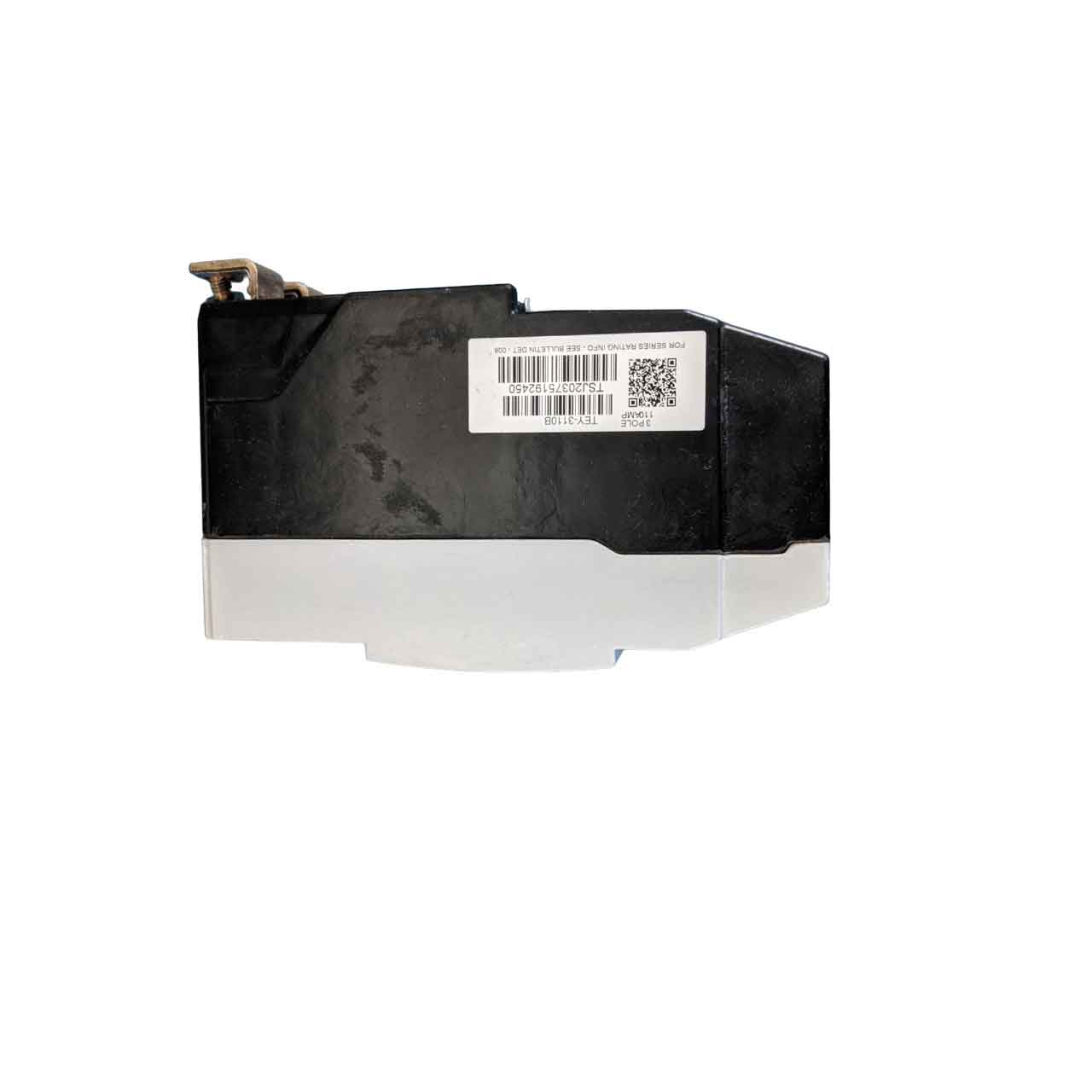

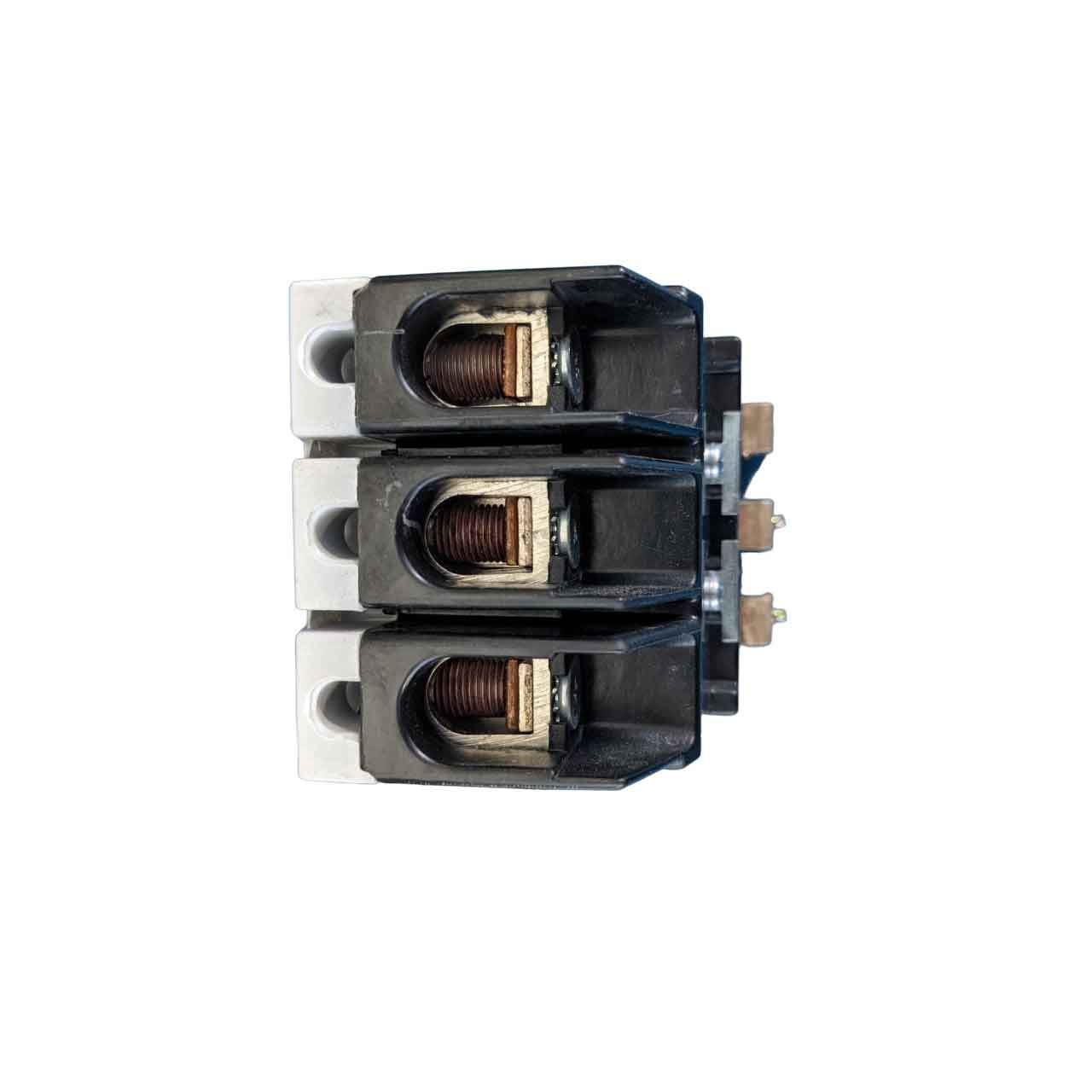

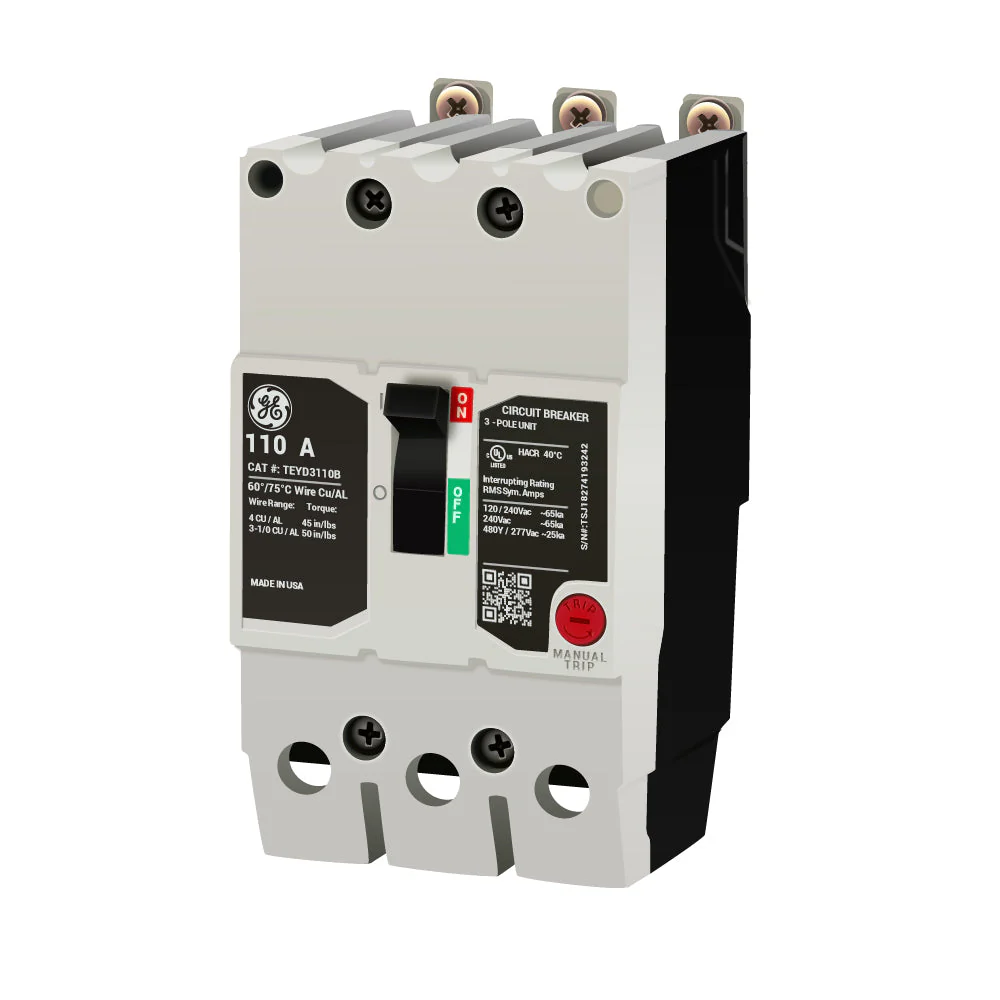

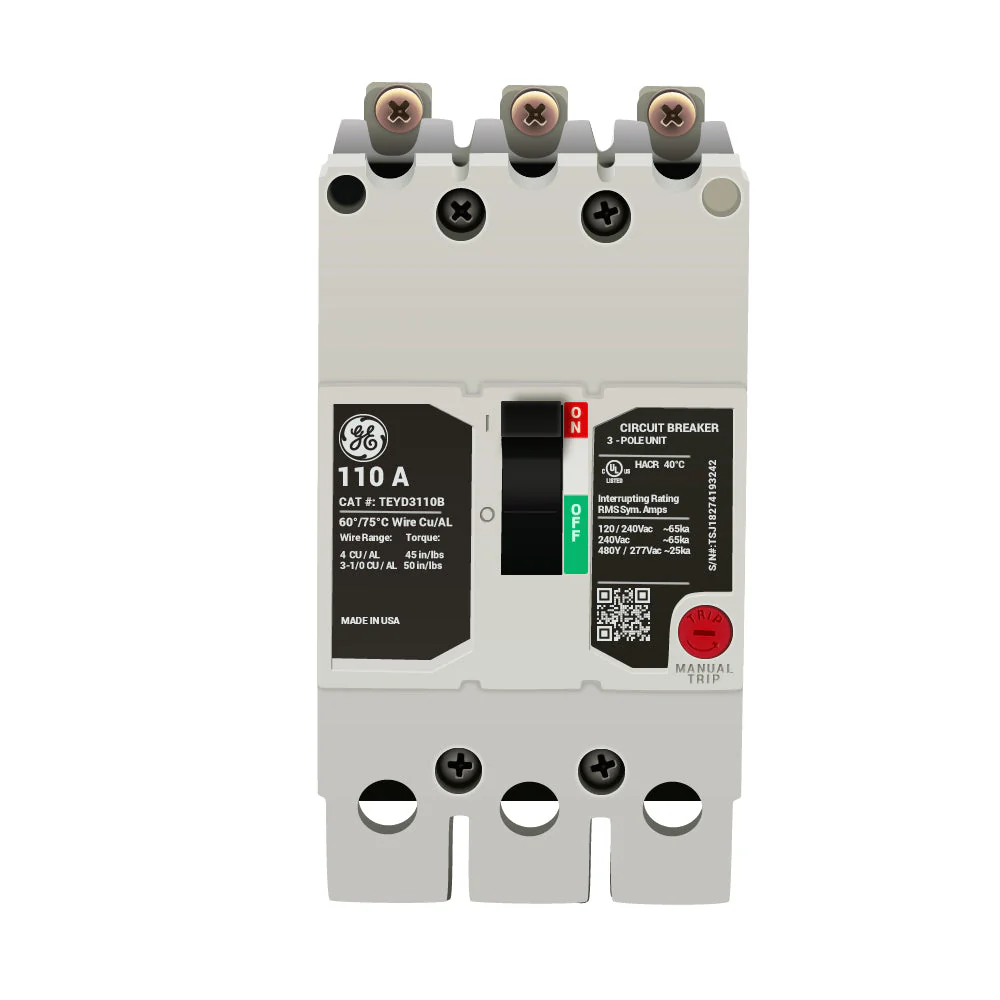

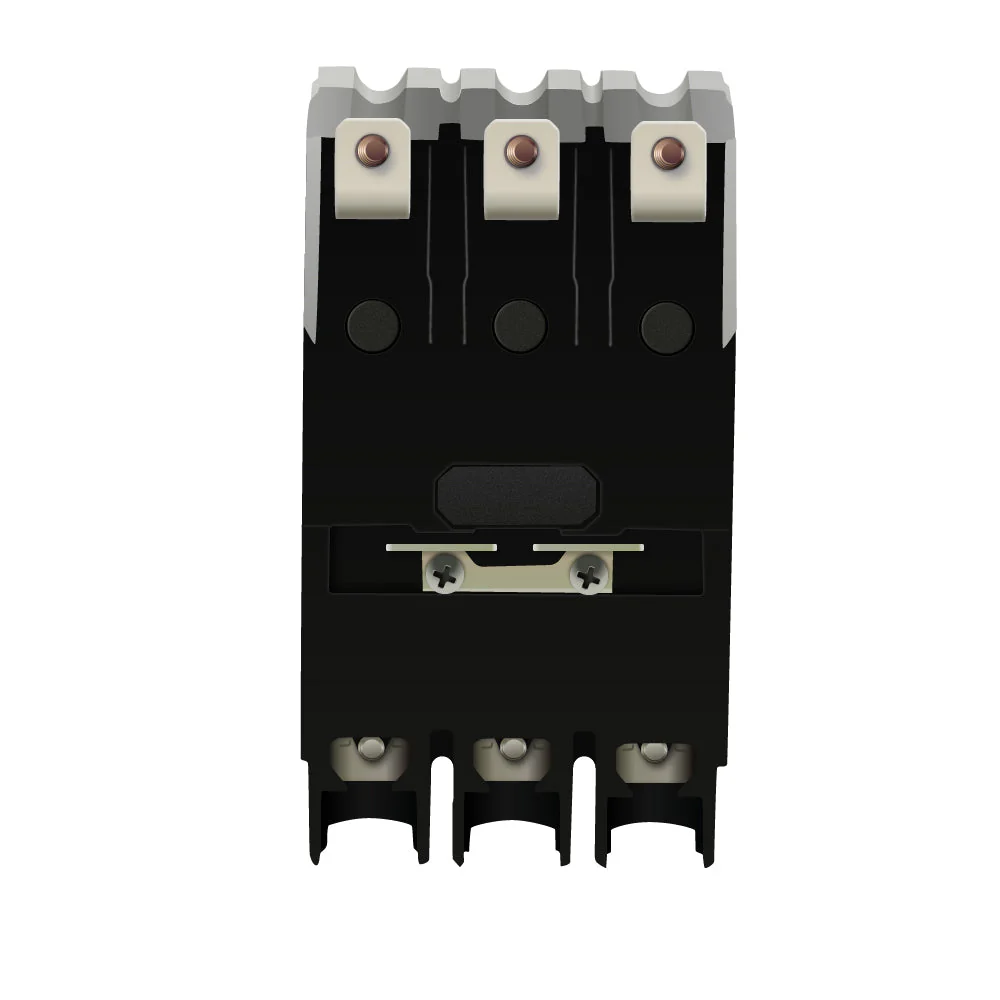

Another member of the TEYD Series, the TEYD3110B is a 3-pole, 110A molded case circuit breaker. Featuring a standard interrupting capacity of 25kA@480V and operating at 40B:C, it is Bolt-On and equipped with non-interchangeable trip functions, load side lug terminals, and thermal magnetic technology for reliable circuit protection.
