TJC36400G - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TJC36400G - General Electrics Molded Case Circuit Breakers
-
Part Number:
TJC36400G -
Manufacturer:
-
Family:
Mag-Break -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TJC -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
30kA@480V
Dimensions
-
Dimensions (HxWxD):
3.81 x 8.25 x 10.12 -
Weight:
17.54 lb
Standards
Product Description - TJC36400G - General Electrics Molded Case Circuit Breakers

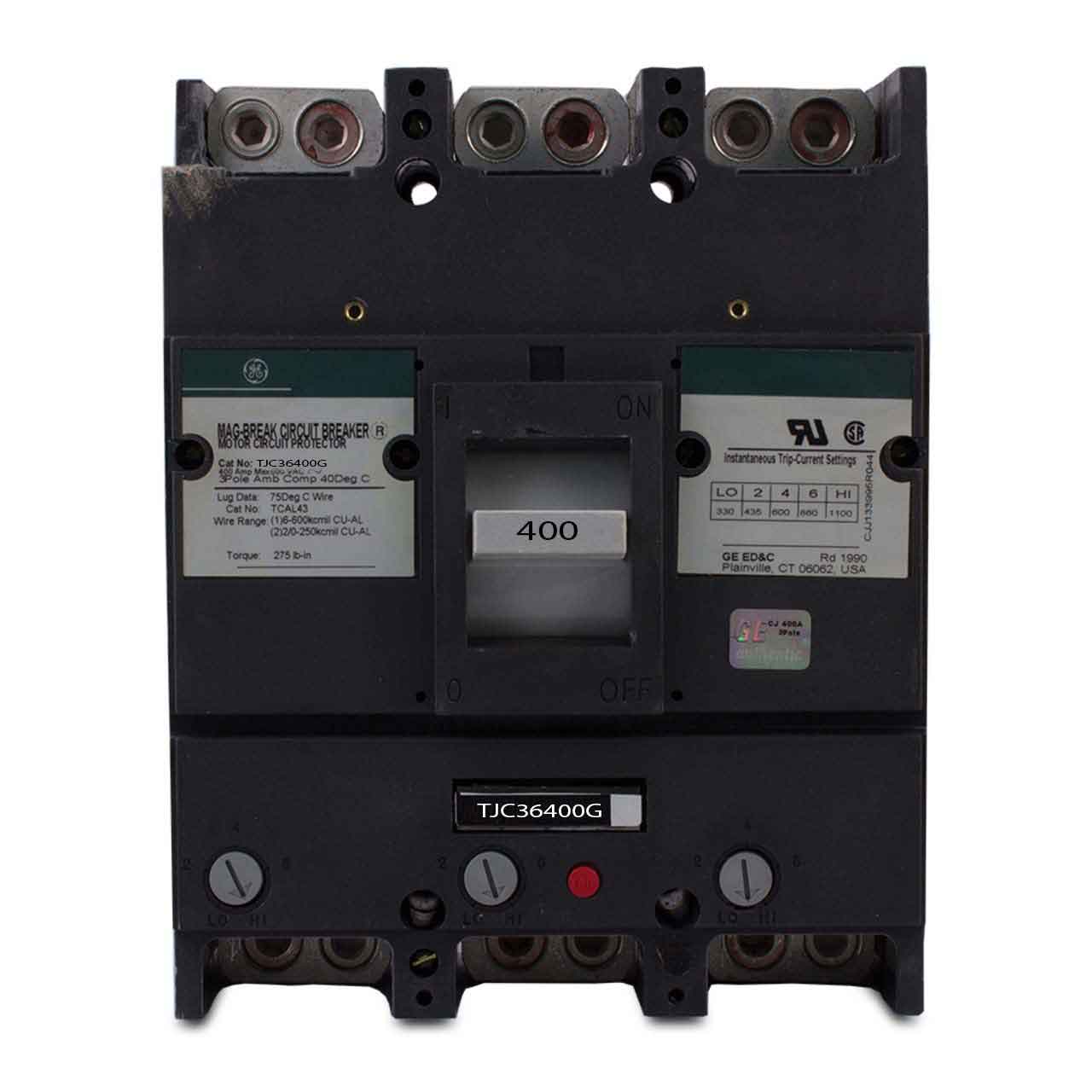

The TJC36400G by General Electric is a Mag-Break MCP motor circuit protector designed for heavy-duty applications. With a 3-pole (3P), 3-phase configuration and a 400A capacity, it operates at 600V, featuring a standard interrupting capacity of 30kA at 480V. UL listed for safety, this Feed-Thru circuit breaker includes Instantaneous protection only, line & load side lug terminals, and a magnetic range of 1000-3300A.
