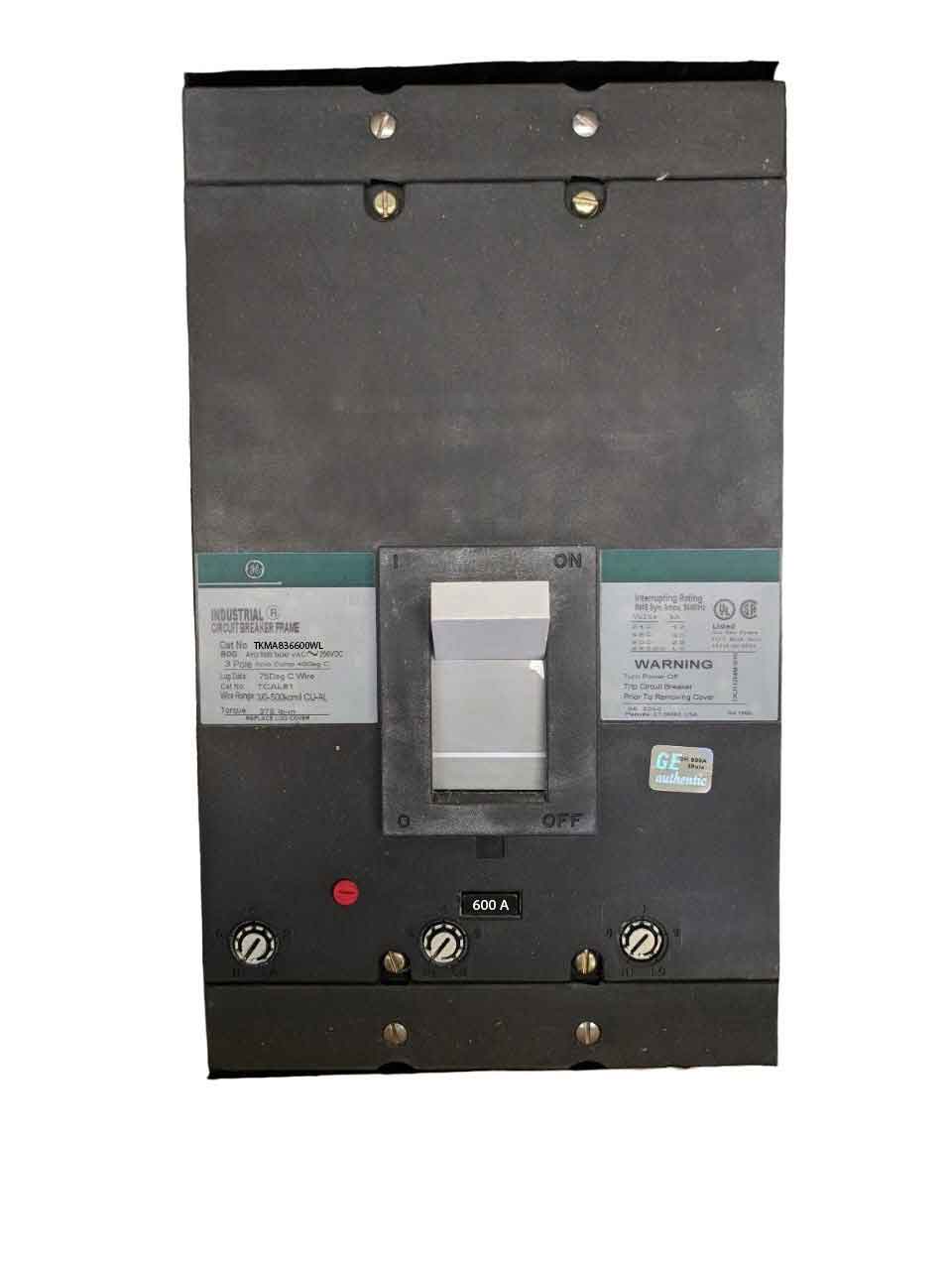

TKMA836600WL - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TKMA836600WL - General Electrics Molded Case Circuit Breakers
-
Part Number:
TKMA836600WL -
Manufacturer:
-
Family:
K1200 Line -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
TKMA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
30kA@480V
Dimensions
-
Dimensions (HxWxD):
5.5 x 8.25 x 15.5 -
Weight:
32 lb
Standards
Product Description - TKMA836600WL - General Electrics Molded Case Circuit Breakers
Designed for flexibility, this TKMA type circuit breaker is part of the K1200 Line, offering a 3-pole, 3-phase configuration with a 600A rating. Operating at 600V, it maintains a standard interrupting capacity of 30kA at 480V. Featuring a 40ĂâĂÂșC Feed-Thru design, it is complete with interchangeable trip options, providing both Long-Time (LI) and Instantaneous trip functions. The inclusion of line & load side lug terminals enhances its connectivity, making it suitable for a wide range of applications.
