TMQD22200 - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TMQD22200 - General Electrics Molded Case Circuit Breakers
-
Part Number:
TMQD22200 -
Manufacturer:
-
Family:
Meter Mod -
Pole:
2 -
Amp
200 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
TMQD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
100kA@240V
Dimensions
-
Weight:
4.25 lb
Standards
Product Description - TMQD22200 - General Electrics Molded Case Circuit Breakers

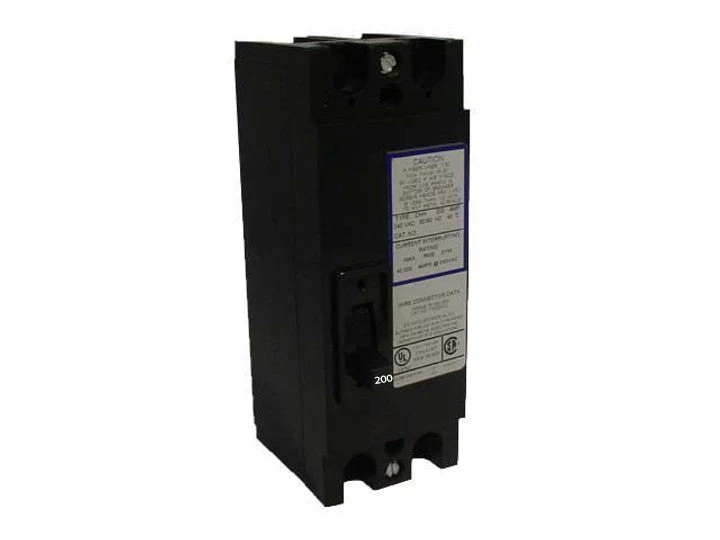

Similar to the TMQD22175, this tenant main circuit breaker is designed for 200A sockets with a 200A rating at 240V. It features a 2-pole, 1-phase configuration and provides a very high interrupting capacity of 100kA at 240V. The Bolt-On design ensures secure installation, and it comes complete with a non-interchangeable trip unit and load side lug terminals.
