HHFD63B125 - Siemens - Molded Case
Overview
Product Specifications - HHFD63B125 Siemens Molded Case
-
Part Number:
HHFD63B125 -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
125 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
FD Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
4.5 x 9.5 x 4. -
Weight:
8.73
Standards

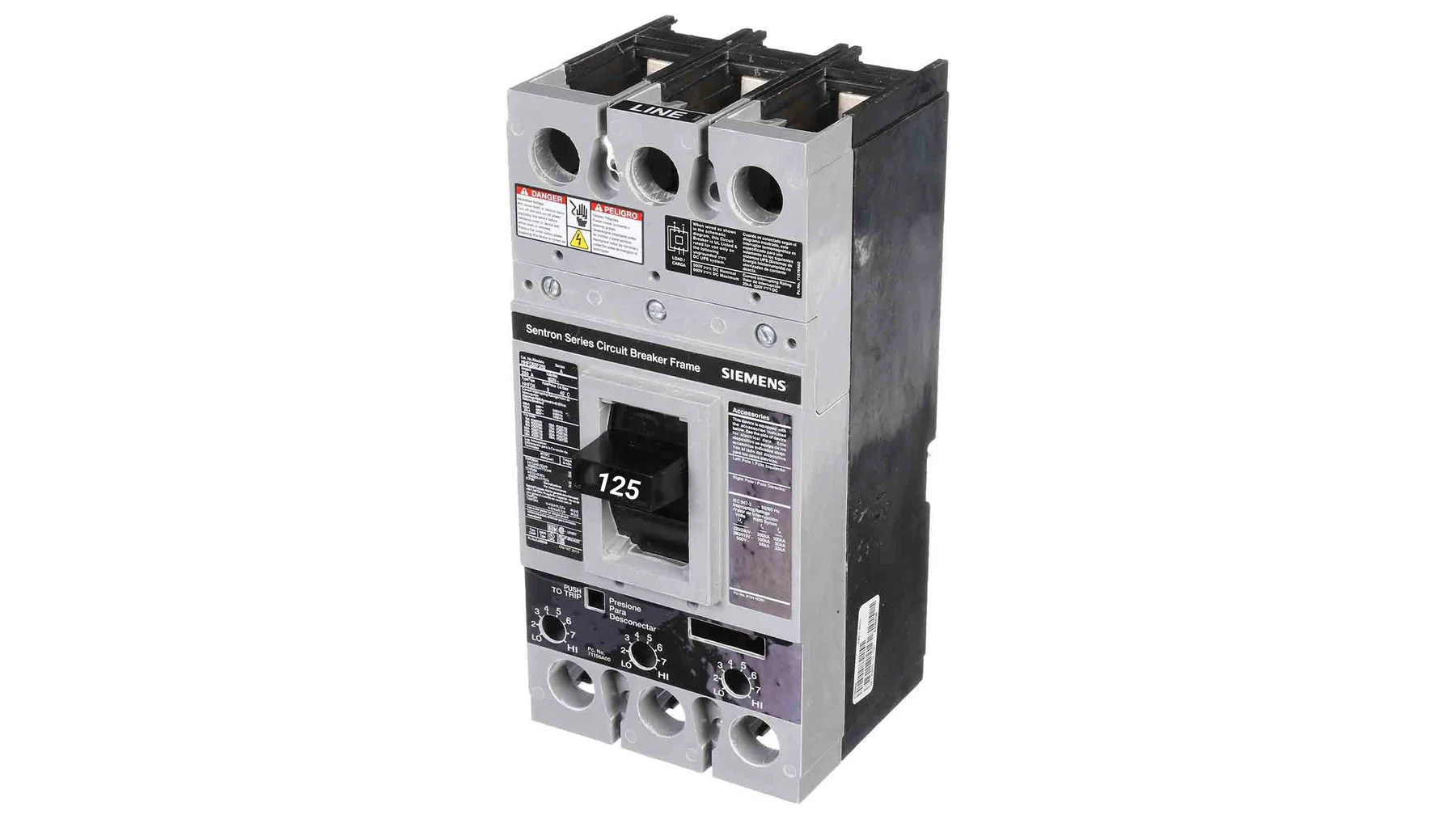

Product Description - HHFD63B125 Siemens Molded Case
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER FD FRAME WITH EXTRA HIGH BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 125A 3-POLE BREAKER (25KAIC AT 600V) (100KAIC AT 480V). SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE: 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL). DIMENSIONS (W x H x D) IN: 4.5 x 9.5 x 4.
Original: $1,350.99
-70%$1,350.99
$405.30Product Information
