SHMD69800ANGT - Siemens - Molded Case
Overview
Product Specifications - SHMD69800ANGT Siemens Molded Case
-
Part Number:
SHMD69800ANGT -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
800 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
MD Frame -
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
9 x 16 x 6. -
Weight:
62
Standards
Product Description - SHMD69800ANGT Siemens Molded Case

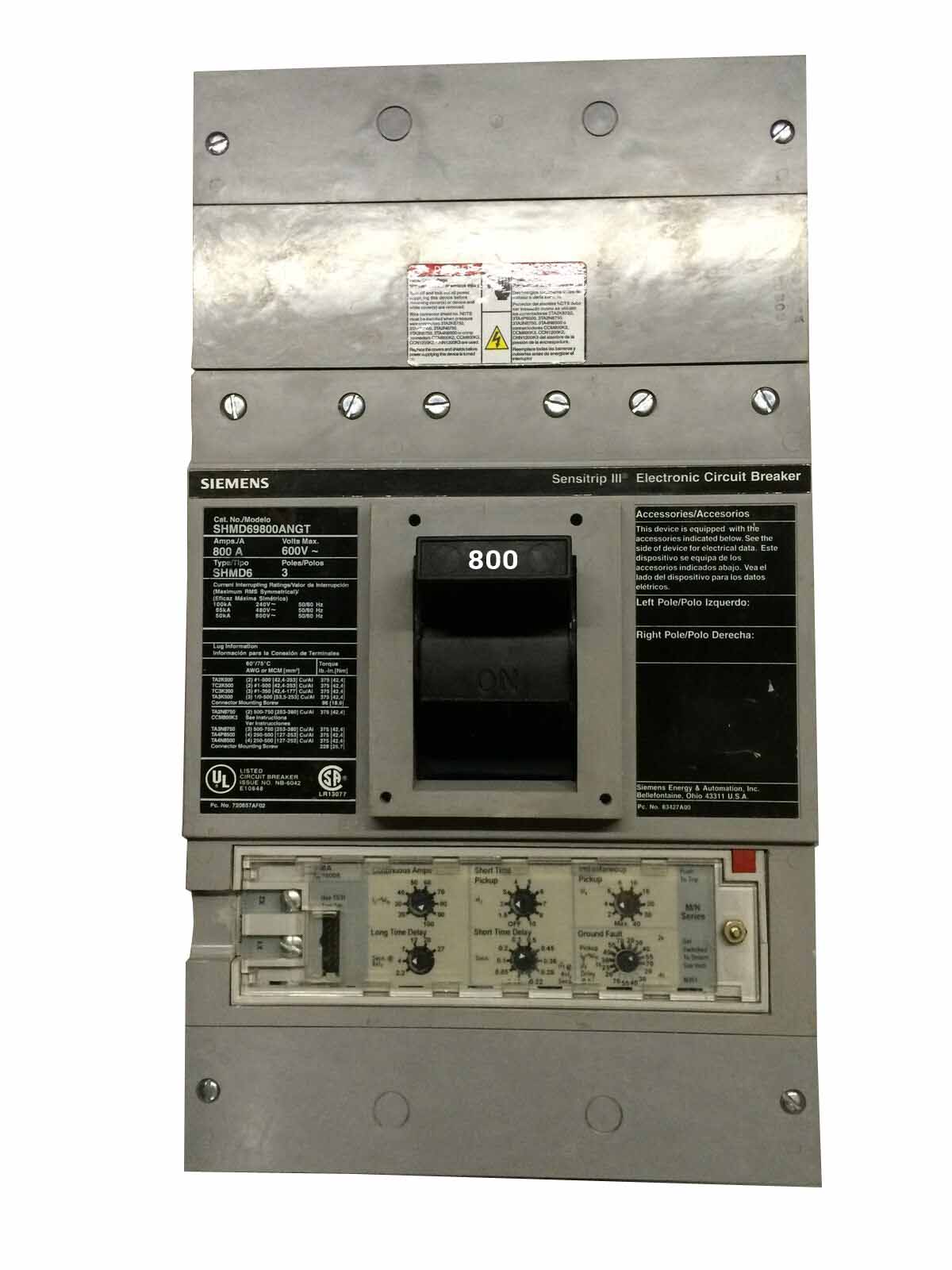

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP (ETU). STANDARD 40 DEG C BREAKER MD FRAME WITH HIGH BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 800A 3-POLE BREAKER (50KAIC AT 600V) (65KAIC AT 480V) LSIG. SENSITRIP FUNCITIONS. SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA3K500) WIRE RANGE: 1/0AWG - 500KCM (CU/AL). DIMENSIONS (W x H x D) IN: 9 x 16 x 6.
