QOB110 - Square D - 10 Amp Circuit Breaker

QOB110 - Square D Bolt-On Circuit Breaker

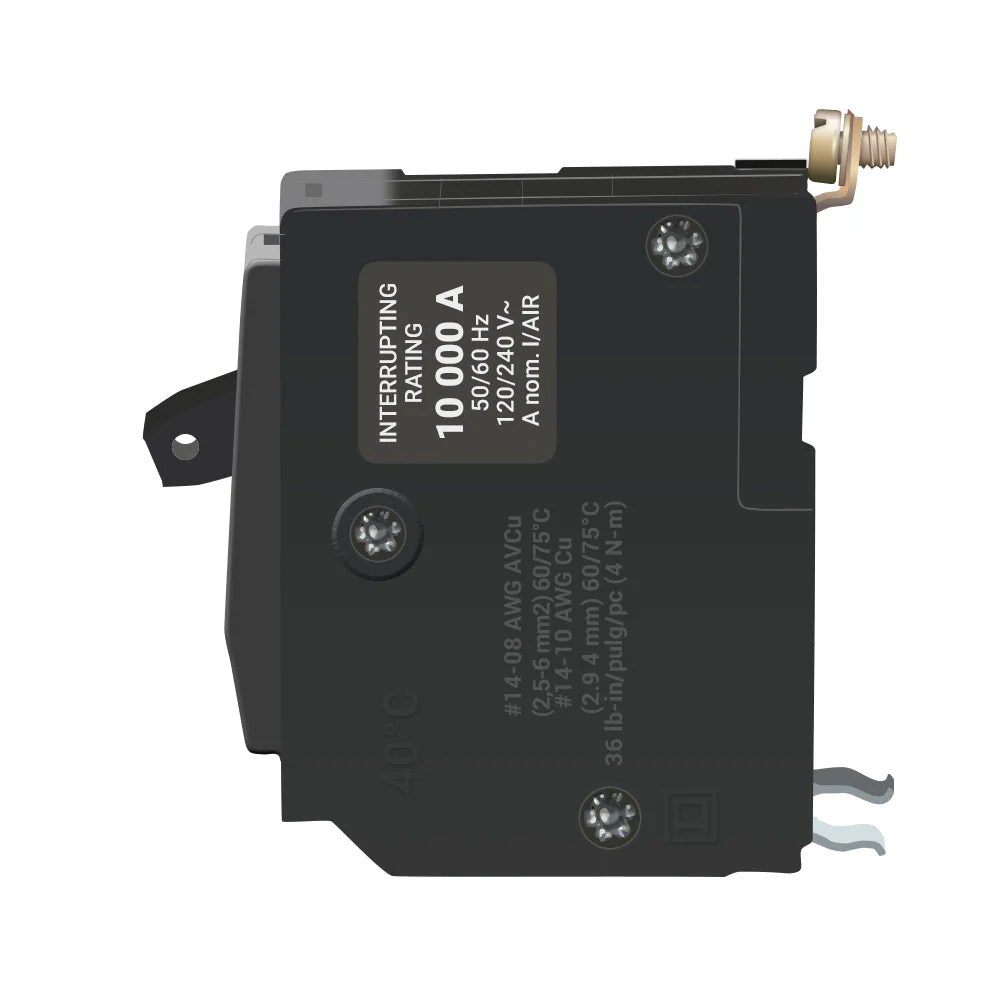

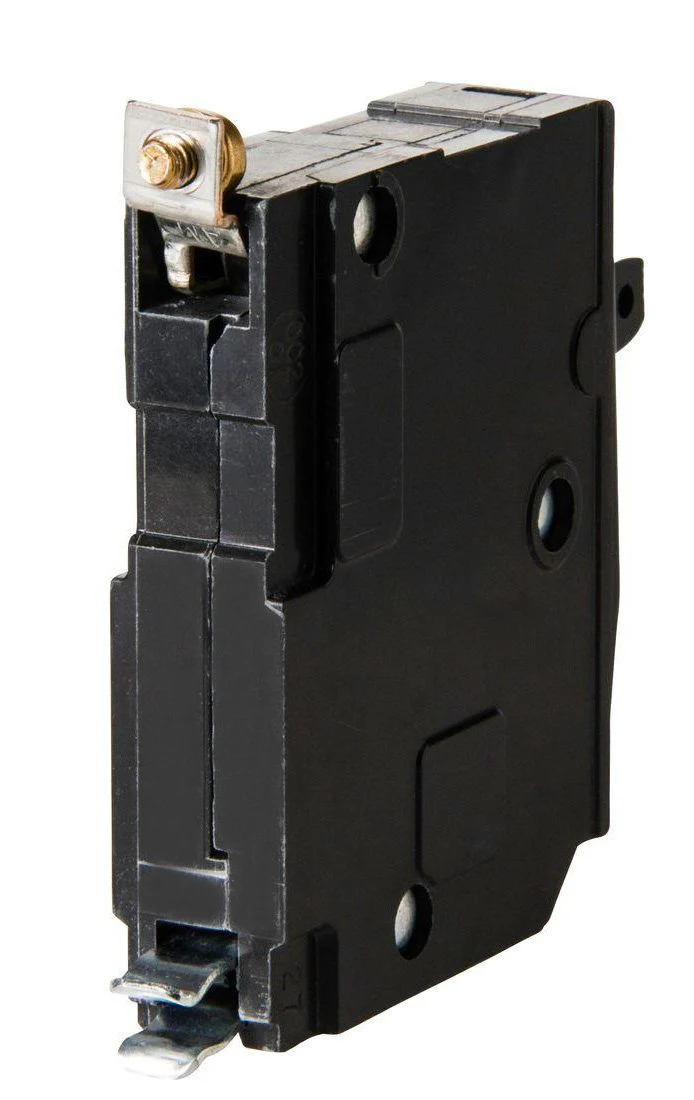

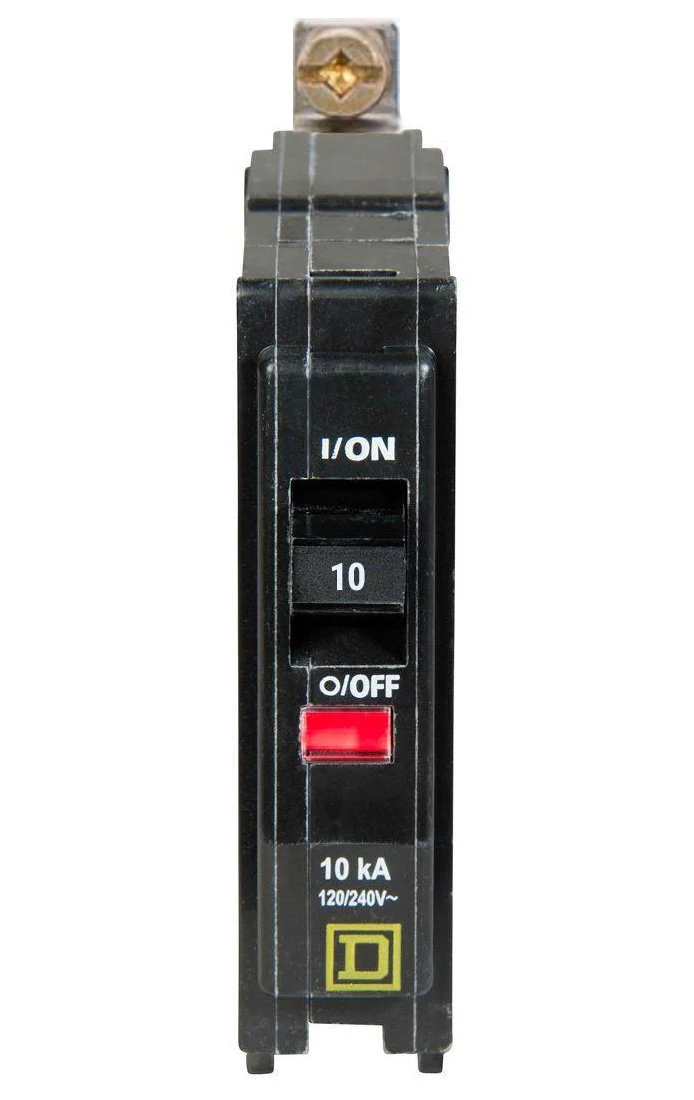

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 10 Amps and interrupting rating of 10 kilo-Amps. The 1-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 8 AWG.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 10 A
• System Voltage: 120 V AC, 120/240 V AC, 48 V DC
• Mounting Type: Bolt-on
• Number of Poles: 1P
• Circuit Breaker Type: Standard
• Ratings: Not rated
• Electrical Connection: Pressure plate
• Number of Panel Spaces: 1
• Wire Size: AWG 14...AWG 8 (copper or aluminium)
• Height: 3 in
• Depth: 2.91 in
• Width: 0.75 in
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Schneider Electric / Square D Product
• Dimensions (H x W x L): 3" x 0.75" x 2.91"

Alt model: q0b110
