HLL36100M73 - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - HLL36100M73 - Square D Molded Case Circuit Breakers
-
Part Number:
HLL36100M73 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp:
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
H Frame -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
6.42 x 4.09 x 3.39 -
Weight:
4.85 lbs
Standards
Product Description - HLL36100M73 - Square D Molded Case Circuit Breakers

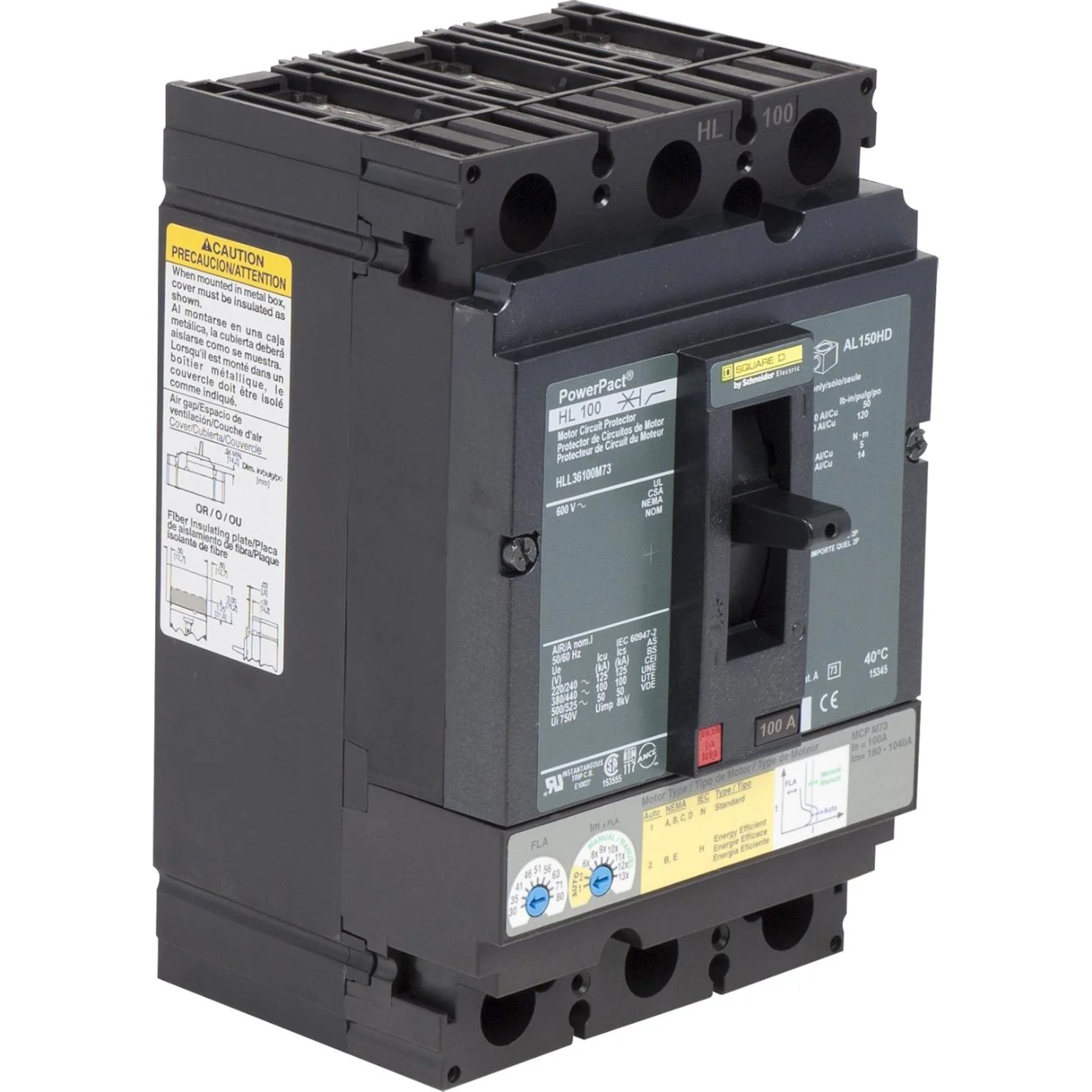

PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
