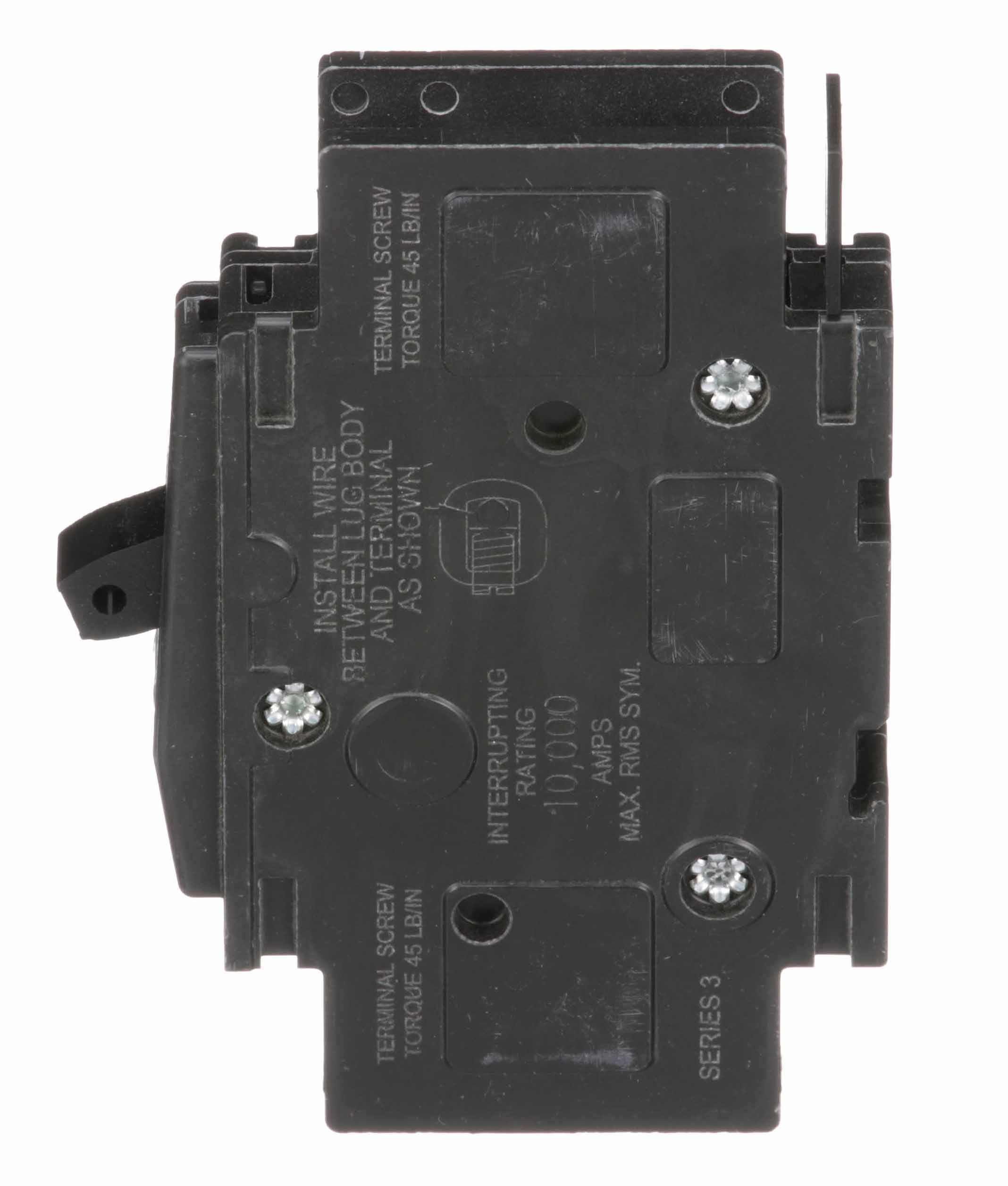

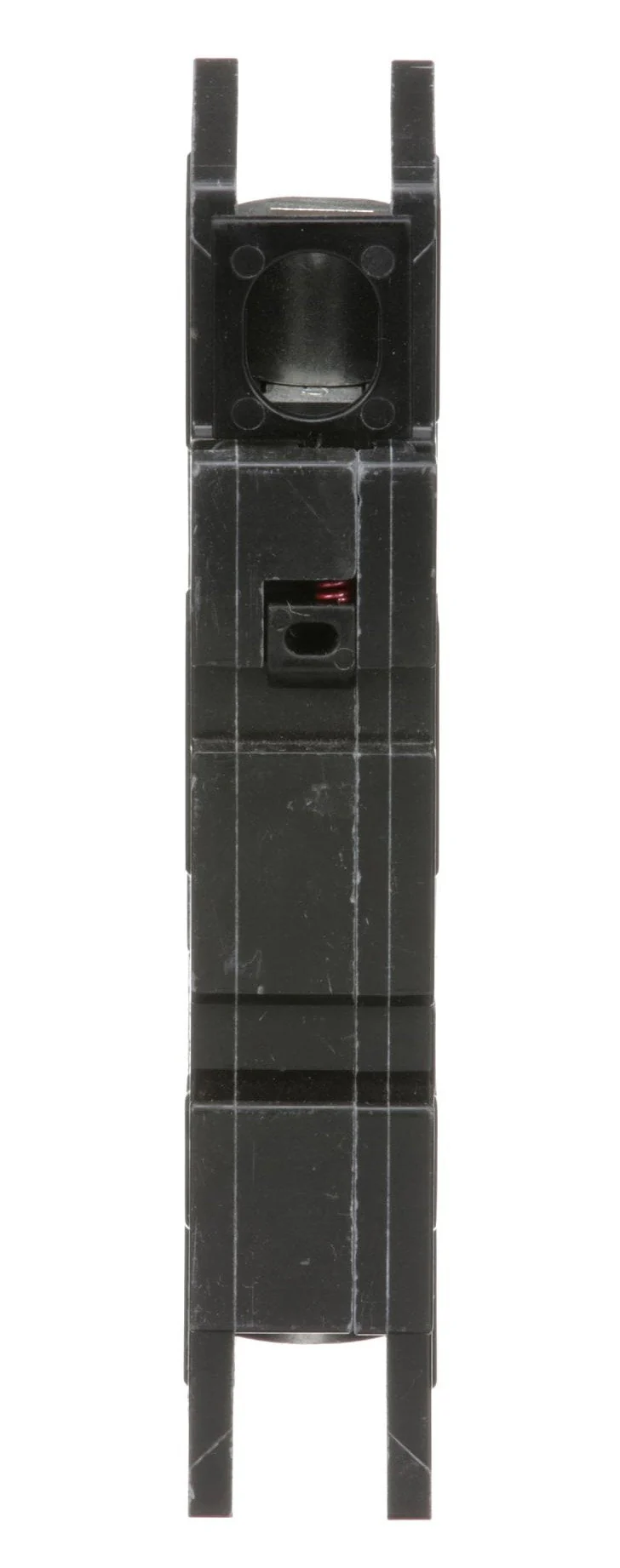

QOU115 - Square D - 15 Amp Circuit Breaker

QOU115 - Square D Miniature Circuit Breaker

Square D miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 15 Amps and interrupting rating of 10 kilo-Amps. The 1-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 2 AWG. It has DIN rail/flush/surface mounting and provides protection against over current.

Specifications:

• Product or component type: Miniature circuit-breaker
• Range of product: QOU
• Circuit breaker type: Standard
• Circuit breaker application: HACR and Switching Duty rated
• Line Rated Current: 15 A
• Number of Poles: 1P
• Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC
• Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
• System Voltage: 120 V AC, 120/240 V AC, 48 V DC
• Mounting mode: Unit mount
• AWG gauge: AWG 14...AWG 2 (aluminium/copper)
• Height: 4.05 in
• Depth: 2.95 in
• Width: 0.75 in
• Product certifications: CSA, IEC, UL listed
• Authentic Square D Product
• Dimensions (H x W x L): 4.05" x 0.75" x 2.95"

Alt model: q0u115
