QOB3150VH - Square D - 150 Amp 22kA Circuit Breaker

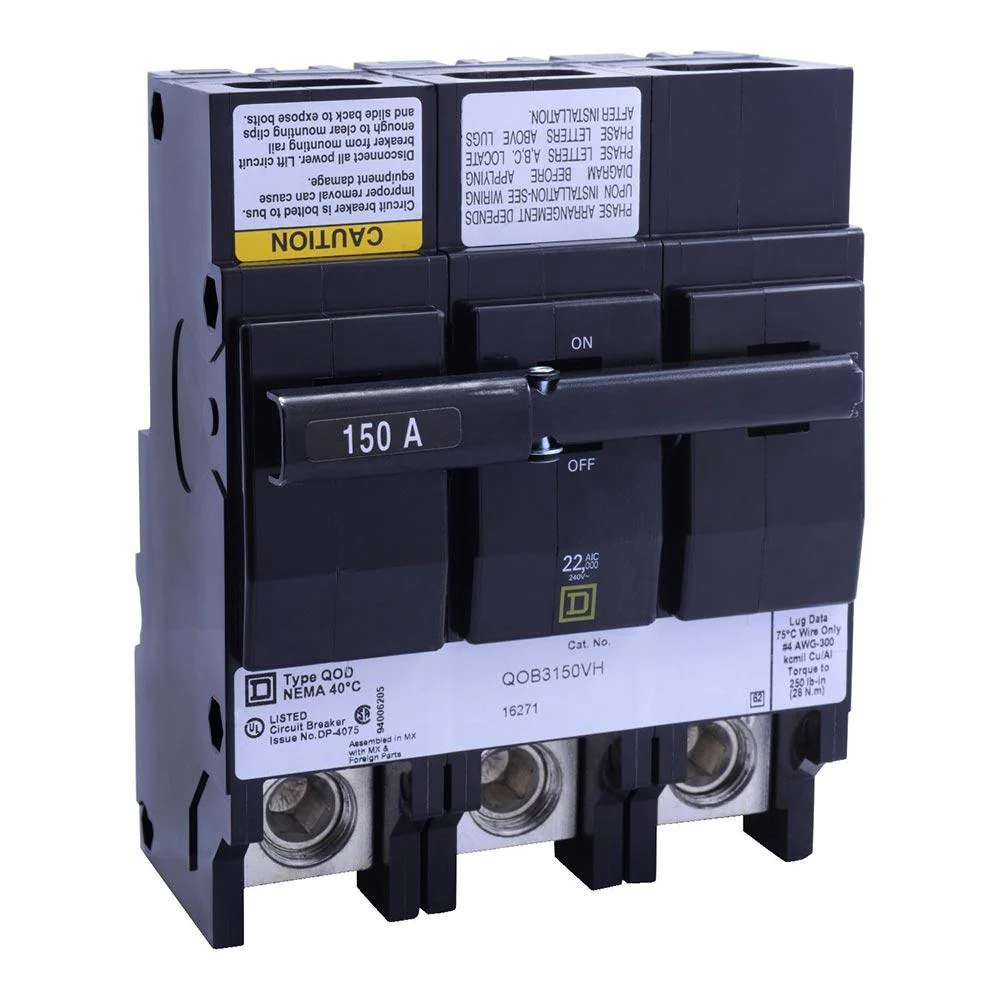

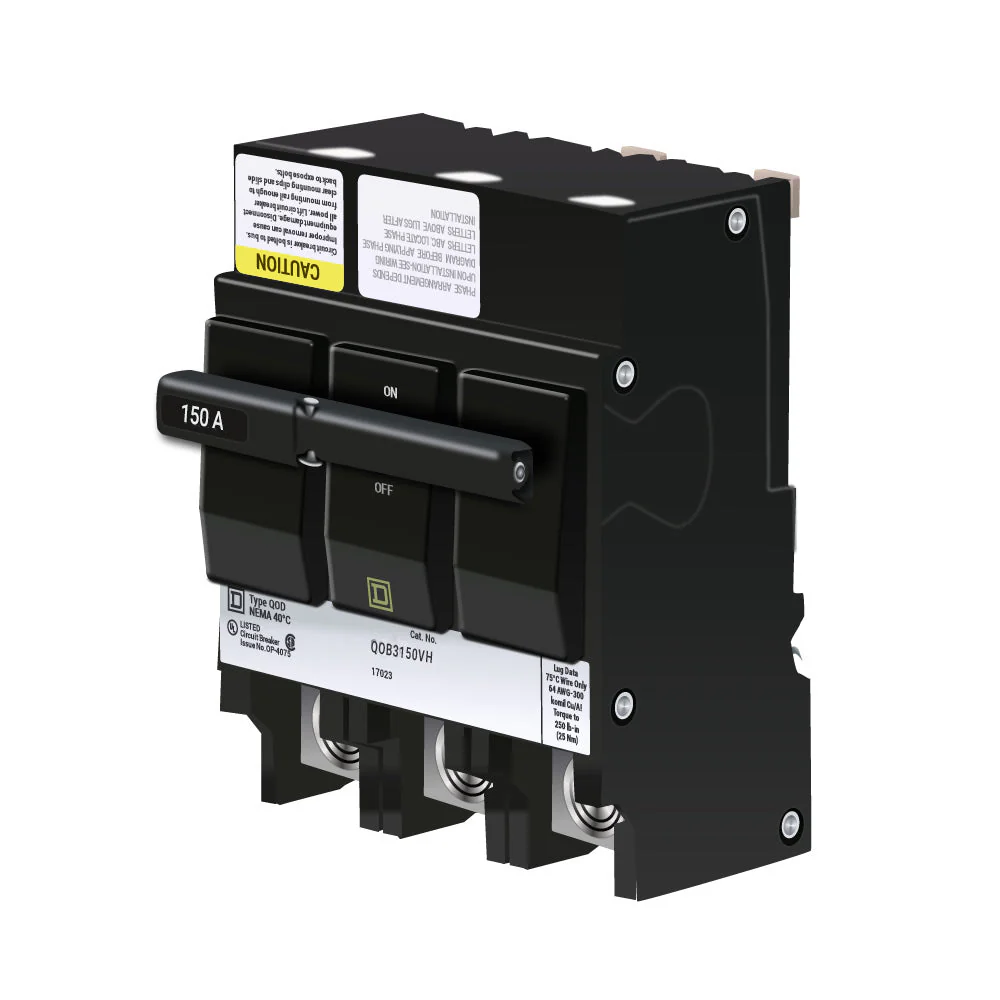

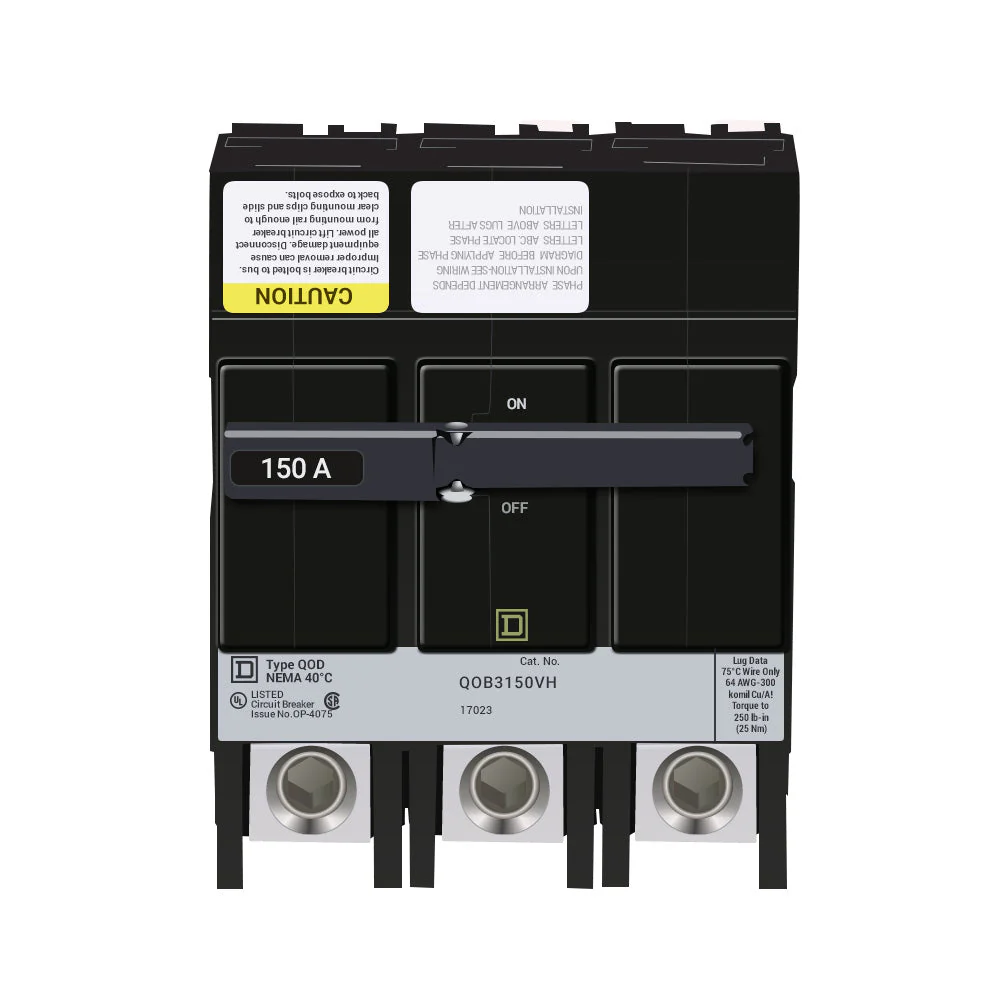

QOB3150VH - Square D 150 Amp 3 Pole 240 Volt Bolt-On Circuit Breaker

Square D miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 15 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 2 AWG. It has DIN rail/flush/surface mounting and provides protection against over current.

Specifications:

• Product: Miniature circuit-breaker
• Cat. No. : QOB3150VH
• Alternate Part No. : QOB-3150VH
• Range: QOB
• Line Rated Current: 150 A
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: Not rated
• Electrical Connection: Box lugs
• Interrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 6
• Wire Size: AWG 4...300 kcmil (copper or aluminium)
• Certifications: CSA, UL listed

• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 5.72" x 4.5" x 4.9"
• 3 phase

Alt model: q0b3150vh
