QOB220VH - Square D - 20 Amp 22kA Breaker

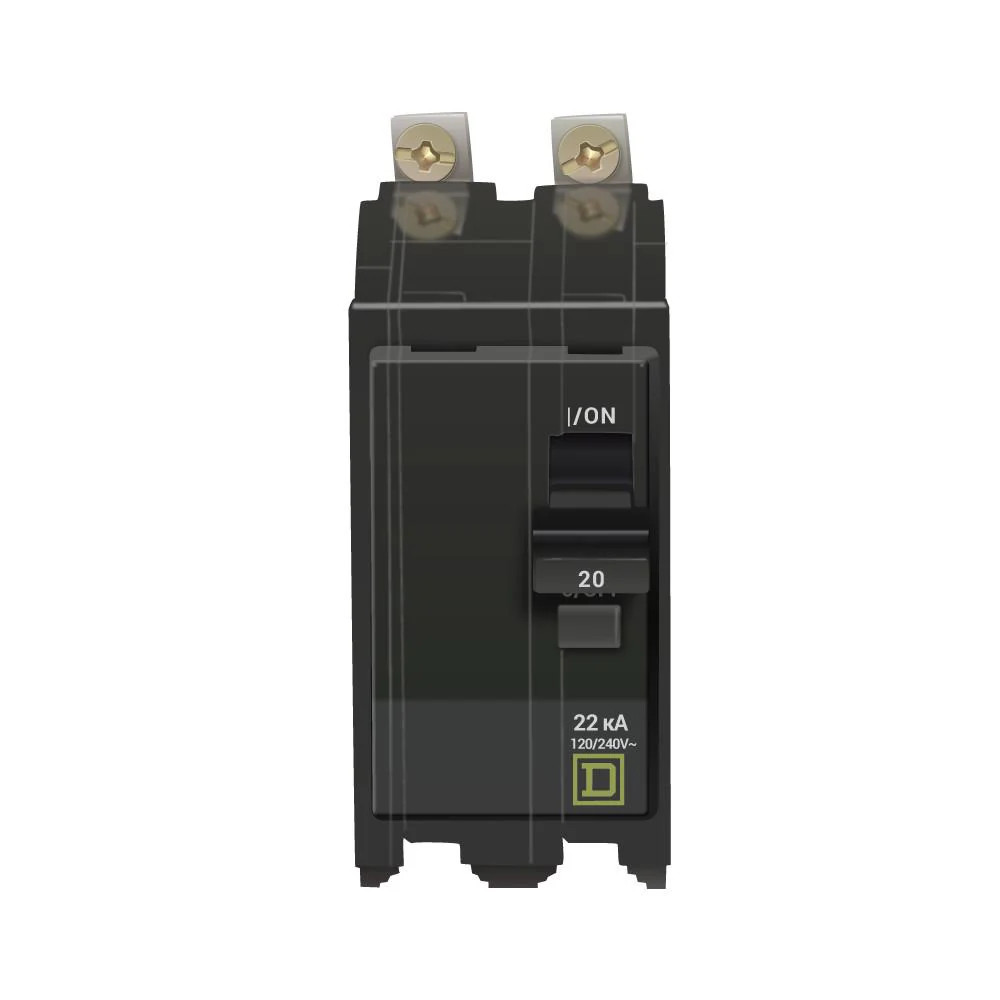

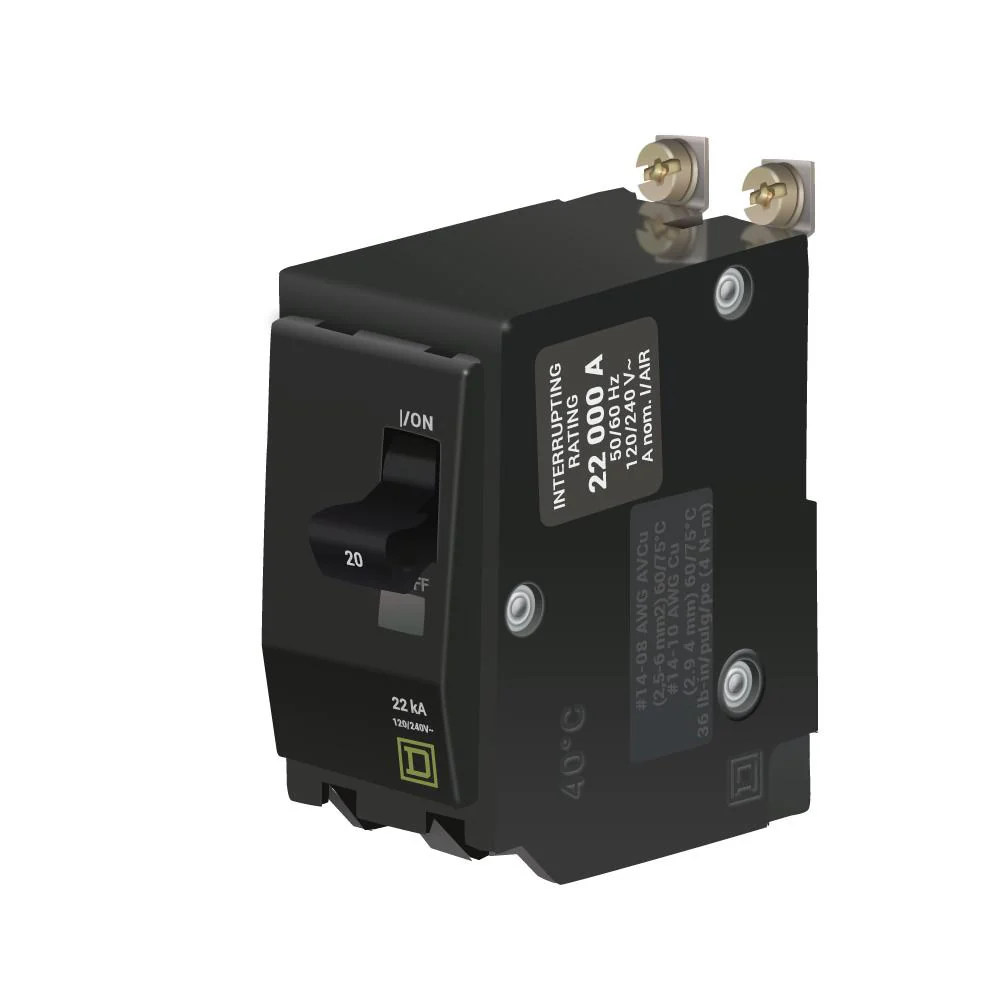

QOB220VH - Square D Bolt-On 20 Amp Breaker

Square D QOB series molded case circuit breaker double pole single phase ampere rating 20-amps voltage rating 240v with standard interrupting rating of 22 kiloampere bolt-on mounting used on nq panelboards.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 20 A
• System Voltage: 120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 2P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Pressure plate
• Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 2
• Wire Size: AWG 14...AWG 8 (copper or aluminium)
• Certifications: CSA, UL listed

• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 3" x 1.5" x 2.91"

Alt model: q0b220vh
