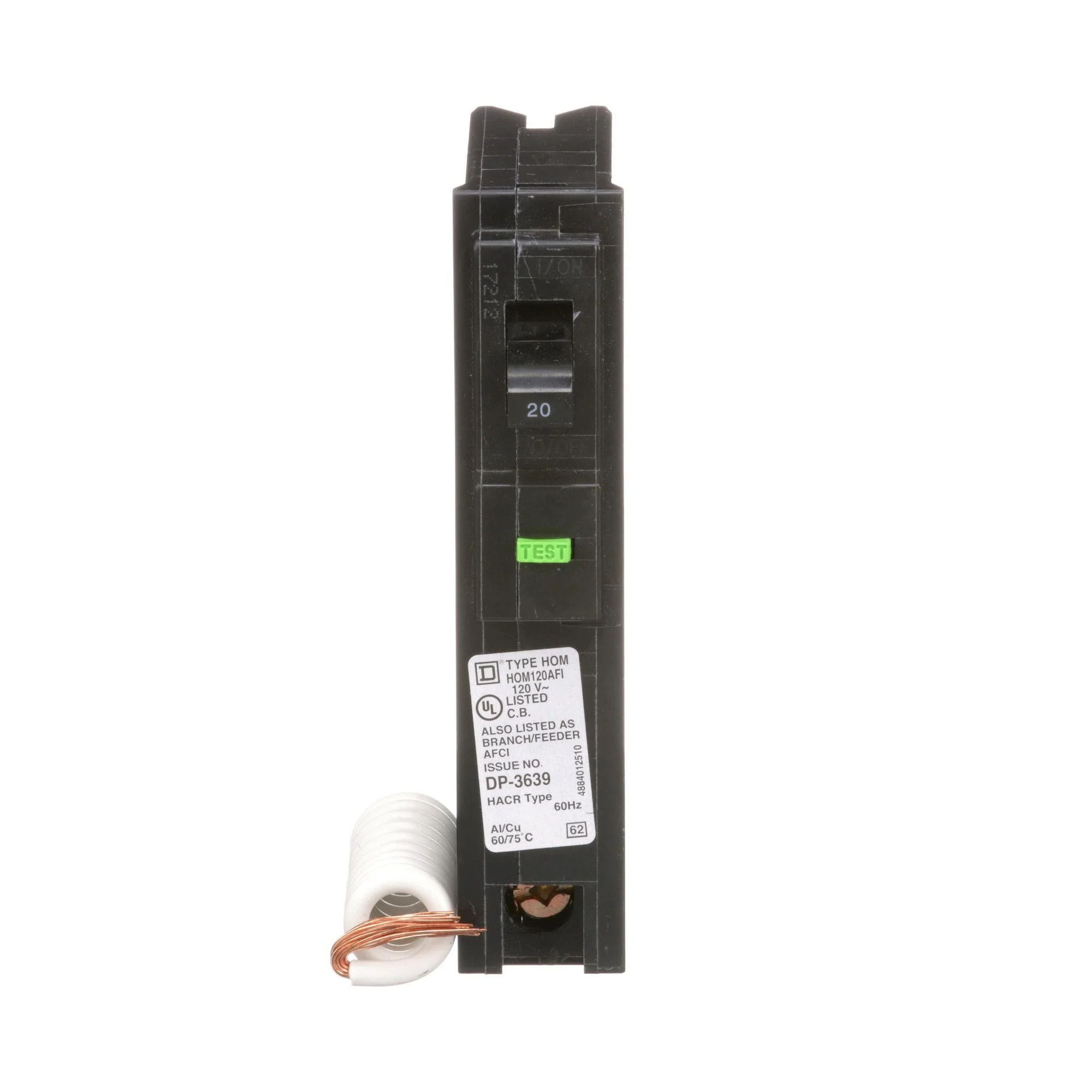

HOM120AFI - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - HOM120AFI - Square D Molded Case Circuit Breakers
-
Part Number:
HOM120AFI -
Manufacturer:
-
Family:
Homeline -
Pole:
1 -
Amp:
20 -
Volt:
120 -
Phase:
1
-
Category:
-
Connection:
Plug-In -
Type:
HOM -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@120V
Dimensions
-
Dimensions (HxWxD):
3.13 x 1.0 x 2.98 -
Weight:
0.64 lbs
Standards
Product Description - HOM120AFI - Square D Molded Case Circuit Breakers
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline arc fault circuit interrupters provide arc fault protection in accordance with the NEC and UL1699. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
