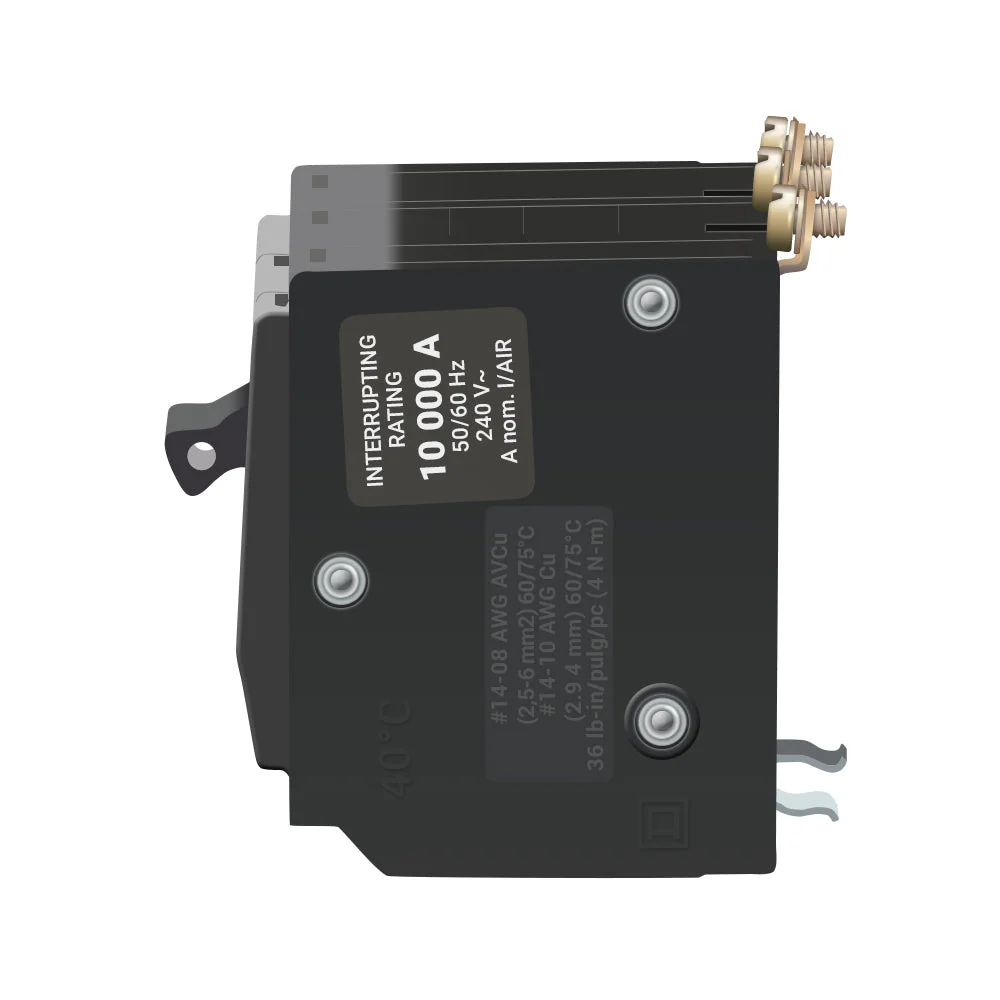

QOB325 - Square D - 25 Amp Circuit Breaker

QOB325 - Square D Bolt-On 25 Amp Breaker

Schneider Electric/Square D Miniature circuit breaker with Visi-Trip indicator has an integrated pressure plate to offer protection against damage to flexible lines. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 25 Amps and short-circuit current rating of 10 kilo-Amps. Circuit breaker has interrupting current rating of 5 kilo-Amps at 48 VDC.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 25 A
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 48 V DC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Pressure plate
• Number of Panel Spaces: 3
• Wire Size: AWG 14...AWG 8 (copper or aluminium)
• Height: 3 in
• Depth: 2.91 in
• Authentic Schneider Electric / Square D Product
• 3 phase

Alt model: q0b325
