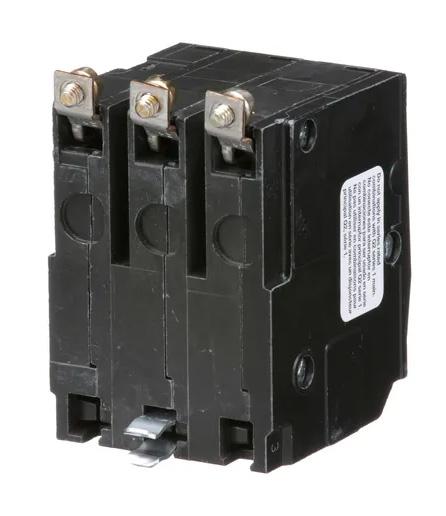

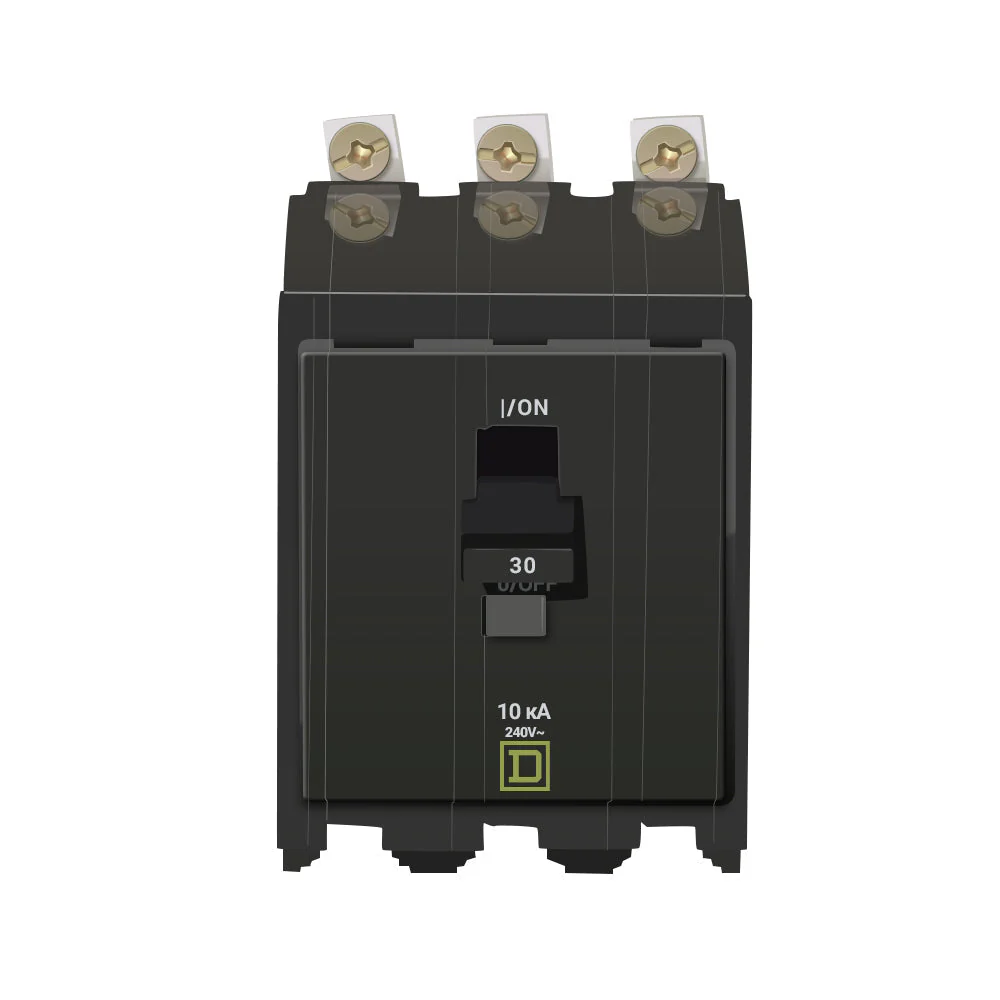

QOB330 - Square D - 30 Amp Circuit Breaker

QOB330 - Square D Bolt-On 30 Amp Breaker

Schneider Electric/Square D Miniature circuit breaker with visi-trip indicator has an integrated pressure plate to offer protection against damage to flexible lines. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 30 Amps and short-circuit current rating of 10 kilo-Amps.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 30 A
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Pressure plate
• Inturrupt Rating: 5 kA at: 48 V DC, 10 kA at, 120/240 V AC 50/60 Hz, 10 kA at: 240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 3
• Wire Size: AWG 14...AWG 8 (copper or aluminium)
• Height: 3 in
• Depth: 2.91 in
• Authentic Schneider Electric / Square D Product
• Voltage Rating: 240 Volt
• 3 phase

Alt model: q0b330
