FHP36030 - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - FHP36030 - Square D Molded Case Circuit Breakers
-
Part Number:
FHP36030 -
Manufacturer:
-
Family:
FHP Series -
Pole:
3 -
Amp:
30 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
F Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@480V
Dimensions
-
Dimensions (HxWxD):
6.4 x 4.5 x 4.13 -
Weight:
8.0 lbs
Standards
Product Description - FHP36030 - Square D Molded Case Circuit Breakers

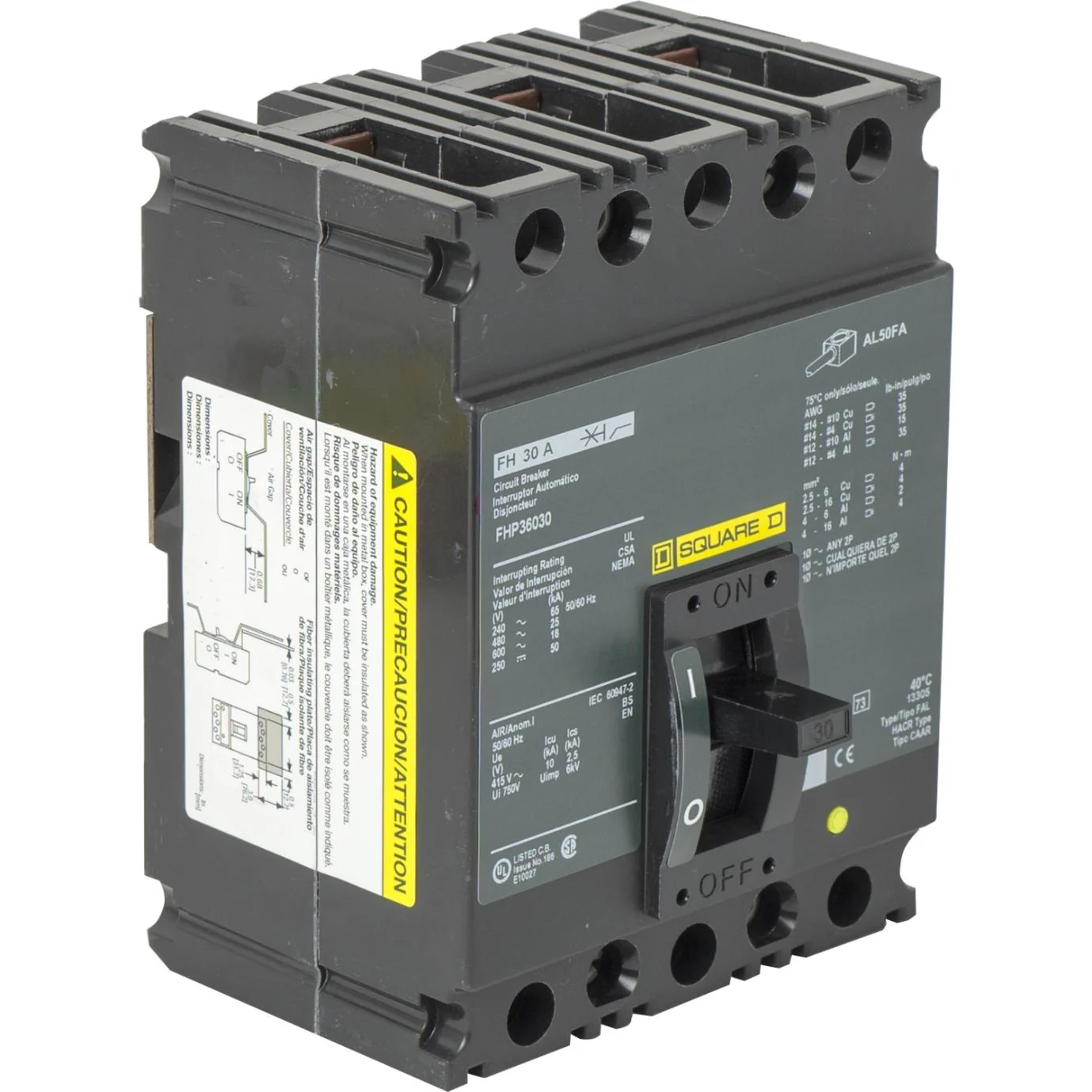

The FHP36030 is a type FHP molded case circuit breaker from Square D's FHP Series. It features 3 poles (3P) operating in three phases (3PH), with a current rating of 30A at 600V. With a high interrupting capacity of 25kA at 480V, it ensures reliable protection for electrical circuits. This Bolt-On circuit breaker provides both Long-Time and Instantaneous trip functions and includes load side lug terminals. It is designed for Thermal Magnetic applications, providing robust protection in various industrial environments.
