QOB135 - Square D - 35 Amp Circuit Breaker

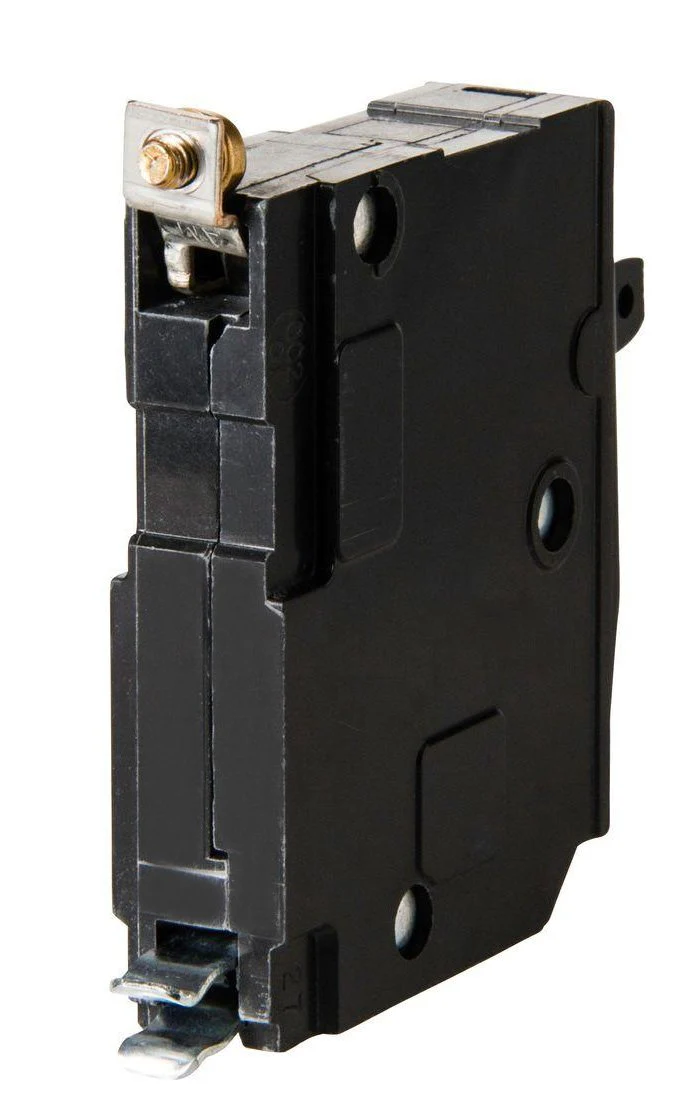

QOB135 - Square D Bolt-On Circuit Breaker

Square D QOB series single pole 35 ampere bolt-on molded case circuit breaker with maximum voltage rating of 120V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 120V complete with (LI) long-time and instantaneous trip functions suitable for QOB Series load centers.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 35 A
• System Voltage: 120 V AC, 120/240 V AC, 48 V DC
• Mounting Type: Bolt-on
• Number of Poles: 1P
• Circuit Breaker Type: Standard
• Ratings: HACR rated
• Electrical Connection: Box lugs
• Number of Panel Spaces: 1
• Wire Size: AWG 8...AWG 2 (copper or aluminium)
• Height: 3.12 in
• Depth: 2.91 in
• Width: 0.75 in
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Schneider Electric / Square D Product
• Dimensions (H x W x L): 3.12" x 0.75" x 2.91"

Alt model: q0b135
