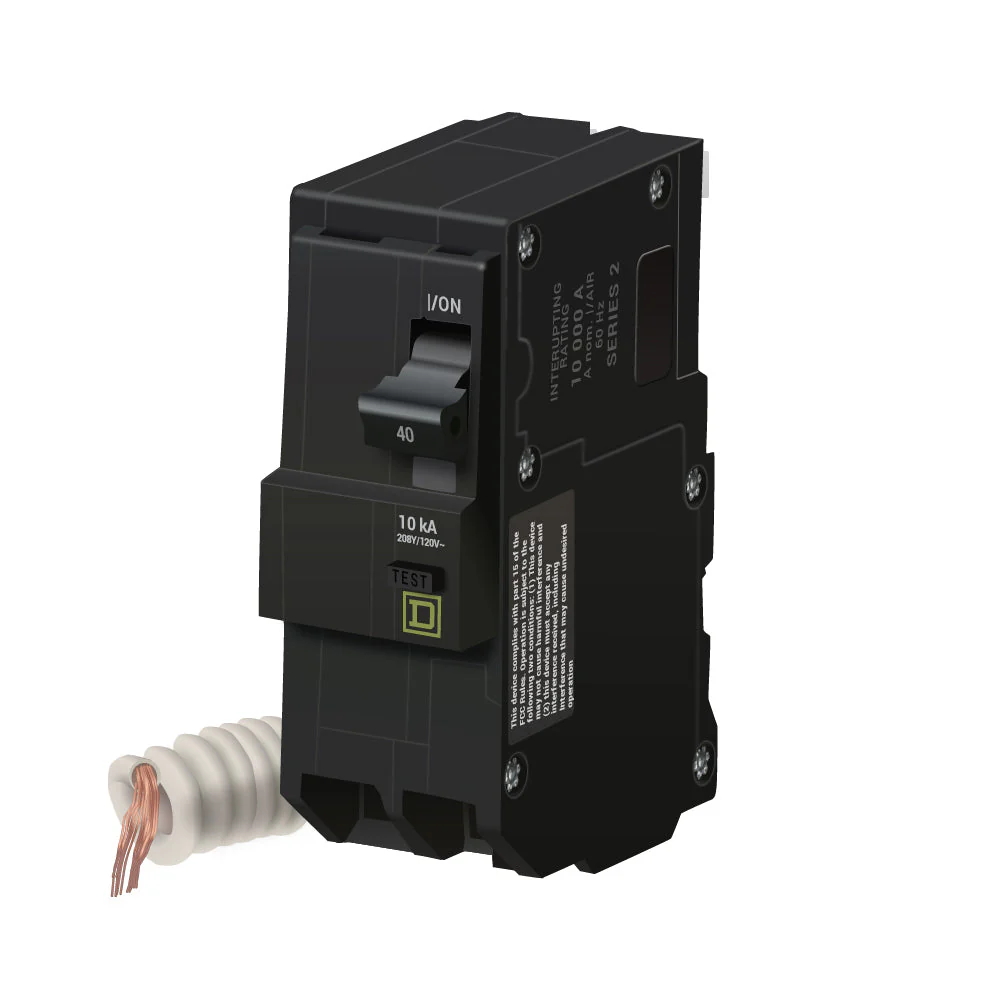

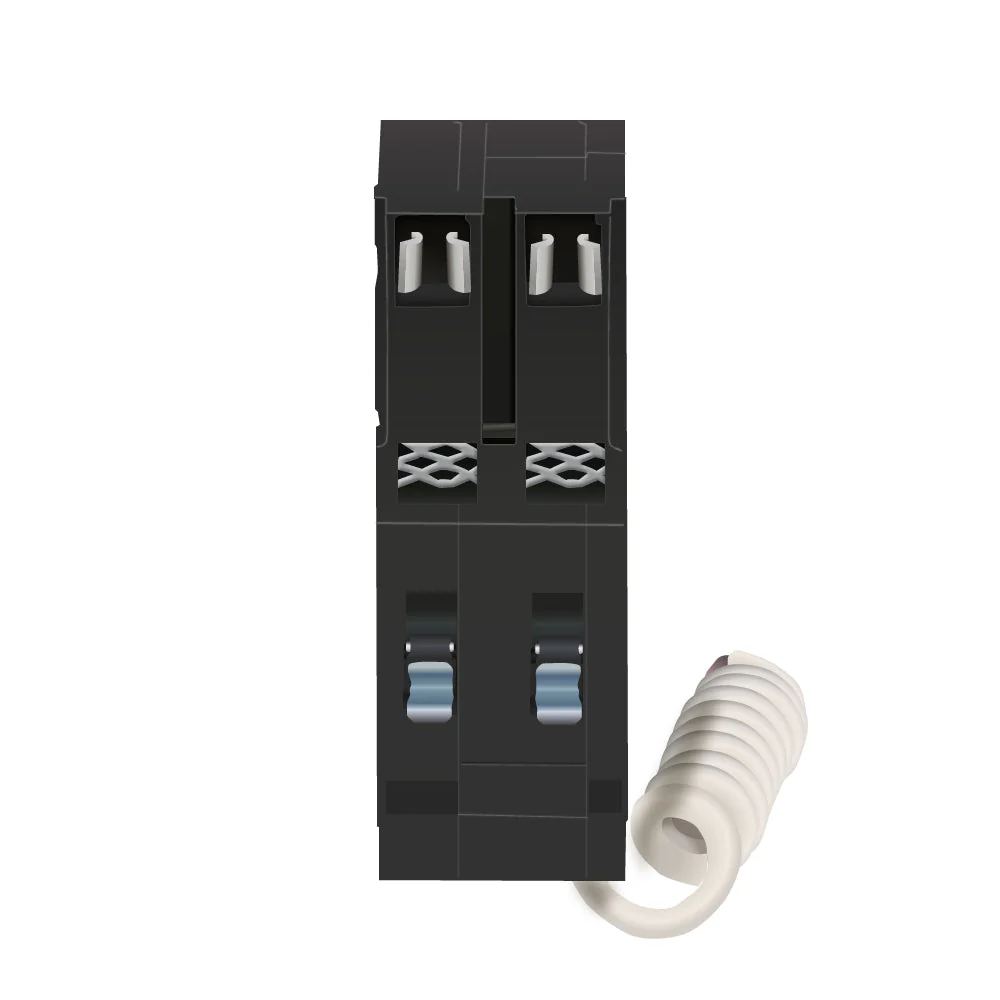

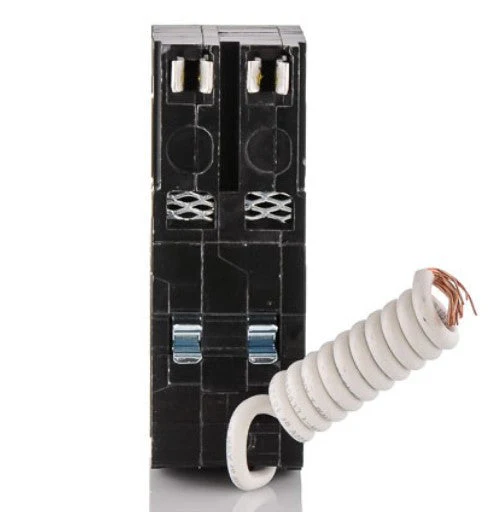

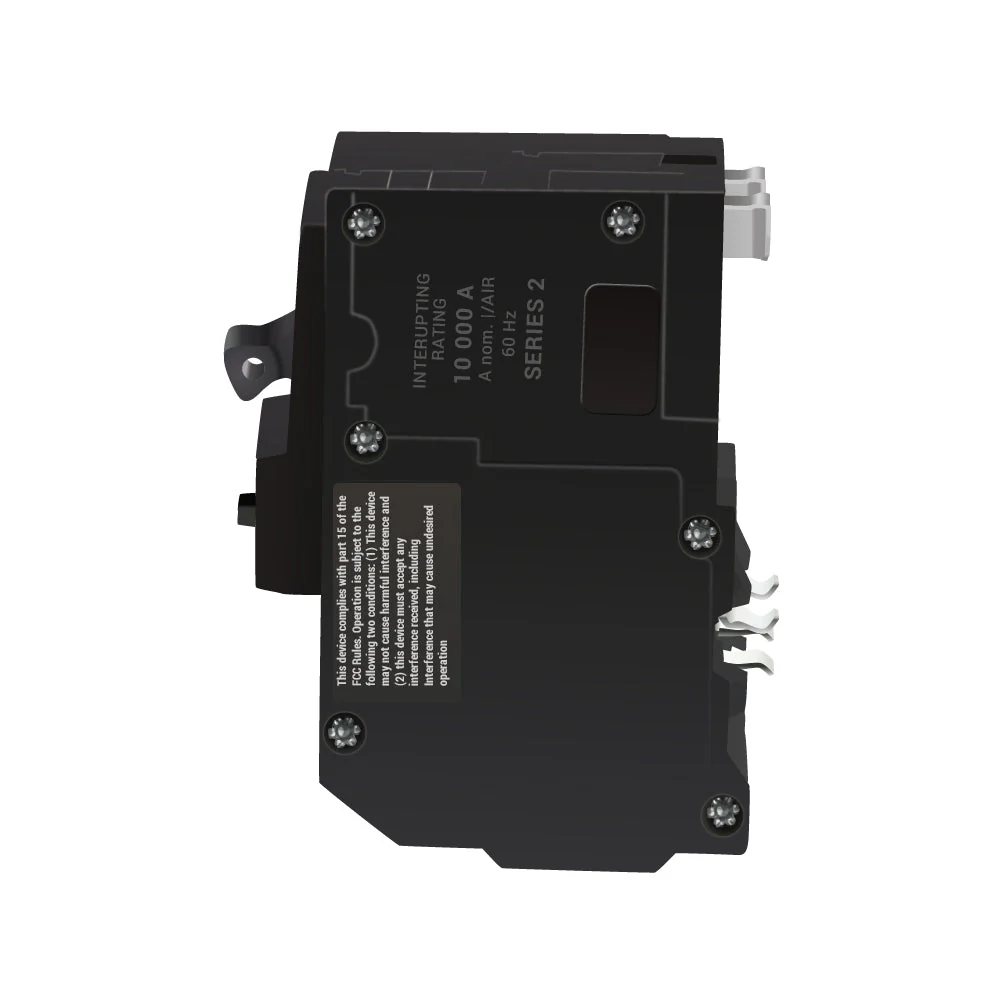

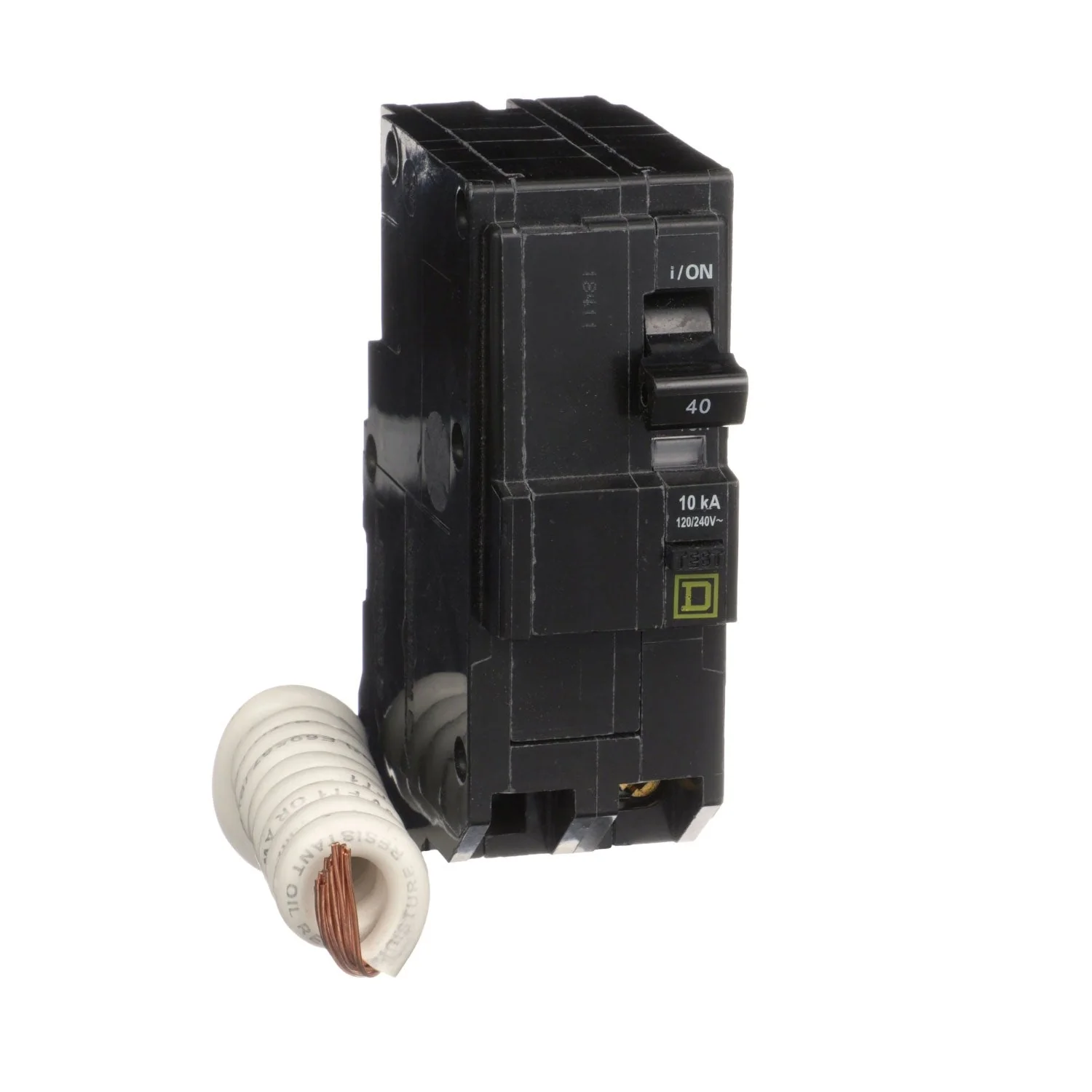

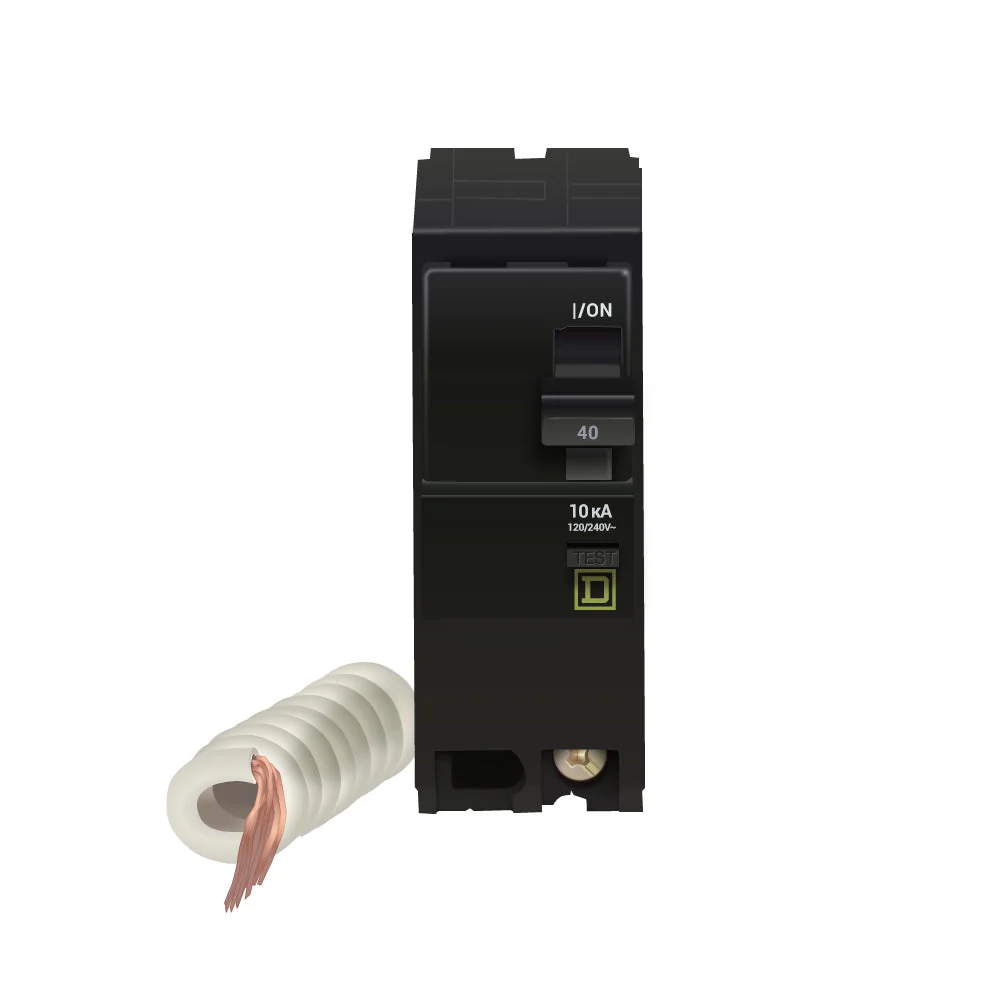

QO240EPD - Square D - 40 Amp GFEP Circuit Breaker

QO240EPD - Square D Plug-In Ground Fault Equipment Protection Breaker

Square D QO series double pole 40 ampere plug-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V class B ground fault protection for equipment with (LI) long-time and instantaneous trip functions suitable for QO Series load centers.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 40 A
• System Voltage: 120 V AC, 120/240 V AC
• Mounting Type: Plug-in
• Number of Poles: 2P
• Circuit Breaker Type: Ground fault protecting class B 30 mA
• Ratings: Not rated
• Electrical Connection: Box lugs
• Inturrupt Rating: 10 kA at: 120/240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 2
• Wire Size: AWG 12...AWG 4 (aluminium), AWG 14...AWG 6 (copper)
• Certifications: CSA, UL listed

• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 4.12" x 1.5" x 2.91"

Alt model: q0240epd
