9001BW240 - Square D - Push Buttons
Overview
Product Specifications - 9001BW240 - Square D Push Buttons
-
Part Number:
9001BW240 -
Manufacturer:
-
Amp:
5 -
Volt:
600
-
Category:
Standards
Product Description - 9001BW240 - Square D Push Buttons

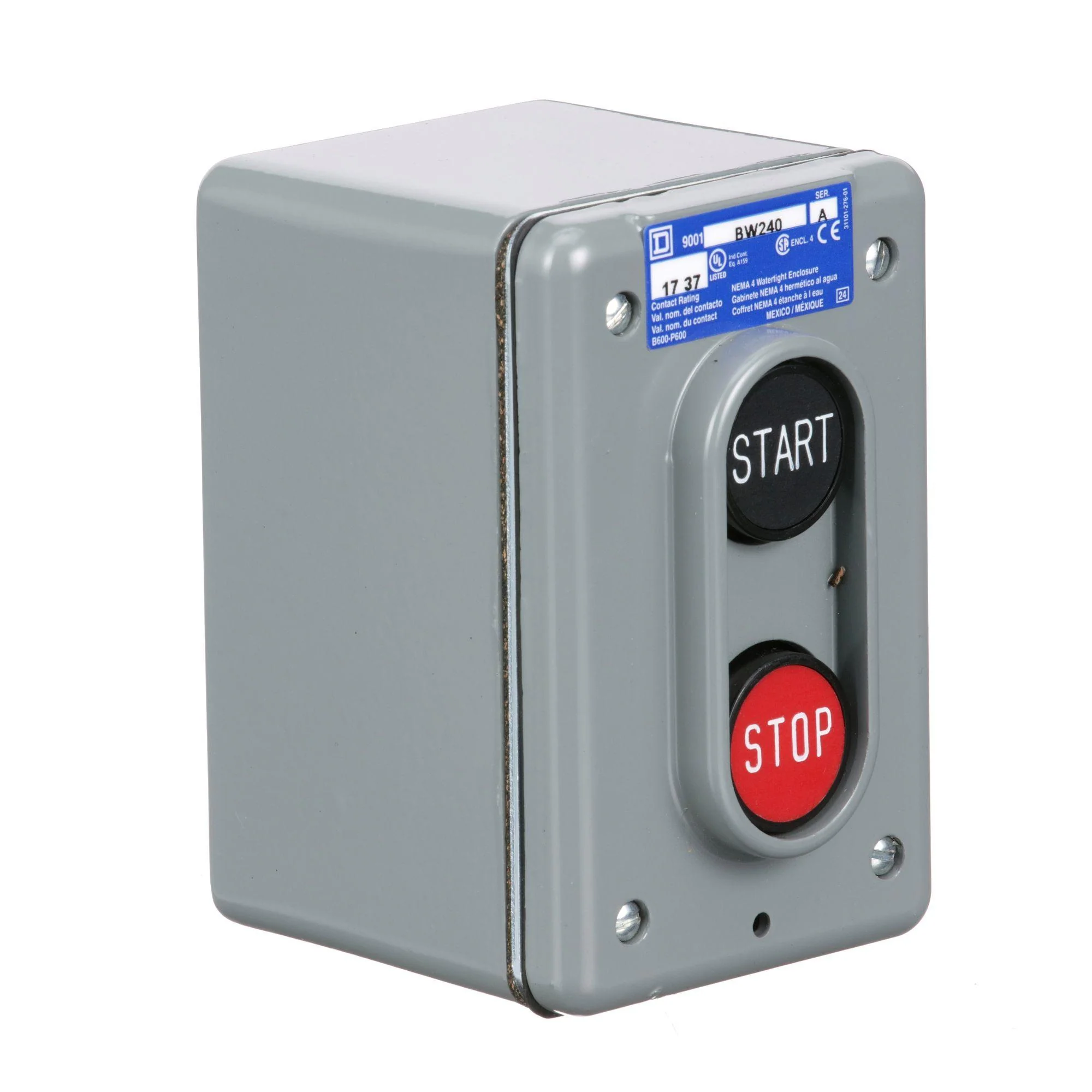

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two round momentary push buttons. It has a START push button with a normally open contact. It has a STOP push button with a normally closed contact. This NEMA 4 watertight and dusttight control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Original: $223.99
-70%$223.99
$67.20Product Information
