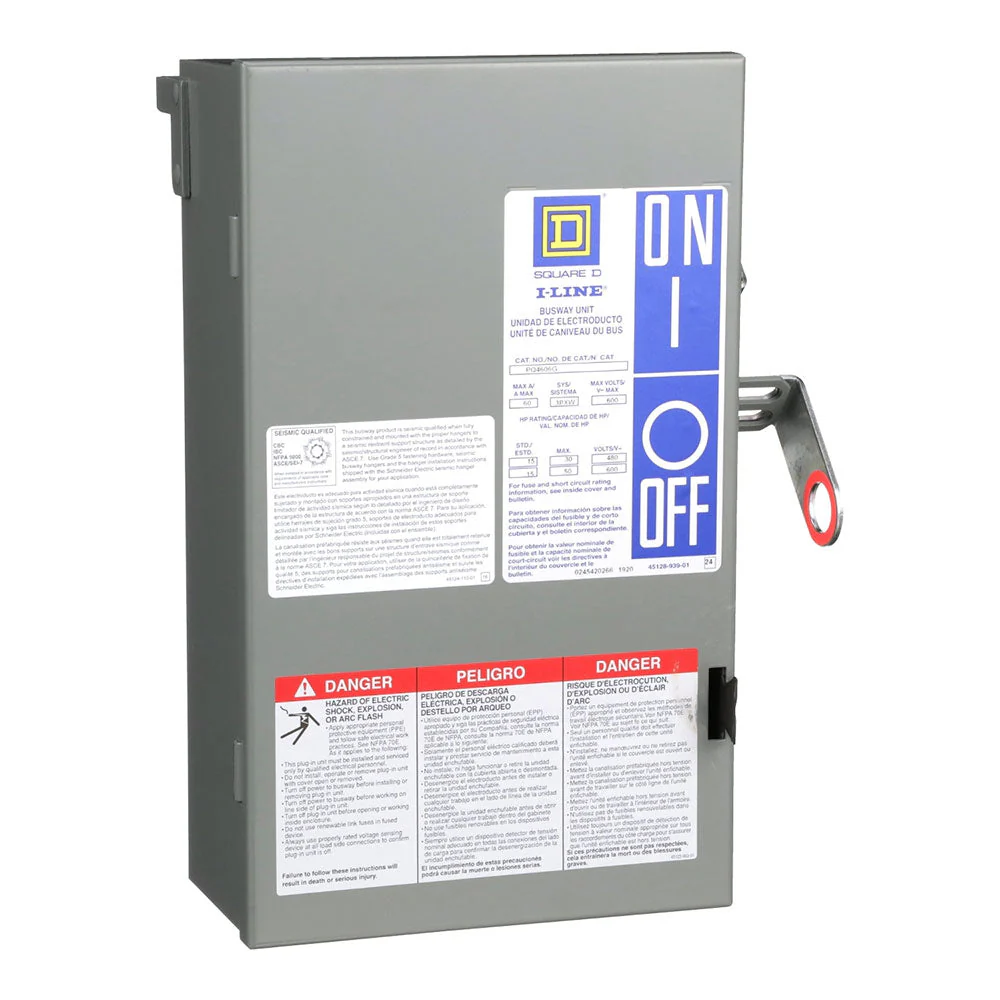

PQ4606G - Square D - 60 Amp Fusible Busway Plug

PQ4606G - Square D Fusible Busway Plug

Schneider Electric / Square D PQ 3 Phase Fusible Busway Plug comes with a current rating of 60A and a voltage rating of 600V. This Busway Plug is suitable for use with I-Line aluminum & copper busway systems.

Specifications:

• UPC: 785901309895
• Product Type: Fusible Busway Plug
• Amperage Rating: 60A
• Voltage Rating: 600V
• No. of Phase: 3
• Interrupting Rating: 200 Kiloampere at 480V
• Fuse Class: H K R fuses
• Model: PQ Model
• Series: PQ Series
• Application: Use With I-Line and I-Line II Busway
• Number of Wires: 4-Wire with Integral Ground Bus
• Enclosure Rating: NEMA 1
• Approval: UL Listed and CSA Certified
• Authentic Square D Product
• Dimensions (H x W x L): 8.87" x 15" x 4.67"
