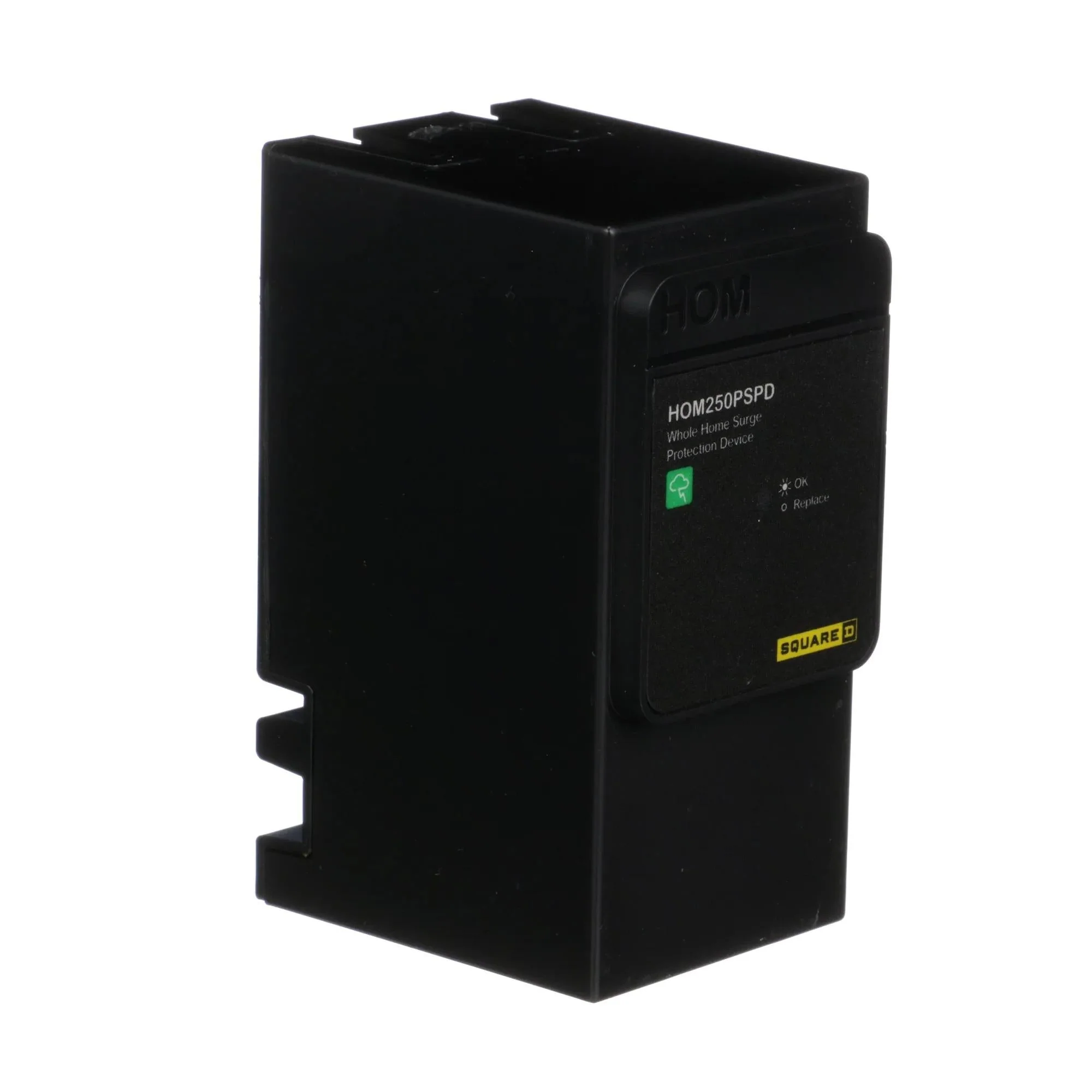

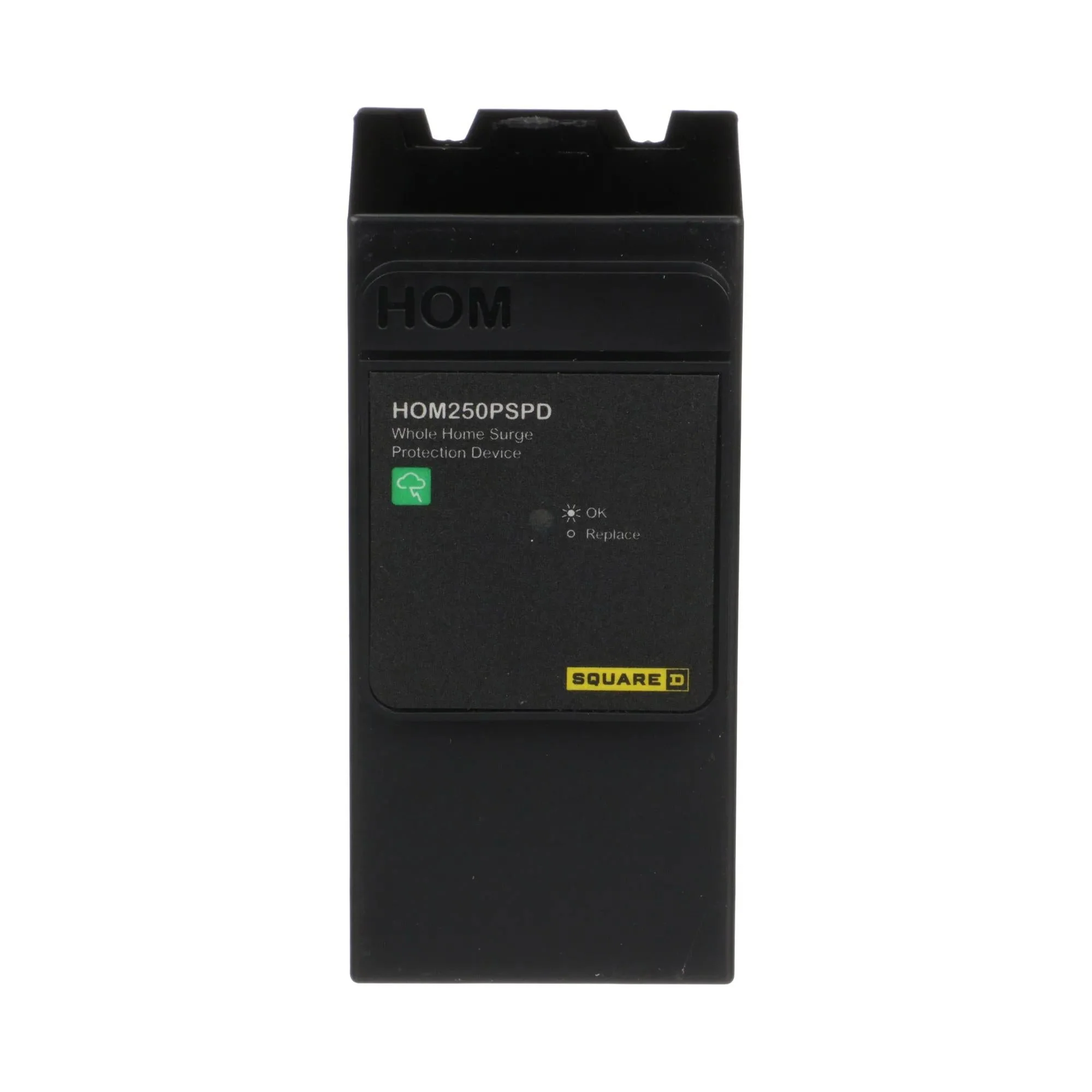

HOM250PSPD - Square D - Surge Protection Device

Overview

Product Specifications - HOM250PSPD - Square D Surge Protection Device

Standards

Product Description - HOM250PSPD - Square D Surge Protection Device

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This is a plug on neutral surge protective device for Homeline load centers. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 2 indoor rating. This surge protection device is rated at 50 kA per phase. This surge protection device has a height of 3.98 inches, a width of 1.97 inches and depth of 2.60 inches. This surge protection device is UL Listed.
