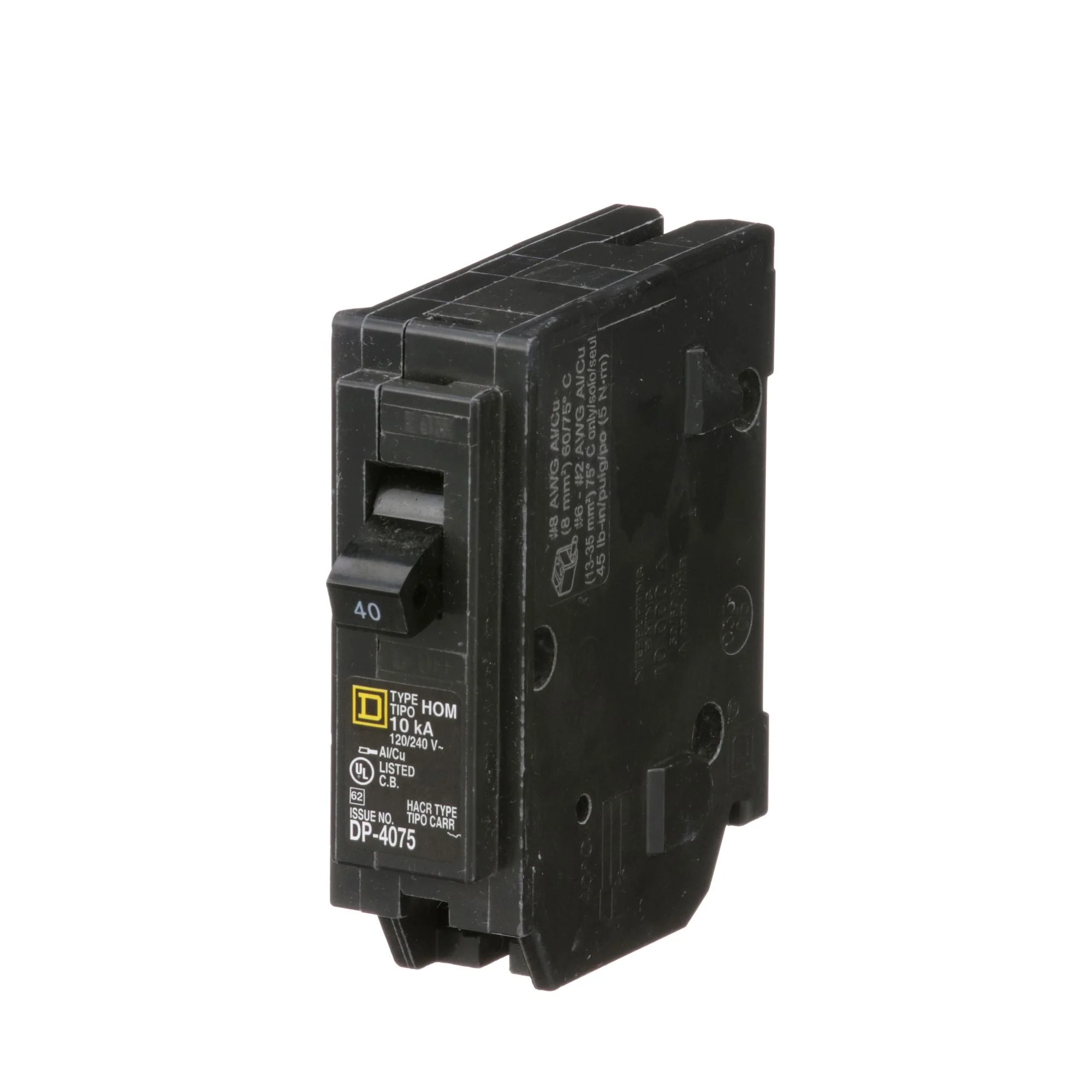

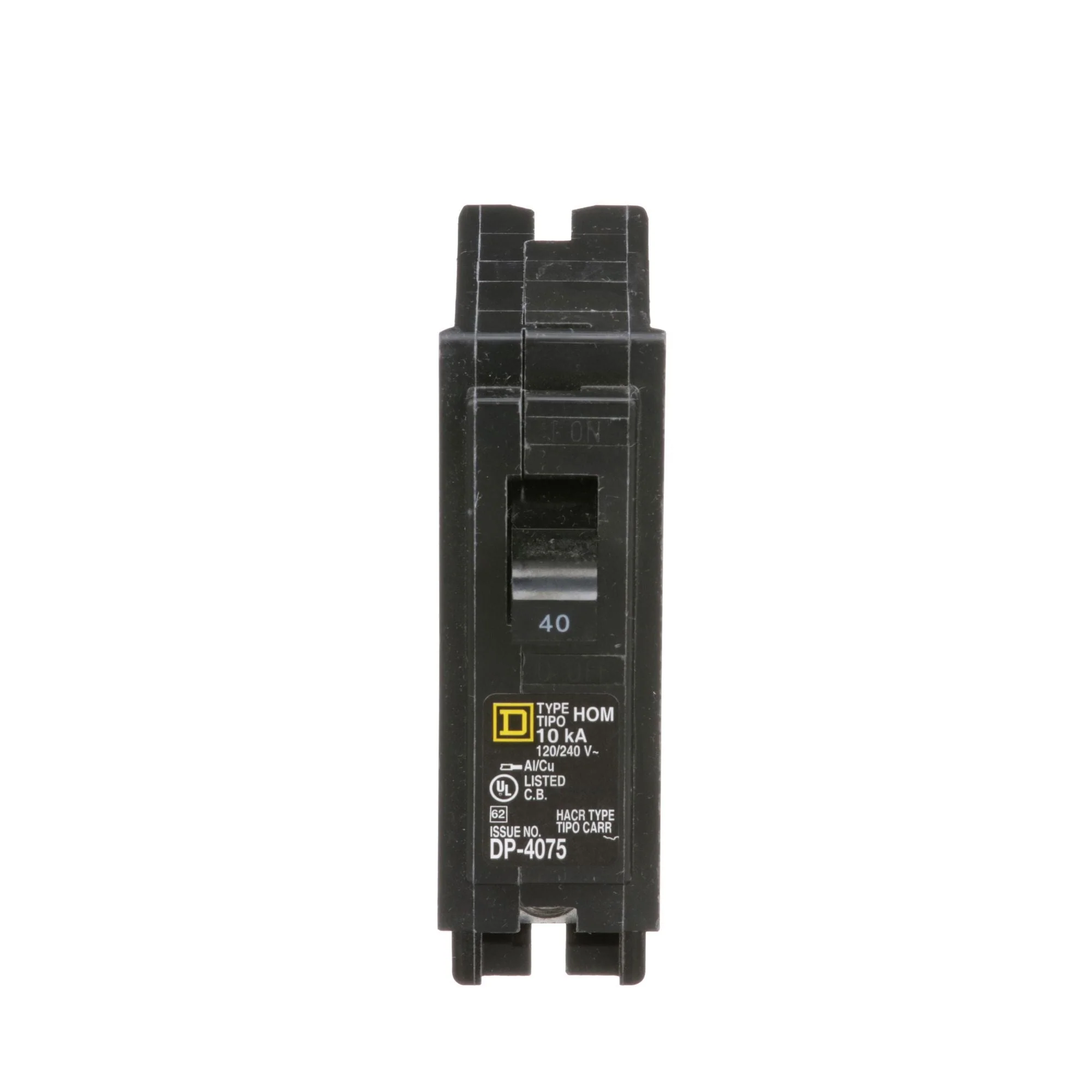

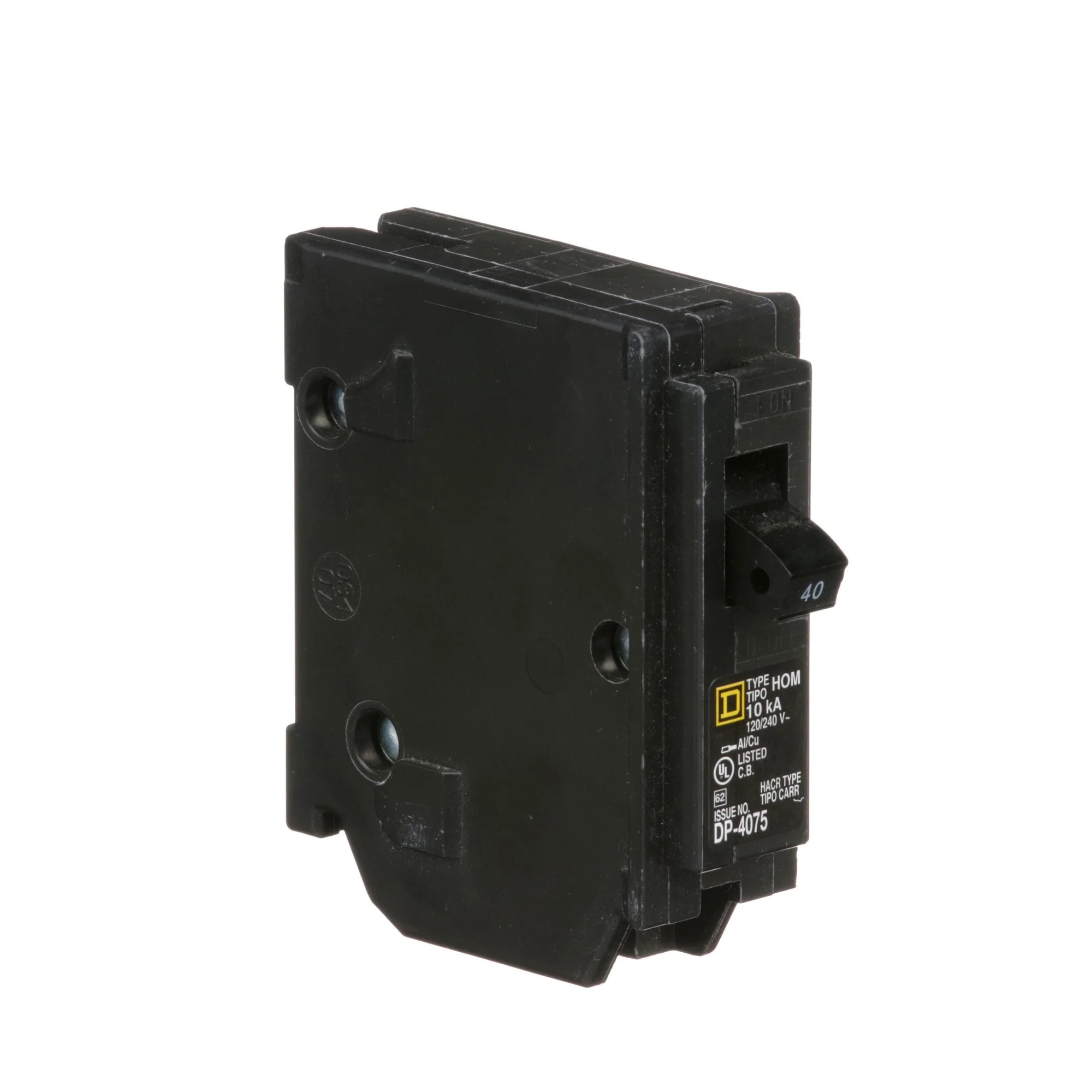

HOM140CP - Square D Homeline - Circuit Breaker
Overview
Product Specifications - HOM140CP - Square D Homeline Circuit Breaker
-
Part Number:
HOM140CP -
Manufacturer:
Schneider Electric / Homeline -
Family:
Homeline -
Pole:
1 -
Amp
40 -
Volt:
120 -
Phase:
1
-
Category:
-
Connection:
Plug-In -
Type:
HOM -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@120V
Dimensions
-
Dimensions (HxWxD):
3 x 1 x 2.5 -
Weight:
1.1 lbs
Standards
Product Description - HOM140CP - Square D Homeline Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 40A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
