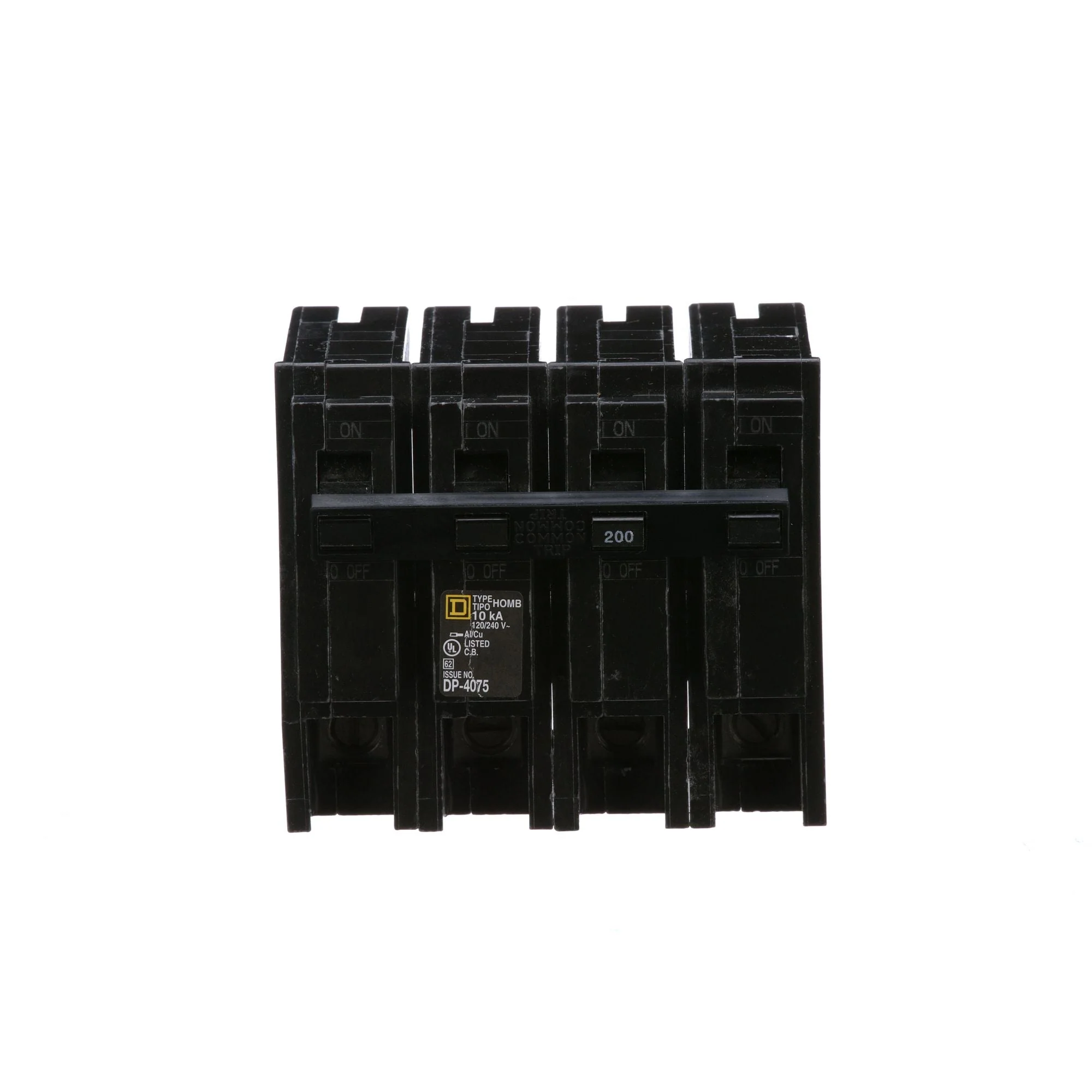

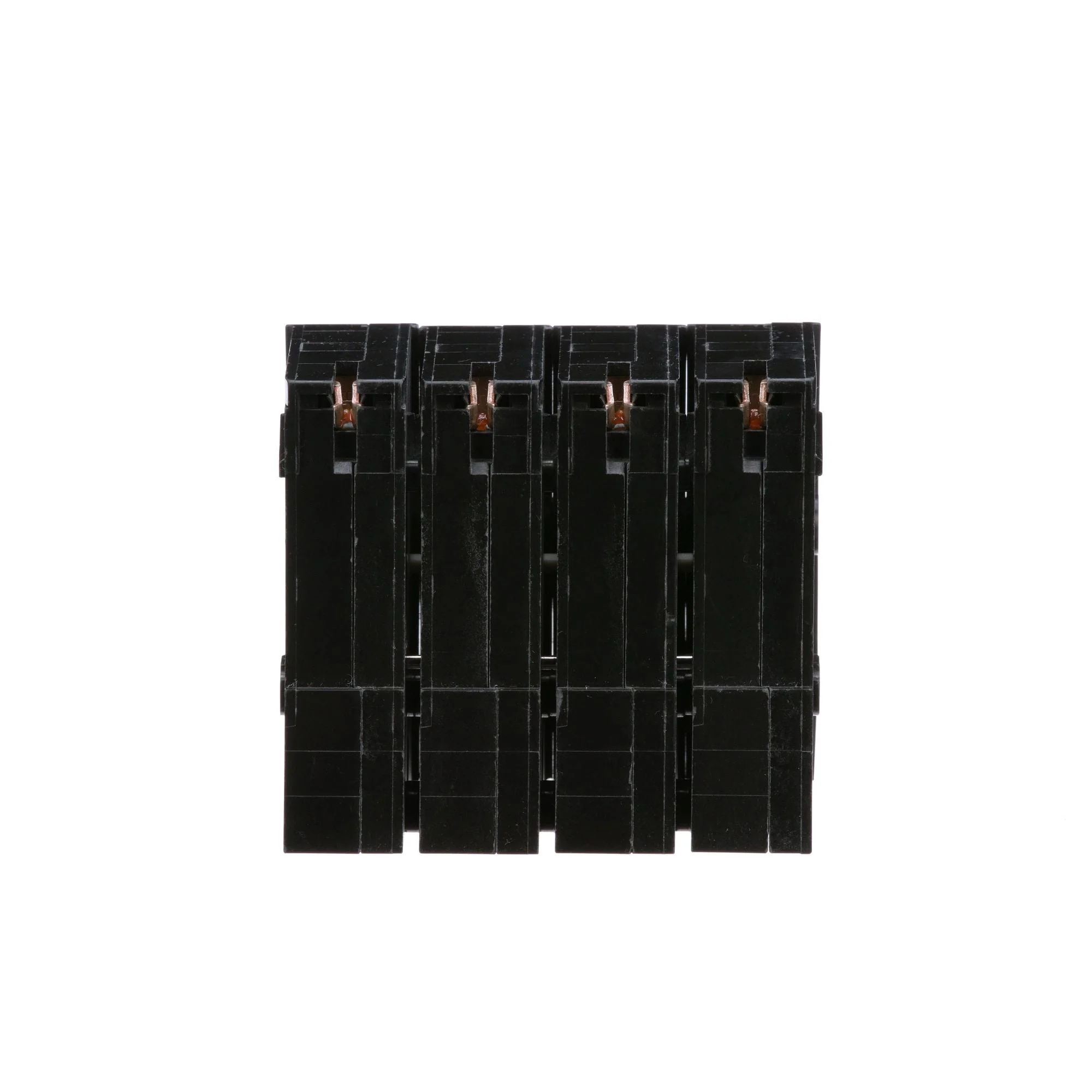

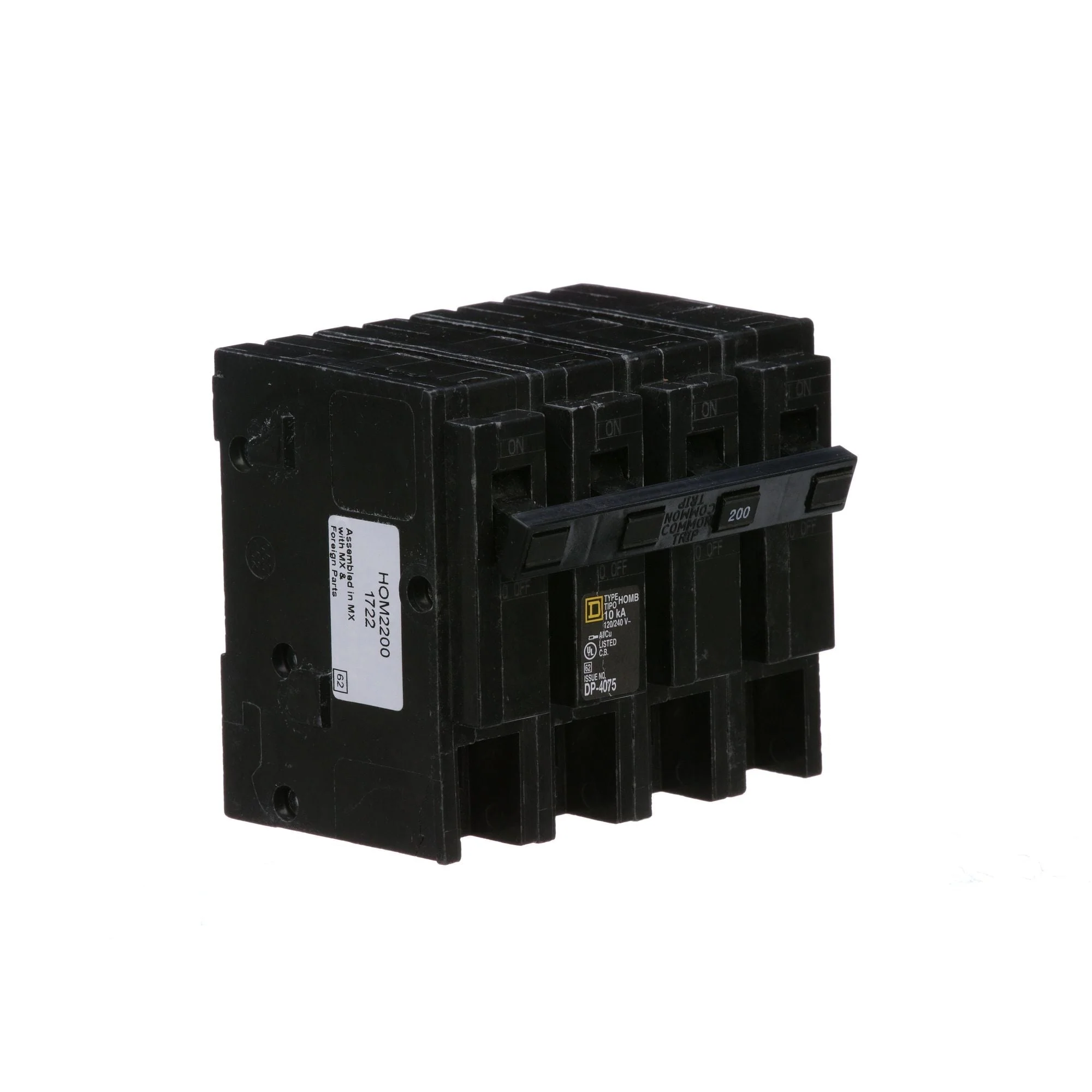

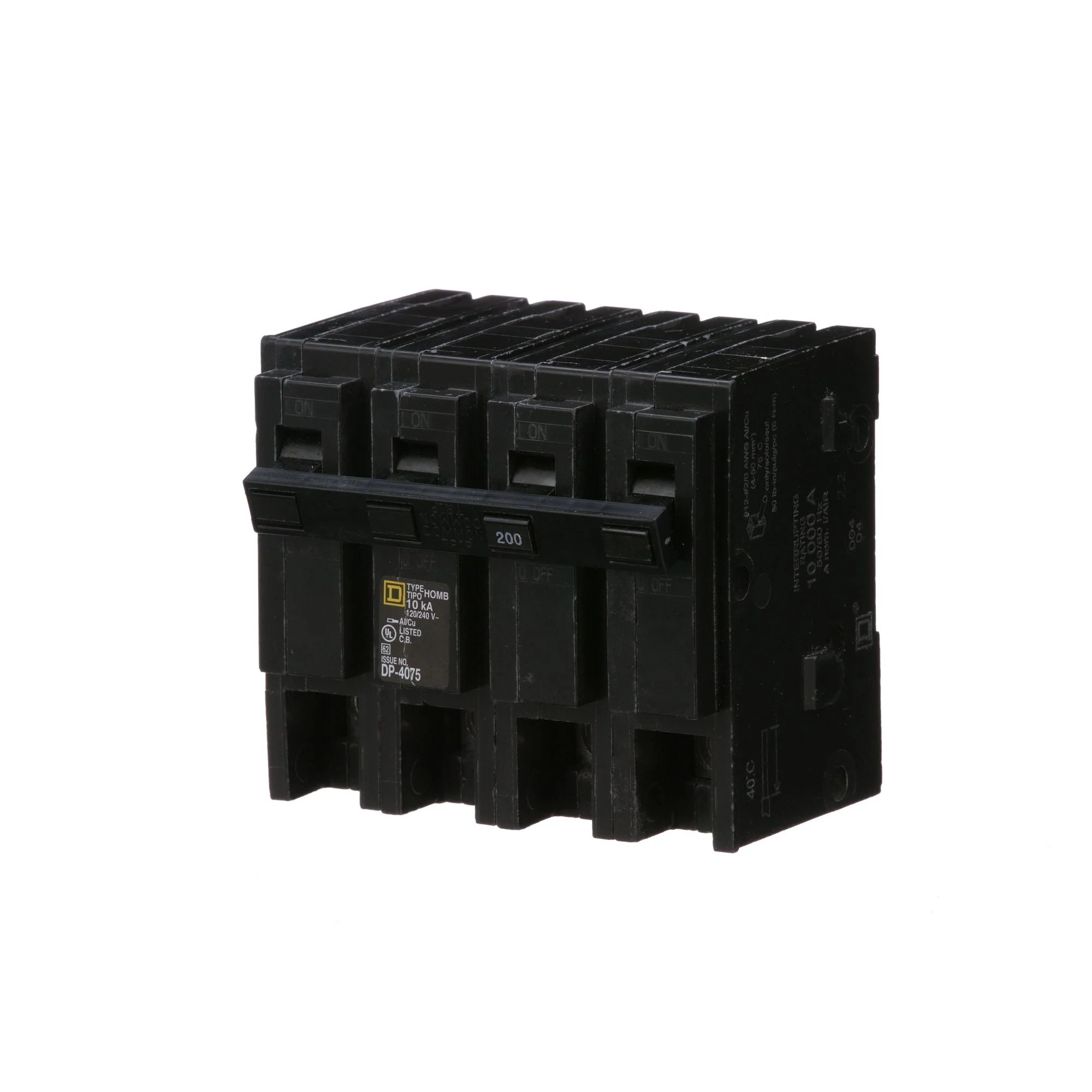

HOM2200CP - Square D Homeline - Main Breaker
Overview
Product Specifications - HOM2200CP - Square D Homeline Main Breaker
-
Part Number:
HOM2200CP -
Manufacturer:
Schneider Electric / Homeline -
Family:
Homeline -
Pole:
2 -
Amp:
200 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Plug-In -
Type:
HOM -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V

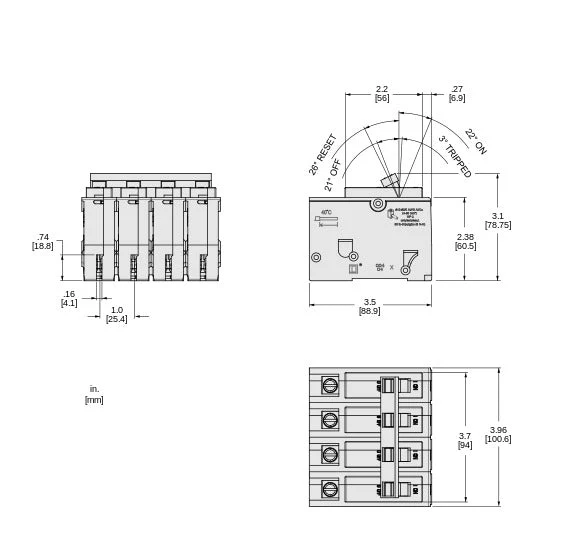

Dimensions
-
Dimensions (HxWxD):
3.13 x 2 x 2.98 -
Weight:
1.76 lbs
Standards
Product Description - HOM2200CP - Square D Homeline Main Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 200A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
