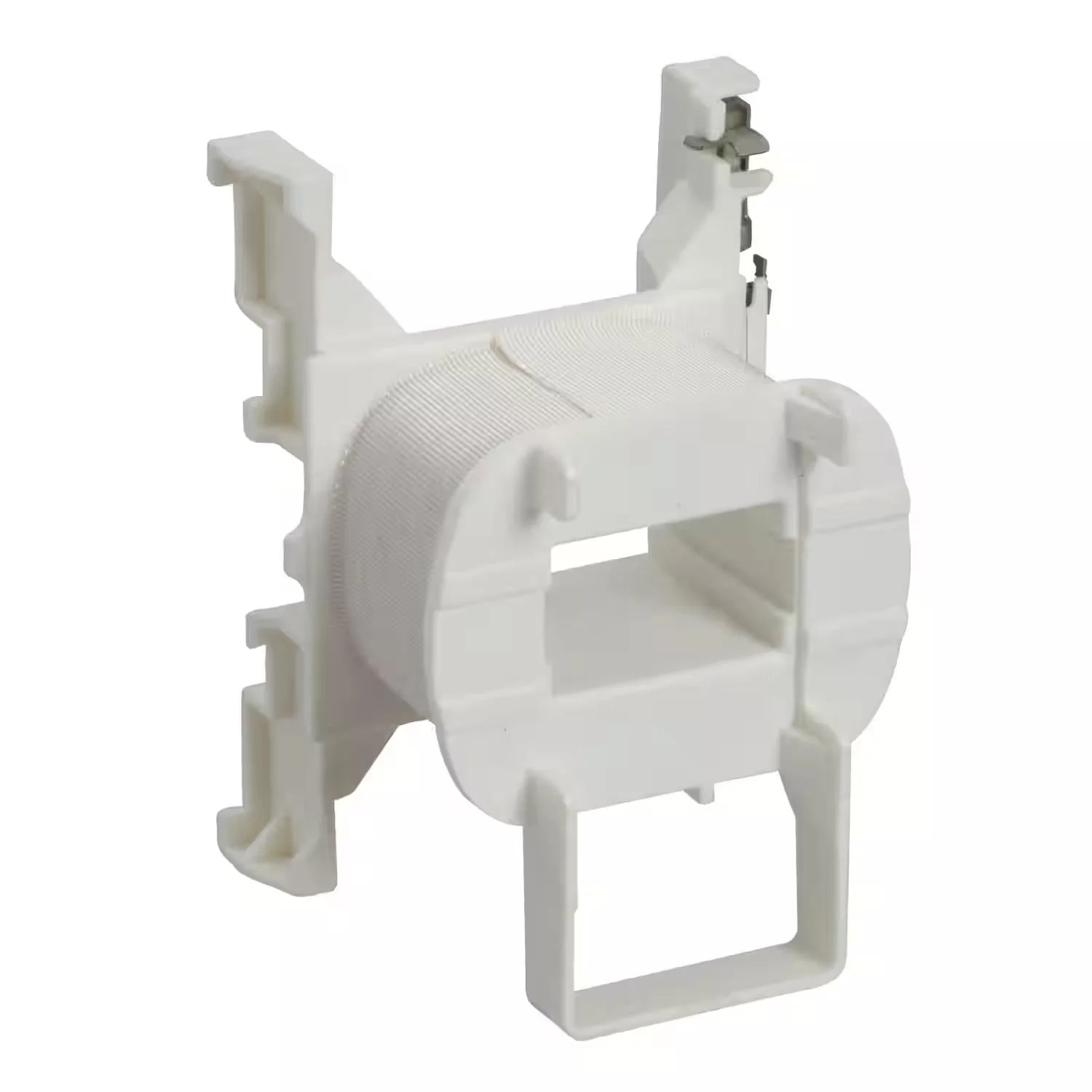

LXD1M7 - Square D - Magnetic Coil

Product image 1

LXD1M7 - Square D - Magnetic Coil

Overview

Product Specifications - LXD1M7 - Square D Magnetic Coil

  • Category:

    Coils

  • Type:

    LXD1

Dimensions

  • Dimensions (HxWxD):

    23 x 16 x 18

  • Weight:

    0.15 lbs

Standards

CSA Approved logo

Product Description - LXD1M7 - Square D Magnetic Coil

TeSys D replacement coil 220V AC 50/60Hz, for TeSys D contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).

$60.00

Original: $199.99

-70%
LXD1M7 - Square D - Magnetic Coil—

$199.99

$60.00

Product Information

Shipping & Returns

Description

Overview

Product Specifications - LXD1M7 - Square D Magnetic Coil

  • Category:

    Coils

  • Type:

    LXD1

Dimensions

  • Dimensions (HxWxD):

    23 x 16 x 18

  • Weight:

    0.15 lbs

Standards

CSA Approved logo

Product Description - LXD1M7 - Square D Magnetic Coil

TeSys D replacement coil 220V AC 50/60Hz, for TeSys D contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).
