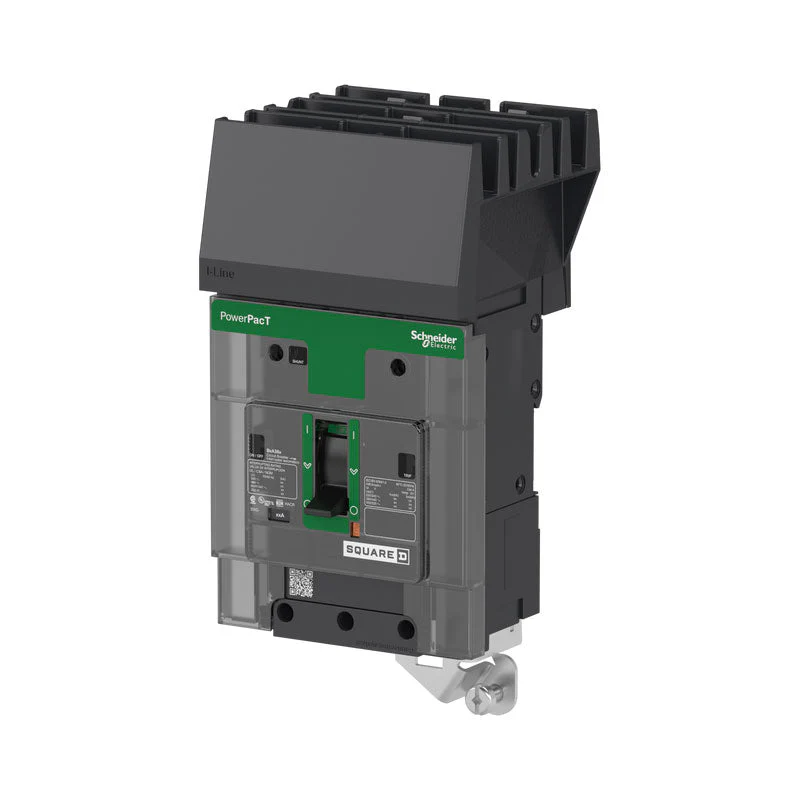

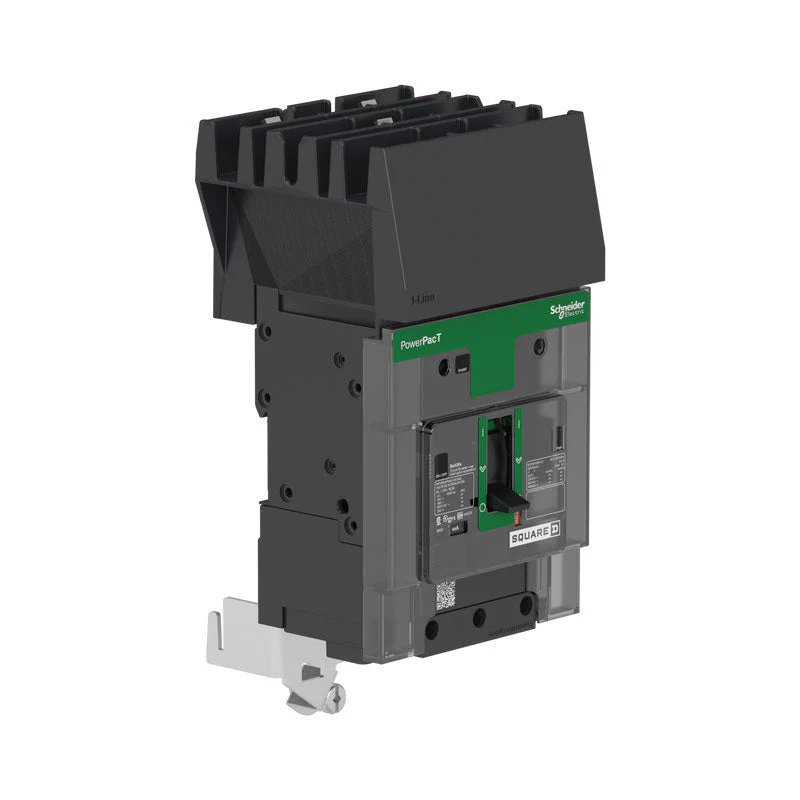

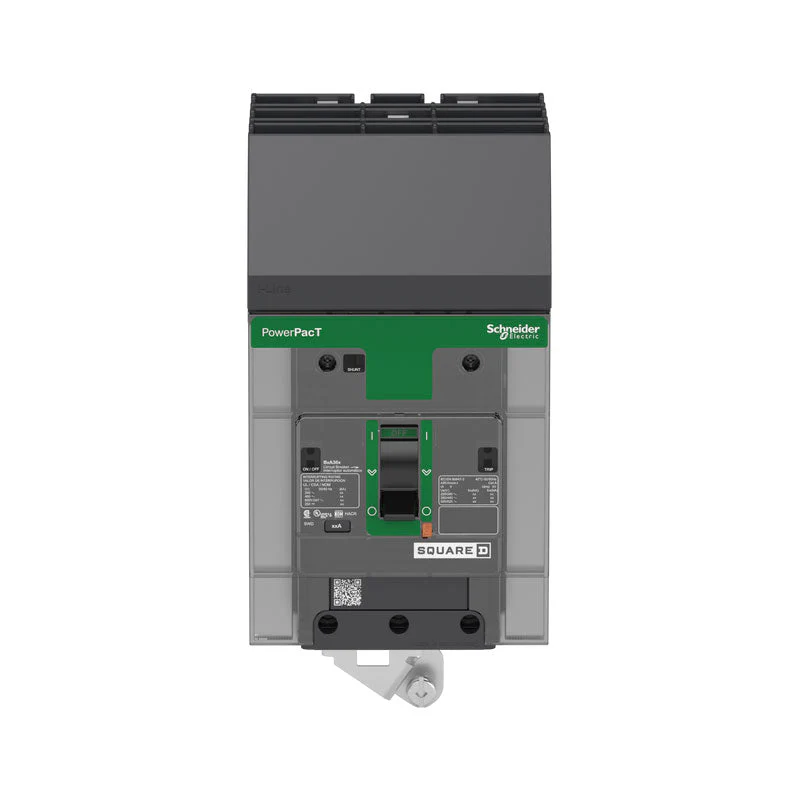

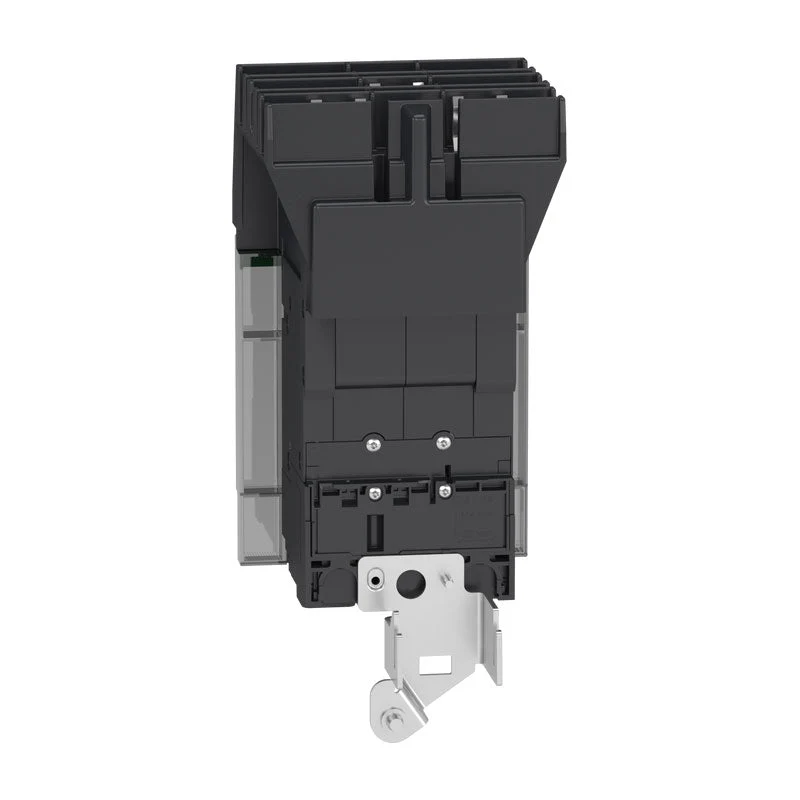

BDA36090 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - BDA36090 - Square D Molded Case Circuit Breakers

Part Number:

BDA36090
Manufacturer:

Square D
Family:

Powerpact
Pole:

3
Amp

90
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

BDA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

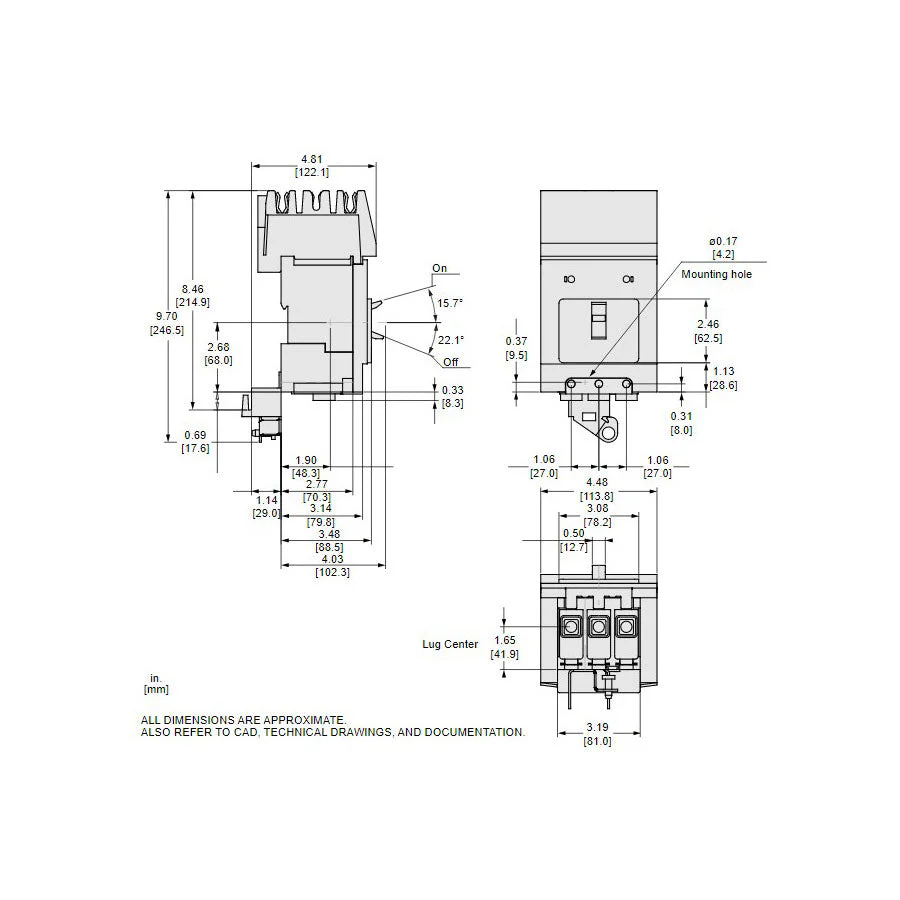

Dimensions

Dimensions (HxWxD):

5.39" x 3.19" x 3.50"

Weight:

2.90 lbs

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

90 Amp
Mounting Mode:

I-Line

Breaking Capacity Code

D
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 2/0 aluminium/copper

Standards

Product Description - BDA36090 - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BDA, 3PH, 3P, 600Y/347Vac, 90A, 18kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic, molded case circuit breakers

Documentation

Catalogue

Product Specifcation
