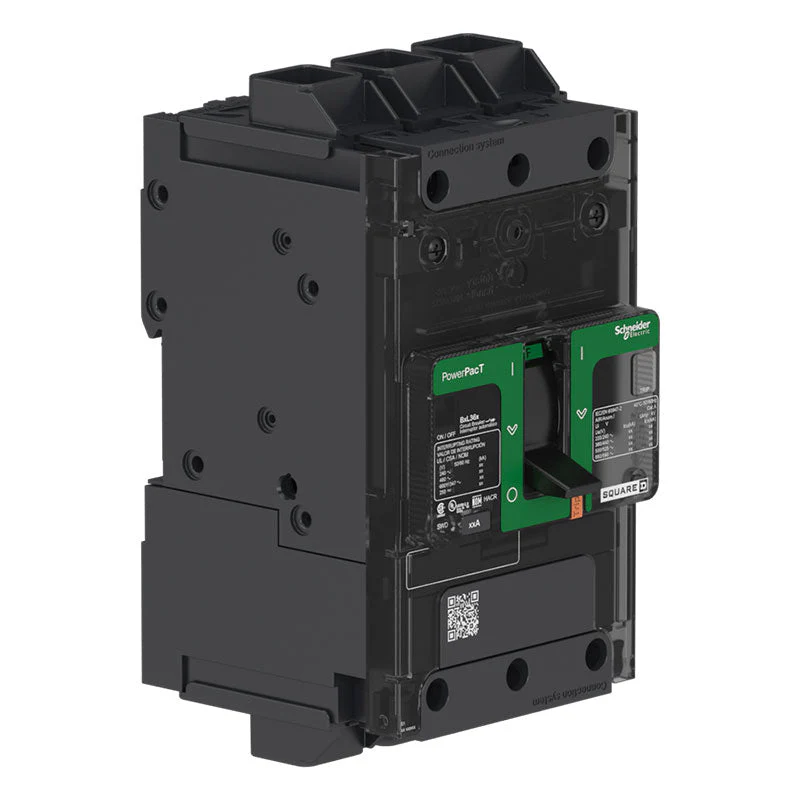

BDL36125 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - BDL36125 - Square D Molded Case Circuit Breakers

Part Number:

BDL36125
Manufacturer:

Square D
Family:

Powerpact
Pole:

3
Amp

125
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

BDL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

5.39" x 2.13" x 3.15"

Weight:

2.37 lbs

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

125 Amp
Mounting Mode:

Clip-on 35 x 15 mm symmetrical DIN rail)
By screws plate)

Breaking Capacity Code

D
Electrical Connection:

Everlink lug line / Everlink lug load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Standards

Product Description - BDL36125 - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BDL, 3PH, 3P, 600Y/347Vac, 125A, 18kA@480V, feed-thru with EverLink connectors, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals
