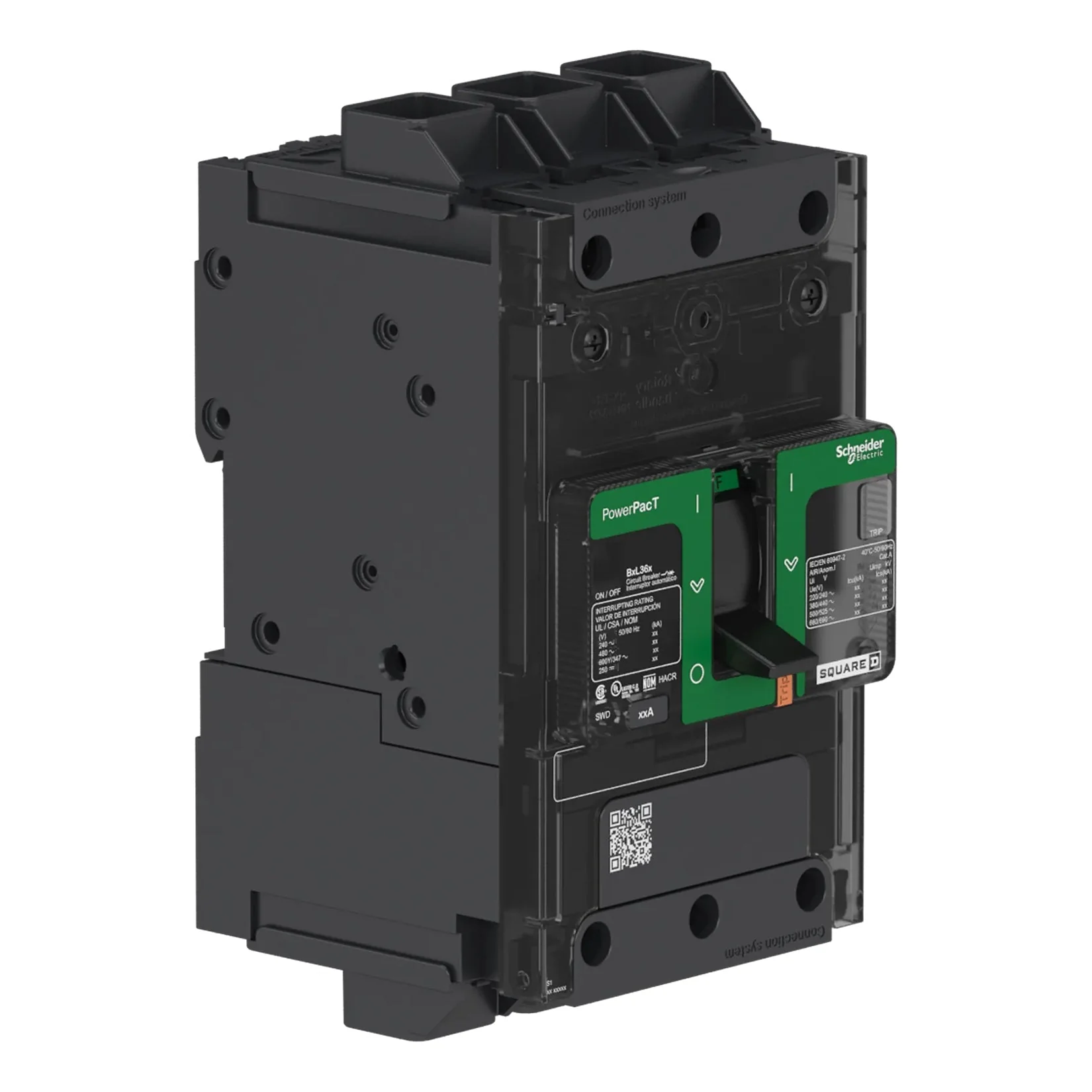

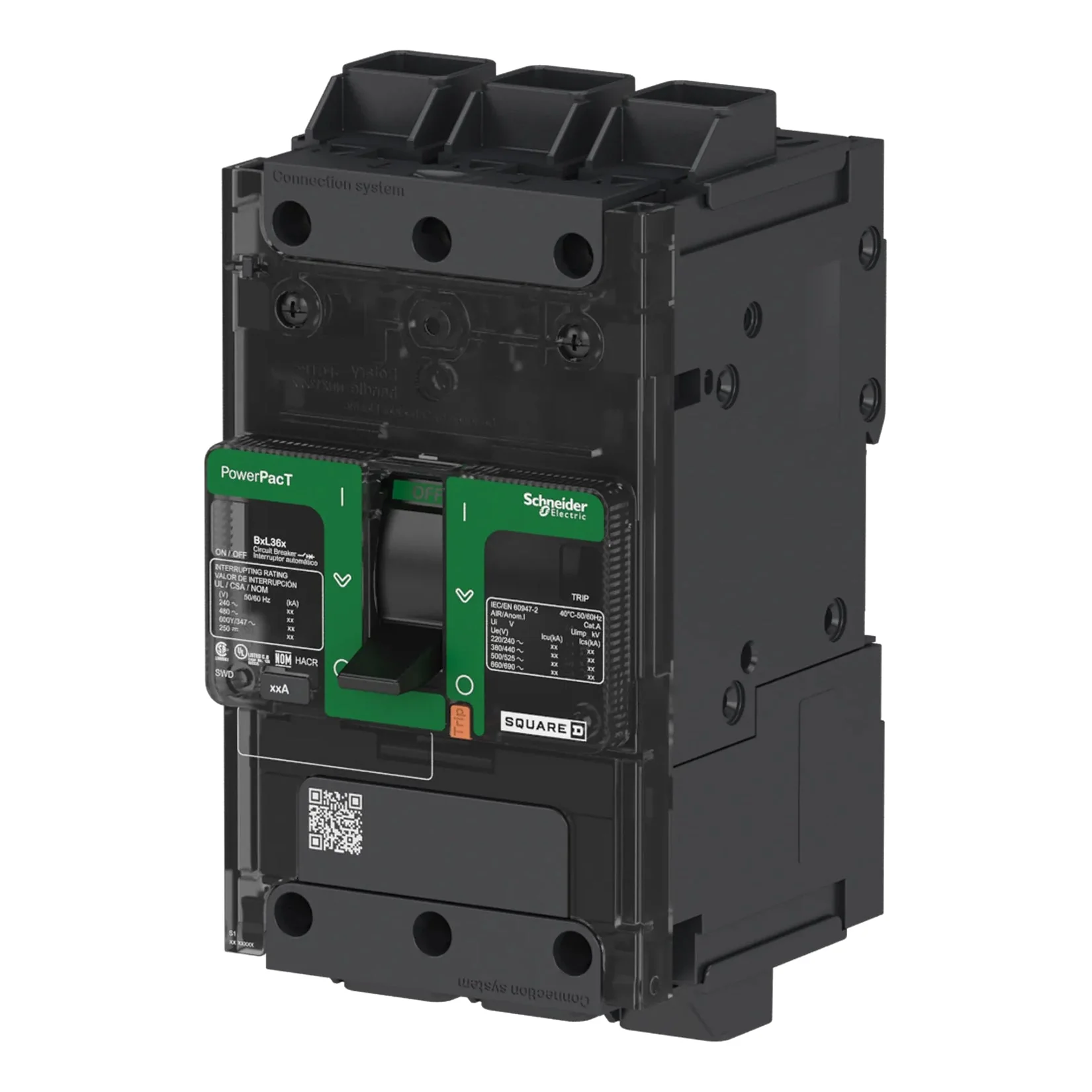

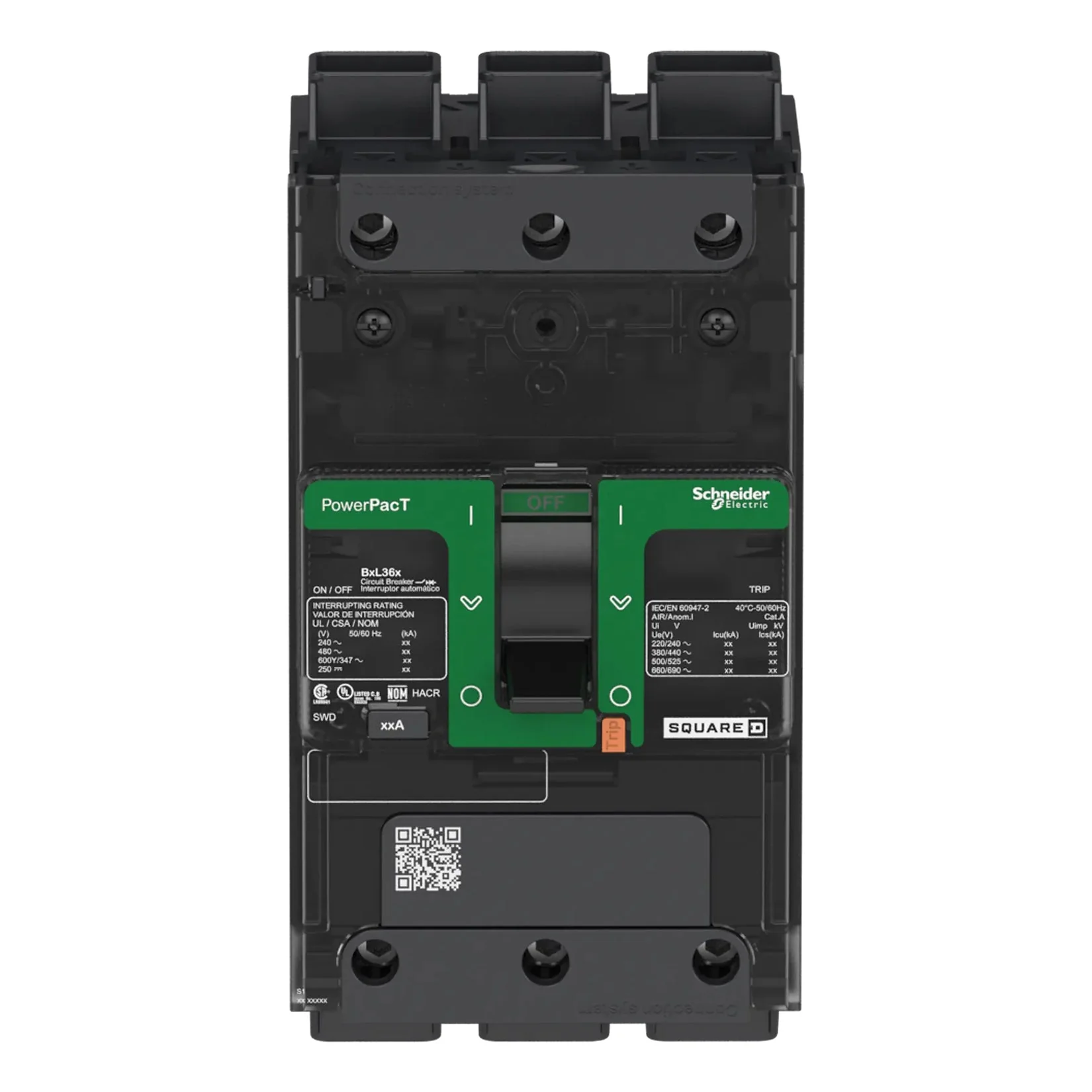

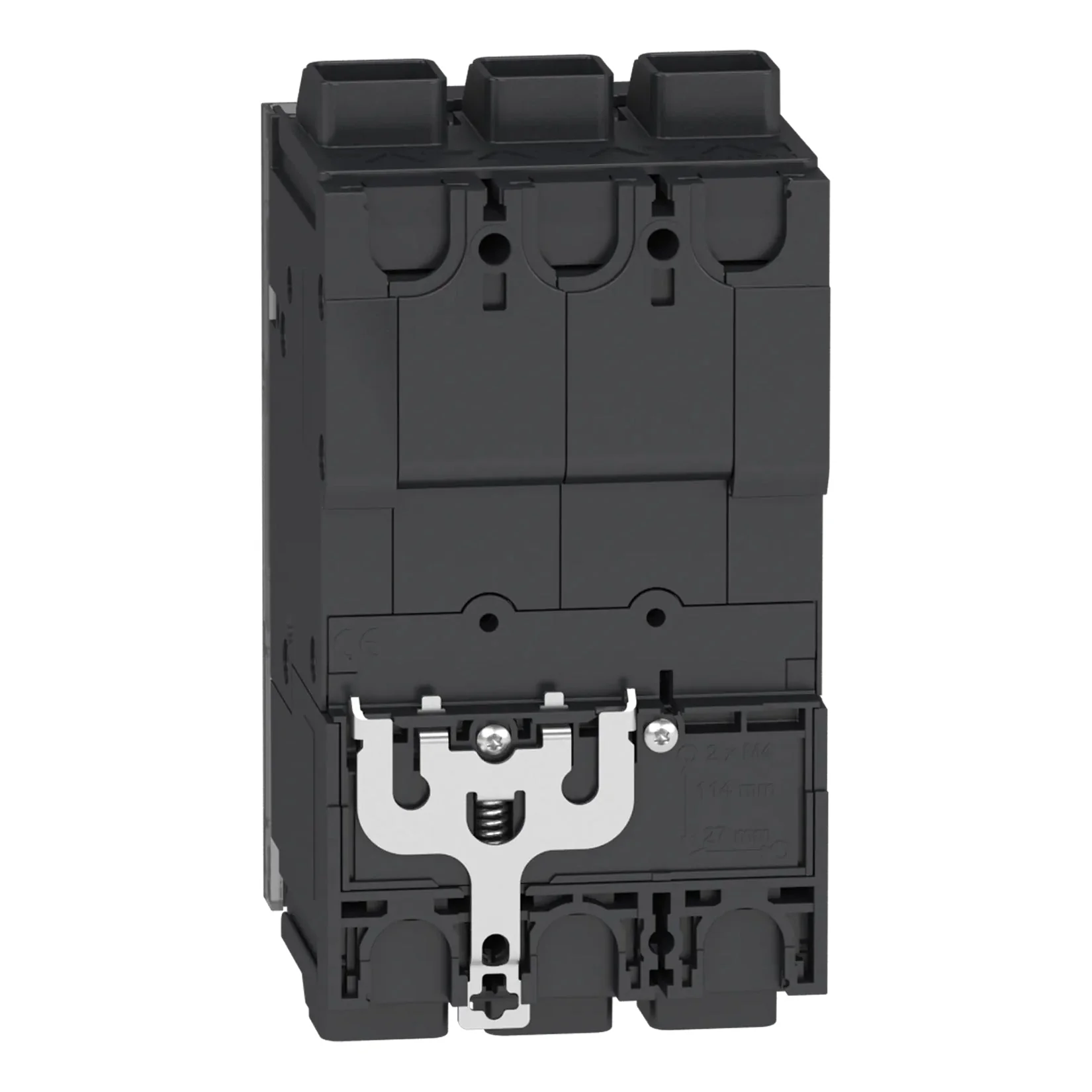

BGL36100 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - BGL36100 - Square D Molded Case Circuit Breakers

Part Number:

BGL36100
Manufacturer:

Square D
Family:

Powerpact
Pole:

3
Amp

100
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

BGL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

5.39" x 3.19" x 3.15"

Weight:

2.37 lbs

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

100 Amp
Mounting Mode:

I-Line

Breaking Capacity Code:

G
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 2/0 aluminium/copper

Standards

Product Description - BGL36100 - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BGL, 3PH, 3P, 600Y/347Vac, 100A, 35kA@480V, feed-thru with EverLink connectors, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals.

Documentation

Catalogue

Product Specifcation

Select Condition

From $999.99

BGL36100 - Square D - Molded Case Circuit Breaker—

$999.99
