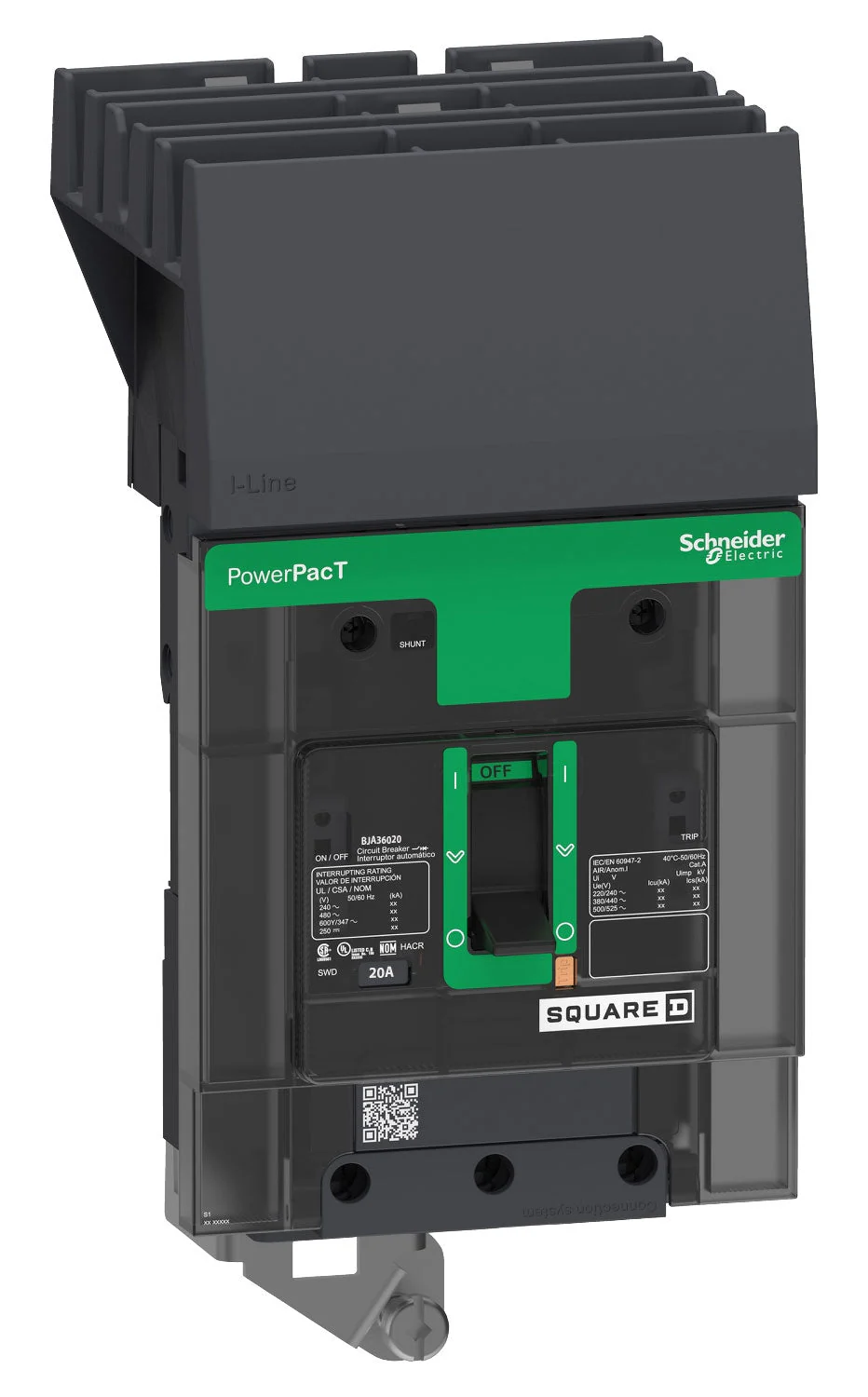

BJA36020 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - BJA36020 - Square D Molded Case Circuit Breakers

Part Number:

BJA36020
Manufacturer:

Square D
Family:

Powerpact
Pole:

3
Amp

20
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

BJA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@480V

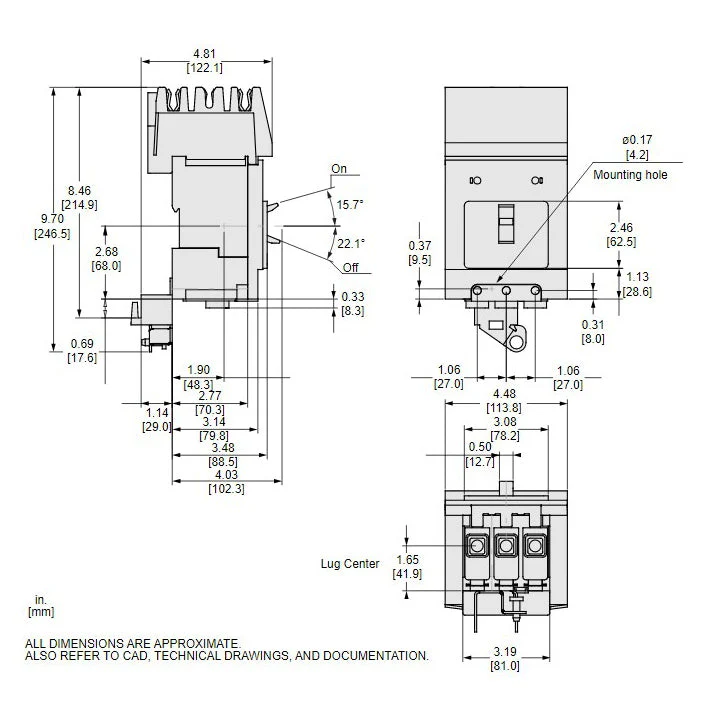

Dimensions

Dimensions (HxWxD):

4.69" x 8.11" x 12.80"

Weight:

2.90 lbs

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

20 Amp
Mounting Mode:

I-Line

Breaking Capacity Code:

G
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 2/0 aluminium/copper

Standards

Product Description - BJA36020 - Square D Molded Case Circuit Breakers

Square D,Schneider Electric, Powerpact, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic, type BJA, 3PH, 3P, 600Y/347Vac, 20A, 65kA@480V rated, i-line style plug-in with ABC phase connection, molded case circuit breakers

Documentation

Catalogue

Product Specifcation
