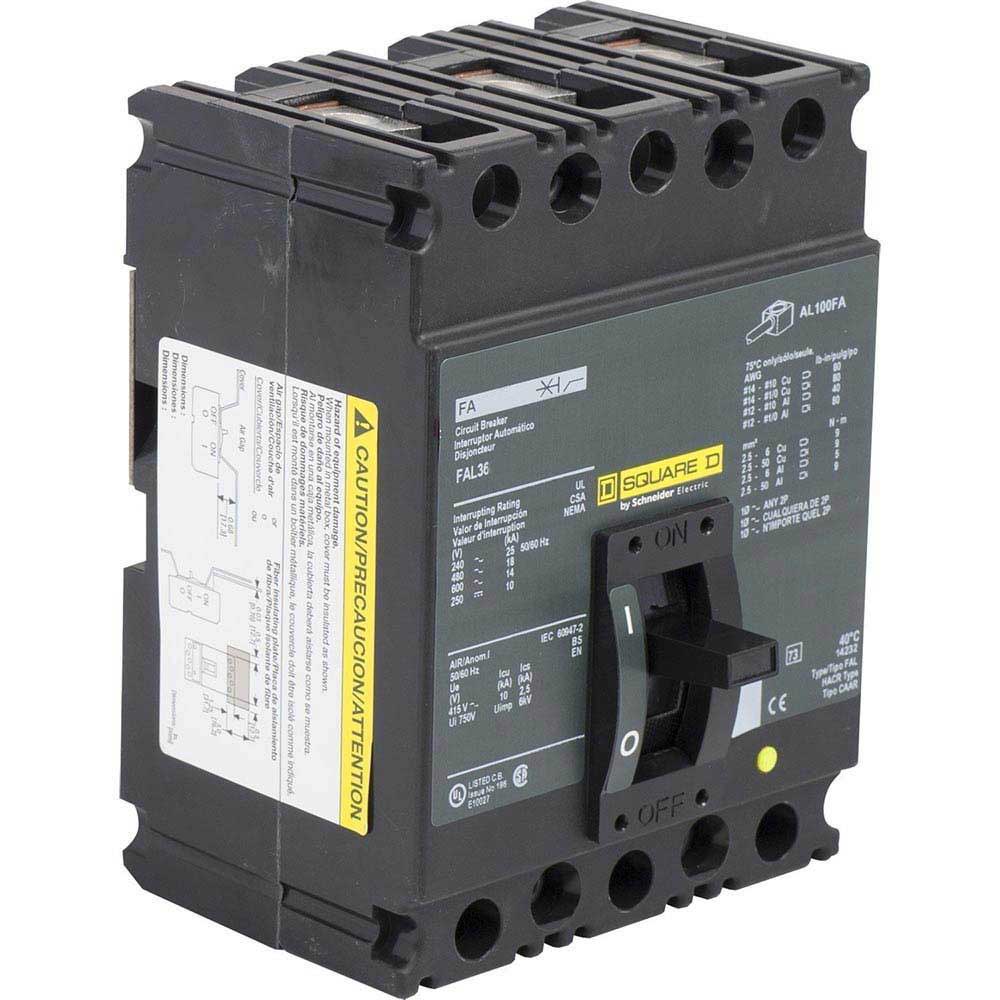

FAL36025 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - FAL36025 - Square D Powerpact Circuit Breaker
-
Part Number:
FAL36025 -
Manufacturer:
-
Family:
FAL Series -
Pole:
3 -
Amp
25 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
FAL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
6" x 4.5" x 4.13"
Â
Standards
Additional Details
-
Frame Type:
F-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
25 A -
Mounting Mode:
Unit Mount
-
Breaking Capacity Code
A -
Electrical Connection:
Lugs load / Lugs Line -
Magnetic Hold Current:
275 A
Product Description - FAL36025 - Square D Powerpact Circuit Breaker
Square D, FAL Series, type FAL, 3P, 3PH, 25A, 600V, 14kA@600V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
