FAL36070 - Square D - Molded Case Circuit Breaker

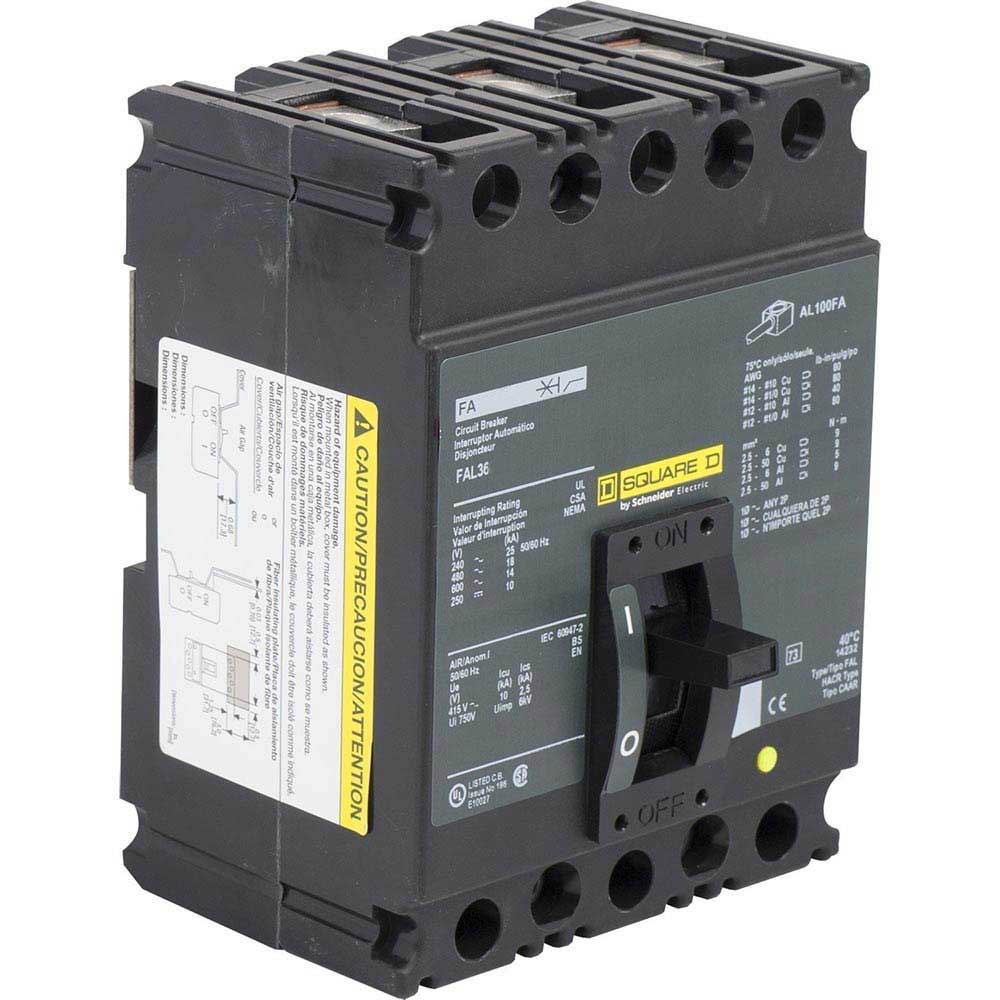

Product image 1

FAL36070 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - FAL36070 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    FAL

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    6" x 4.5" x 4.13"

  • Weight:

    4.63 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    F-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    70 A

  • Mounting Mode:

    Unit Mount

  • Breaking Capacity Code

    A

  • Electrical Connection:

    Lugs load / Lugs Line

  • Magnetic Hold Current:

    800 A

Product Description - FAL36070 - Square D Powerpact Circuit Breaker

Square D, FAL Series, type FAL, 3P, 3PH, 70A, 600V, 14kA@600V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.

Select Condition
From $73.50

Original: $244.99

-70%
FAL36070 - Square D - Molded Case Circuit Breaker—

$244.99

$73.50

Product Information

Shipping & Returns

Description

Overview

Product Specifications - FAL36070 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    FAL

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    6" x 4.5" x 4.13"

  • Weight:

    4.63 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    F-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    70 A

  • Mounting Mode:

    Unit Mount

  • Breaking Capacity Code

    A

  • Electrical Connection:

    Lugs load / Lugs Line

  • Magnetic Hold Current:

    800 A

Product Description - FAL36070 - Square D Powerpact Circuit Breaker

Square D, FAL Series, type FAL, 3P, 3PH, 70A, 600V, 14kA@600V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
