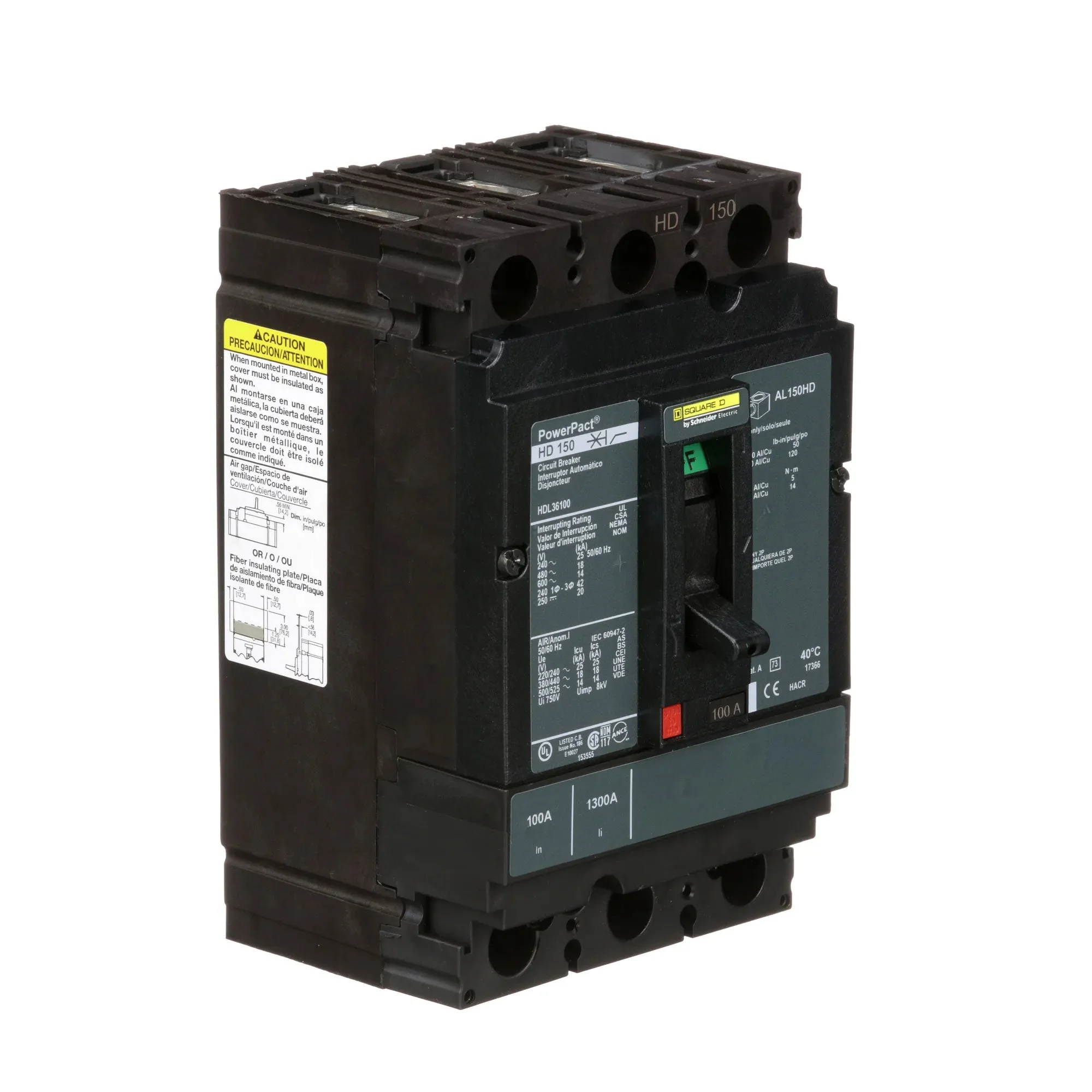

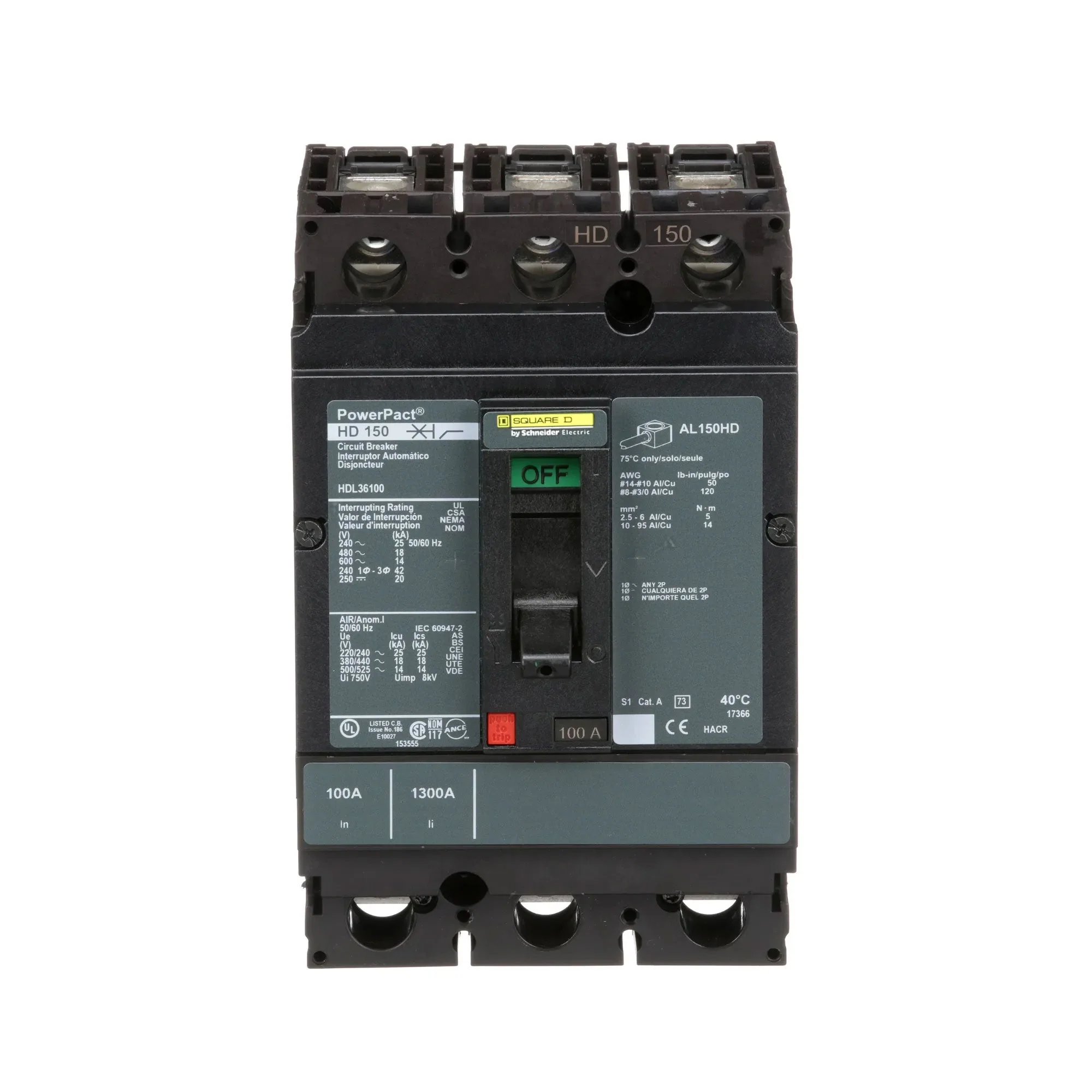

HDL36100 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - HDL36100 - Square D Powerpact Circuit Breaker

Part Number:

HDL36100
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

100
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

HDL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

6.4" x 4.12" x 4.36"

Weight:

1.86 lbs

Standards

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

100 A
Mounting Mode:

Unit mount lug

Breaking Capacity Code

D
Electrical Connection:

Lugs line / Lugs load
Magnetic Hold Current:

800 A
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HDL36100 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HDL, 3P, 3PH, 100A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
